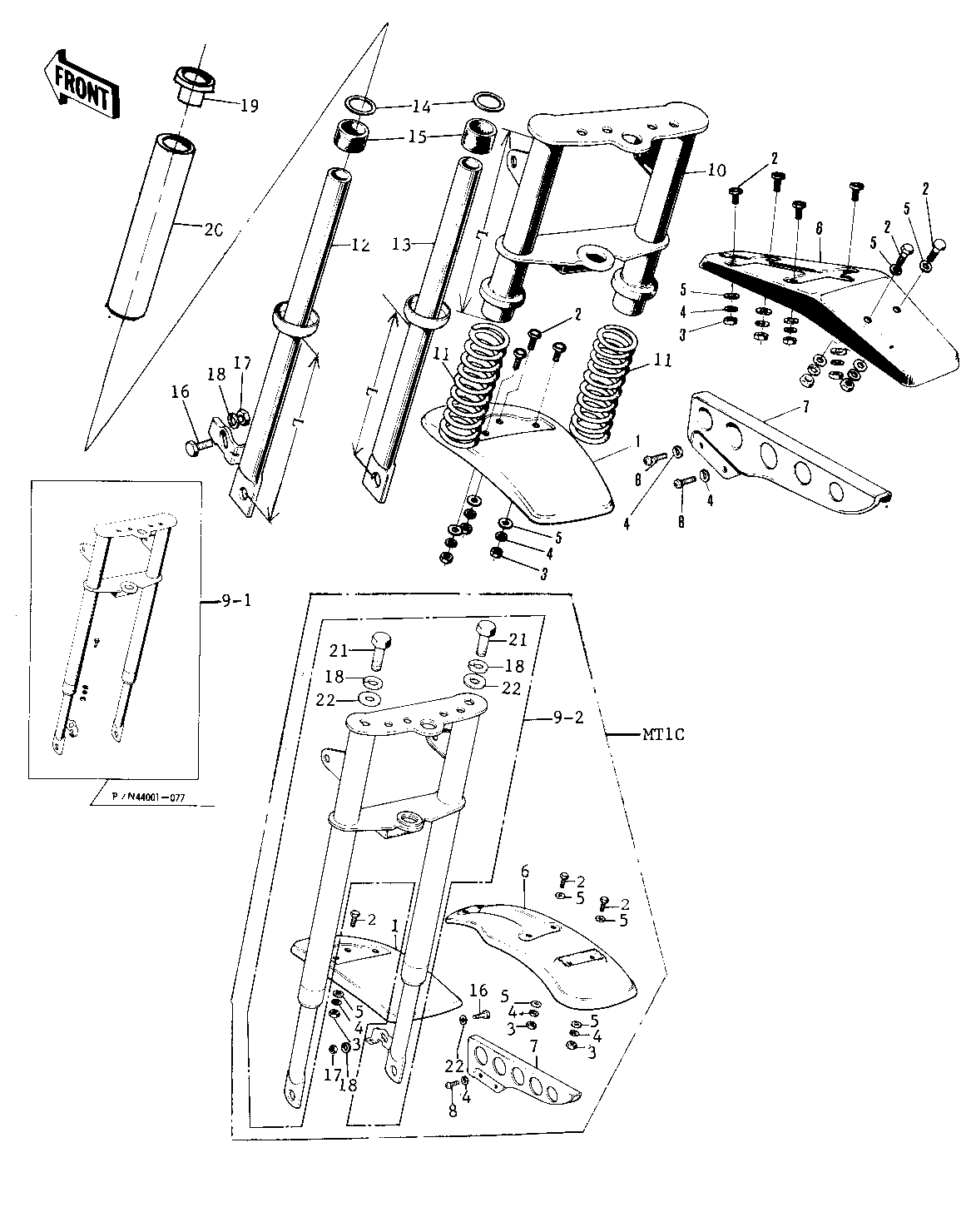

1971 Mini-Trail - FRONT FORK/FENDERS/CHAIN COVER ('71-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,GREEN 1 35004-058-54 1 MT1
FENDER-FR,B.ORANGE 1 35004-058-72 1 MT1A
FENDER-FR,C.LIME 1 35004-087-1M 1 MT1B
UNAVAILABLE IN PRICE BOOK 1 35004-087-3E 1 MT1C
BOLT-UPSET 6X14 2 112B0614 9
NUT 6MM 3 311B0600 9
WASHER SPRING 6MM 4 461F0600 11
WASHER PLAIN 5 92022-024 11
FENDER-REAR,BLACK 6 35023-011-10 1 MT1/A
FENDER-RR,C.LIME 6 35023-013-1M 1 MT1B
FENDER-RR,BLACK 6 35023-013-10 1 MT1C
CASE-CHAIN,BLACK 7 36014-036-21 1
SCREW PAN HEAD 6X10 8 220B0610 2
FRONT FORK ASSY 9 12 44001-073 1
FRONT FORK ASSY 9-1 44001-077 1 MT1A/B
FORK-FRONT 9-2 44001-159 1 MT1C
BODY-FRONT FORK 10 44047-004 1 L=260 M/M
BODY-FRONT FORK 10 44047-005 1 L=330 M/M
SPRING-FORK 11 44026-032 2
TUBE,LH,FORK OUTER 12 44005-033 1 L=157 M/M
TUBE,LH,FORK OUTER 12 44005-036 1 L=87 M/M
TUBE,RH,FORK OUTER 13 44006-032 1 L=157 M/M
TUBE,RH,FORK OUTER 13 44006-034 1 L=87 M/M
GUIDE-FORK SPRING 14 44028-020 2
DAMPER RUBBER-FORK 15 92075-071 2
BOLT-UPSET,10X20 16 112B1020 1
NUT,10MM 17 314B1000 1
NUT,10MM 17 314B1000 1 MT1C
WASHER SPRING 10MM 18 461F1000 1 3 REQ FOR
BUSH,SHORT 19 44065-002 2
BUSH-LONG 20 44065-003 2
BOLT,HEX HEAD,10X25 21 113N1025 2 MT1C
WASHER PLAIN 10MM 22 411B1000 3 MT1C
FENDER-FR,GREEN 1 35004-058-54 1 MT1
FENDER-FR,B.ORANGE 1 35004-058-72 1 MT1A
FENDER-FR,C.LIME 1 35004-087-1M 1 MT1B
UNAVAILABLE IN PRICE BOOK 1 35004-087-3E 1 MT1C
BOLT-UPSET 6X14 2 112B0614 9
NUT 6MM 3 311B0600 9
WASHER SPRING 6MM 4 461F0600 11
WASHER PLAIN 5 92022-024 11
FENDER-REAR,BLACK 6 35023-011-10 1 MT1/A
FENDER-RR,C.LIME 6 35023-013-1M 1 MT1B
FENDER-RR,BLACK 6 35023-013-10 1 MT1C
CASE-CHAIN,BLACK 7 36014-036-21 1
SCREW PAN HEAD 6X10 8 220B0610 2
FRONT FORK ASSY 9 12 44001-073 1
FRONT FORK ASSY 9-1 44001-077 1 MT1A/B
FORK-FRONT 9-2 44001-159 1 MT1C
BODY-FRONT FORK 10 44047-004 1 L=260 M/M
BODY-FRONT FORK 10 44047-005 1 L=330 M/M
SPRING-FORK 11 44026-032 2
TUBE,LH,FORK OUTER 12 44005-033 1 L=157 M/M
TUBE,LH,FORK OUTER 12 44005-036 1 L=87 M/M
TUBE,RH,FORK OUTER 13 44006-032 1 L=157 M/M
TUBE,RH,FORK OUTER 13 44006-034 1 L=87 M/M
GUIDE-FORK SPRING 14 44028-020 2
DAMPER RUBBER-FORK 15 92075-071 2
BOLT-UPSET,10X20 16 112B1020 1
NUT,10MM 17 314B1000 1
NUT,10MM 17 314B1000 1 MT1C
WASHER SPRING 10MM 18 461F1000 1 3 REQ FOR MT1C
BUSH,SHORT 19 44065-002 2
BUSH-LONG 20 44065-003 2
BOLT,HEX HEAD,10X25 21 113N1025 2 MT1C
WASHER PLAIN 10MM 22 411B1000 3 MT1C
