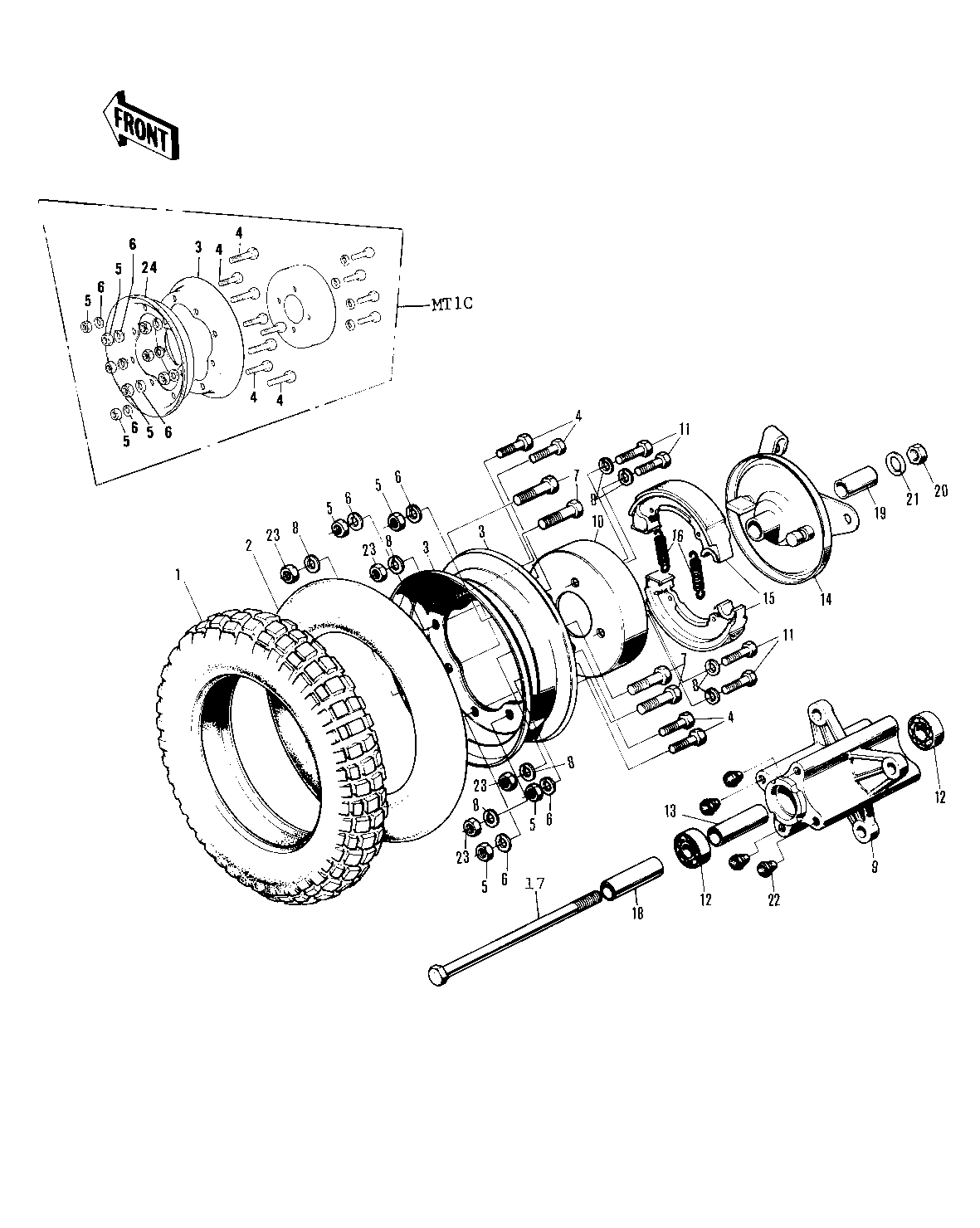

1971 Mini-Trail - FRONT WHEEL/TIRE/HUB/BRAKE ('71-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41021-015 | 1 | ||
| TUBE 350-8 | 2 | 41022-037 | 1 | ||
| RIM 2.50-8 | 3 | 41025-047 | 2 | ||
| RIM,2.50-8 | 3 | 41025-081 | 1 | MT1C WITH VALVE HOLE | |
| BOLT SMALL | 4 | 114G0812 | 4 | ||
| BOLT,HEX HEAD,10X16 | 4 | 113G1016 | 4 | MT1C | |
| NUT,8MM | 5 | 311B0800 | 4 | ||
| NUT,10MM | 5 | 314B1000 | 4 | MT1C | |
| WASHER SPRING 8MM | 6 | 461F0800 | 4 | ||
| WASHER SPRING 10MM | 6 | 461F1000 | 4 | MT1C | |
| BOLT,HEX HEAD,10X25 | 7 | 113G1025 | 4 | ||
| WASHER SPRING 10MM | 8 | 461F1000 | 8 | ||
| DRUM ASSY-REAR BRAKE | 8 13 | 42005-025 | 1 | ||
| DRUM-BRAKE | 10 | 41054-003 | 1 | ||
| BOLT-HEX HEAD,10X28 | 11 | 92001-017 | 4 | ||
| BEARING-BALL #6201Z | 12 | 601B6201Z | 2 | ||
| SPACER-BEARING | 13 | 42010-020 | 1 | ||
| PANEL ASSY-FRNT BRAKE | 14 16 | 41035-031 | 1 | ||
| SHOE,BRAKE | 15,16 | 41048-1010 | 1 | ||
| SPRING-BRAKE SHOE | 16 | 41049-009 | 2 | ||
| AXLE-FRONT | 17 | 41068-033 | 1 | ||
| COLLAR-FRONT AXLE,R.H | 18 | 41069-013 | 1 | ||
| COLLAR-FRONT AXLE,L.H | 19 | 41069-014 | 1 | ||
| NUT-HEX-FINE | 20 | 314B1200 | 1 | ||
| WASHER SPRING 12MM | 21 | 461F1200 | 1 | ||
| PLUG RUBBER | 22 | 92074-005 | 4 | ||
| NUT,10MM | 23 | 314B1000 | 4 | ||
| RIM,2.50-8 | 24 | 41025-082 | 1 | MT1C |
