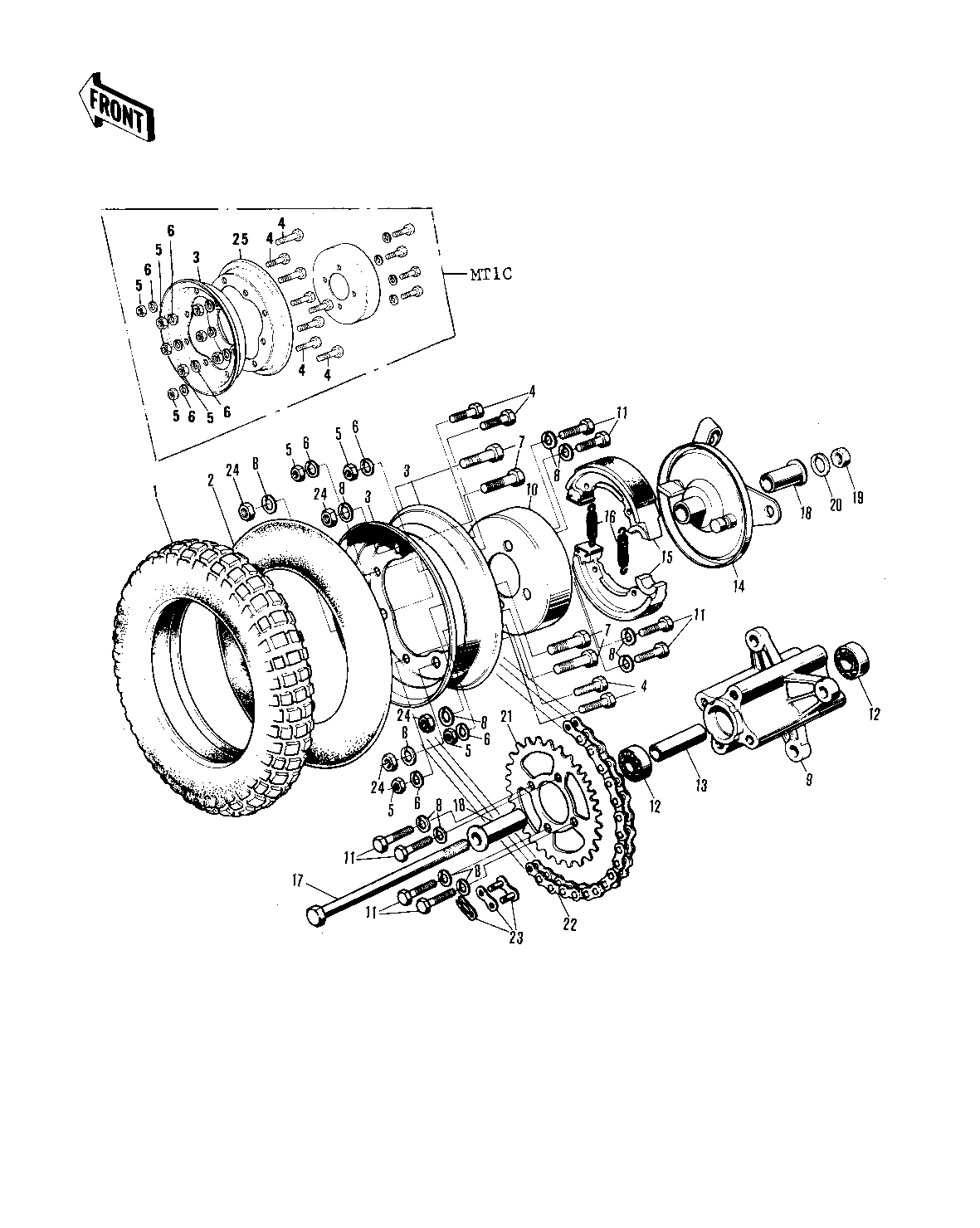

1971 Mini-Trail - REAR WHEEL/TIRE/HUB/BRAKE/CHAIN ('71-'75

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 41021-015 1
TUBE 350-8 2 41022-037 1
RIM 2.50-8 3 41025-047 2
RIM,2.50-8 3 41025-081 1 MT1C WITH VALVE HOLE
BOLT SMALL 4 114G0812 4
BOLT,HEX HEAD,10X16 4 113G1016 4 MT1C
NUT,8MM 5 311B0800 4
NUT,10MM 5 314B1000 4 MT1C
WASHER SPRING 8MM 6 461F0800 4
WASHER SPRING 10MM 6 461F1000 4 MT1C
BOLT,HEX HEAD,10X25 7 113G1025 4
WASHER SPRING 10MM 8 461F1000 12
DRUM ASSY-REAR BRAKE 8 13 42005-025 1
DRUM-BRAKE 10 41054-003 1
BOLT-HEX HEAD,10X28 11 92001-017 8
BEARING-BALL #6201Z 12 601B6201Z 2
SPACER-BEARING 13 42010-020 1
PANEL-ASY,RR BRK 14 16 42006-056 1
PANEL-ASY,RR BRK 14 16 42006-056 1 MT1C
SHOE,BRAKE 15,16 41048-1010 1
SPRING-BRAKE SHOE 16 41049-009 2
AXLE-REAR 17 42031-028 1
COLLAR-REAR AXLE 18 42032-029 2
NUT-HEX-FINE 19 314B1200 1
WASHER SPRING 12MM 20 461F1200 1
REAR SPROCKET 33T 21 42041-086 1 33 TEETH
DR CHAIN 420X88 22 92057-1006 1
CHAIN JOINT 420 23 92058-003 1
NUT,10MM 24 314B1000 4
RIM,2.50-8 25 41025-082 1 MT1C
