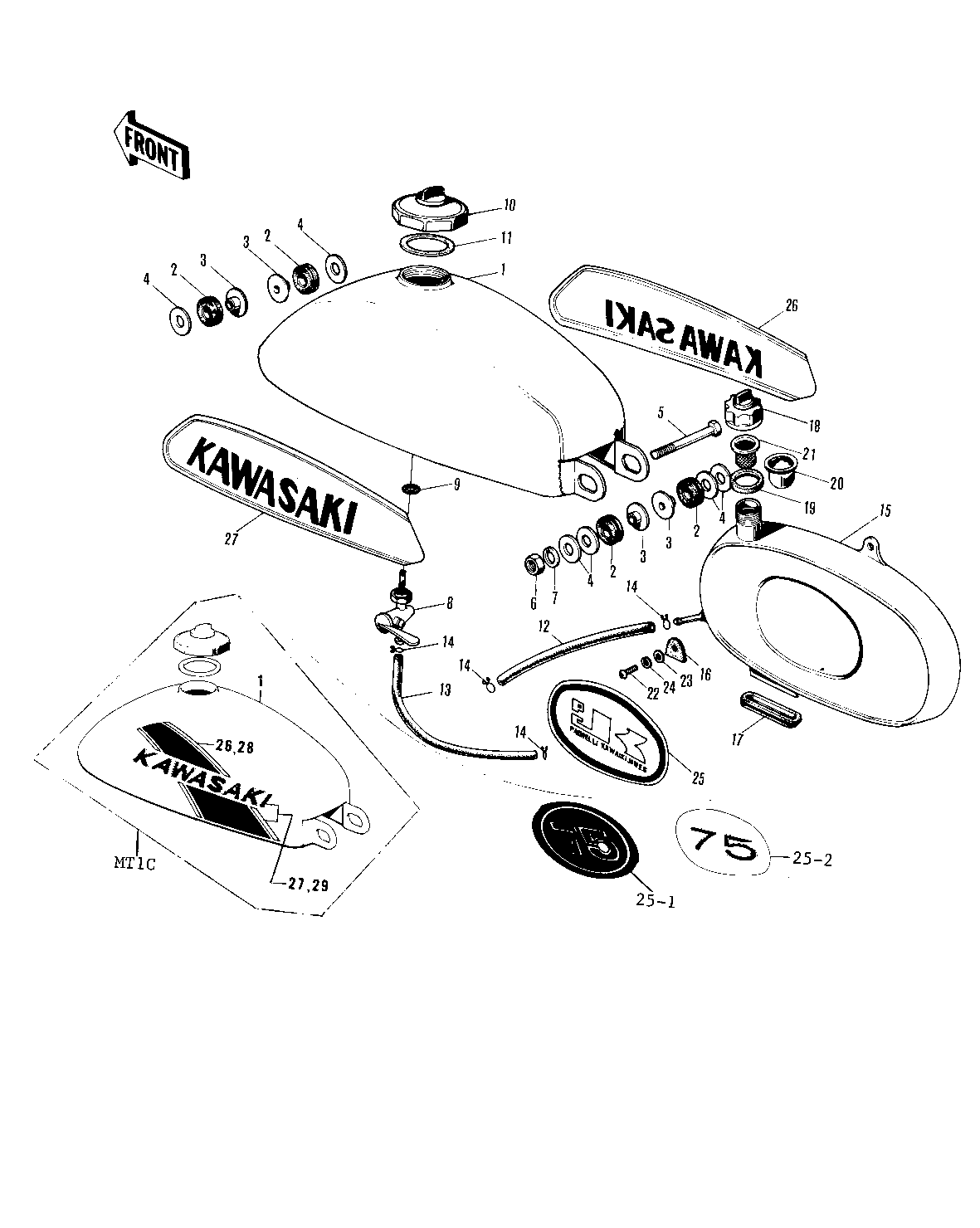

1974 MT1B - FUEL TANK/OIL TANK/LABELS ('71-'75)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TANK-FUEL,GREEN | 1 | 51001-064-54 | MT1 | ||
TANK-FUEL,B.ORANGE | 1 | 51001-064-72 | MT1A | ||
TANK-FUEL,C.LIME | 1 | 51001-064-1M | MT1B | ||
TANK-FUEL,V.YELLOW | 1 | 51001-064-3E | MT1C | ||
DAMPER RUBB TANK FRNT | 2 | 92075-019 | |||
COLLAR | 3 | 92027-080 | |||
WASHER,8X26X2.3 | 4 | 92022-1564 | |||
BOLT,HEX HEAD,8X85 | 5 | 92001-1226 | |||
NUT,8MM | 6 | 311B0800 | |||
WASHER SPRING 8MM | 7 | 461F0800 | |||
COCK ASSY,FUEL | 8 | 51023-030 | |||
COCK ASSY,FUEL | 8 | 51023-030 | MT1C | ||
GASKET-FUEL COCK JONT | 9 | 92065-075 | |||
CAP-FUEL TANK | 10 | 51048-005 | |||
GASKET FUEL TANK CAP | 11 | 51059-003 | |||
GASKET,FUEL TANK CAP | 11 | 51059-006 | MT1C | ||
PIPE-OIL | 12 | 92059-072 | |||
TUBE | 13 | 92059-074 | |||
CLAMP FUEL PIPE | 14 | 92037-010 | |||
TANK-OIL | 15 | 52001-023 | MT1 | ||
TANK-OIL,B.ORANGE | 15 | 52001-023-72 | MT1A | ||
TANK,OIL,C.LIME | 15 | 52001-023-1M | MT1B | ||
TANK,OIL,T.YELLOW | 15 | 52001-023-3E | MT1C | ||
PLATE-OIL TANK | 16 | 52016-001 | |||
DAMPER RUBBER | 17 | 92075-070 | |||
CAP-OIL TANK | 18 | 52002-002 | |||
GASKET-OIL TANK CAP | 19 | 92065-079 | |||
CASE-TANK CAP RUBBER | 20 | 52004-007 | |||
RUBBER-OIL TANK CAP | 21 | 52004-008 | |||
WASHER PLAIN 6MM | 23 | 410B0600 | |||
WASHER SPRING 6MM | 24 | 461F0600 | |||
EMBLEM-OIL TANK | 25 | 56018-059 | MT1 | ||
EMBLEM,OIL TANK | 25-1 | 56018-159 | MT1A/B | ||
EMBLEM, OIL TANK | 25-2 | 56018-187 | MT1C | ||
EMBLEM-L.H FUEL TANK | 26 | 56013-025 | |||
EMBLEM-R.H FUEL TANK | 27 | 56014-019 | |||
DECAL,L.H FL TK,UPPER | 28 | 56027-221-SP | MT1C | ||
DECAL,L.H FL TK,LOWER | 29 | 56027-222-SP | MT1C | ||
DECAL,R.H FL TK,UPPER | 30 | 56027-223-SP | MT1C | ||
DECAL,R.H FL TK,LOWER | 31 | 56027-224-SP | MT1C |
