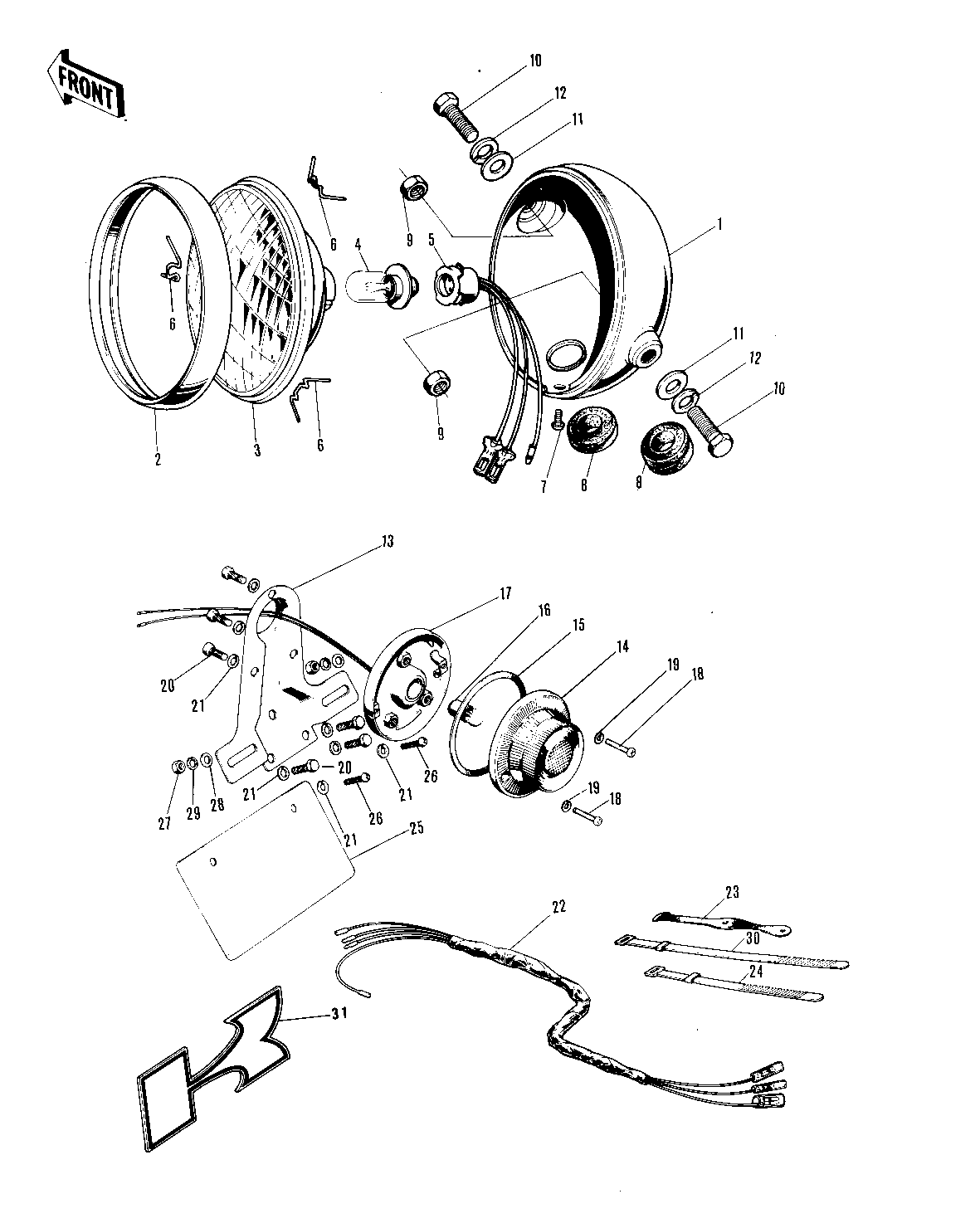

1971 Mini-Trail - HEADLIGHT/TAILLIGHT/CHASSIS ELECTRICAL E

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BODY,HD LIGHT,FL BLCK 1 23005-1006-21 1
LAMP UNIT-HEAD 2 7 23004-023 1
RIM,HEAD LAMP 2 23006-043 1
LENS UNIT-HEAD LAMP 3 23007-010 1
BULB 6V 25/25W 4 92069-031 1
SOCKET HEAD LAMP 5 23008-009 1
CLAMP,HEAD LAMP LENS 6 23009-014 3
SCREW OVL CNTSNK 5X8 7 222E0508A 1
GROMMET WIRING HARNES 8 23023-007 2
NUT 10MM 9 92016-027 2
BOLT-UPSET,10X20 10 112B1020 2
WASHER PLAIN 10MM 11 411B1000 2
WASHER SPRING 10MM 12 461F1000 2
BKT-TAIL LAMP,BLACK 13 35028-005-10 1
LAMP ASSY-TAIL 14 19 23025-035 1
LENS-TAIL LAMP 14 23026-009 1
GASKET-TAIL LAMP LENS 15 23028-012 1
BULB 6V 10/3W 16 92069-020 1
SOCKET-TAIL LAMP 17 23027-025 1
SCREW-PAN HEAD,4X10 18 220E0410A 2
WASHER SPRING 4MM 19 461F0400 2
BOLT-UPSET,6X12 20 112G0612 6
WASHER SPRING 6MM 21 461F0600 6
WIRING HARNESS,MAIN 22 26001-057 1
BAND RUBBER 23 92072-018 3
BAND,SHORT 24 92072-030 4
BRACKET-LICENCE PLATE 25 35027-006 1
SCREW PAN HEAD 6X12 26 220B0612 2
NUT 6MM 27 311B0600 2
WASHER PLAIN 6MM 28 410B0600 4
WASHER SPRING 6MM 29 461F0600 2
BAND,LONG 30 92072-032 1
EMBLEM,LICNSE PLT BKT 31 56018-176 1 MT1C
