Parts Diagrams |

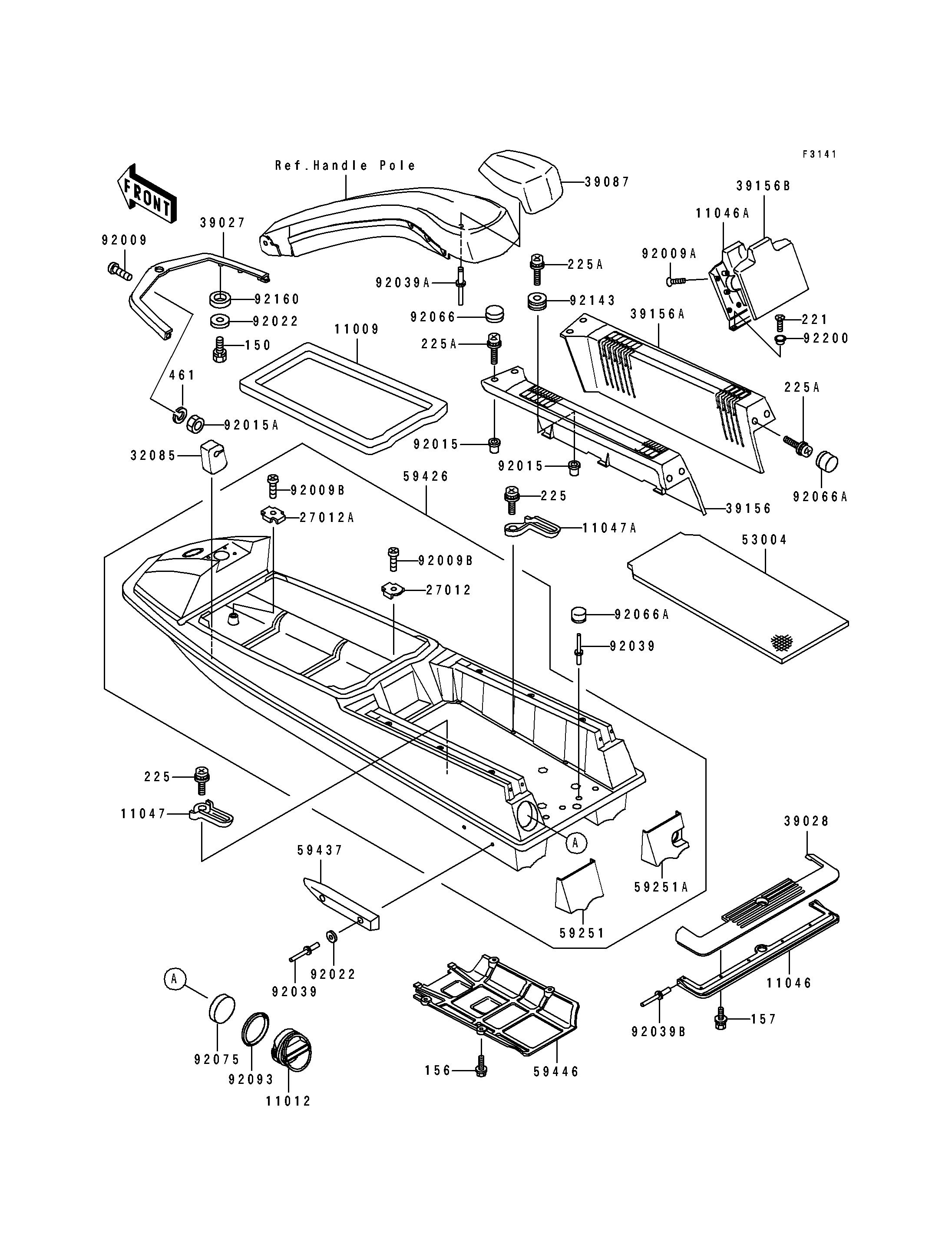

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,ENGINE HOOD | 11009 | 92065-539 | 1 | ||
CAP,FIRE EXTINGUISHER | 11012 | 11012-3741 | 1 | ||
BRACKET,REAR BUMPER | 11046 | 11046-3829 | 1 | ||
BRACKET,CONTROL PANEL COVER | 11046A | 11046-3835 | 1 | ||
BRACKET,DECK,PAD,LH | 11047 | 11047-3703 | 3 | ||
BRACKET,DECK,PAD,RH | 11047A | 11047-3704 | 3 | ||
HOOK | 27012 | 27012-501 | 5 | ||
HOOK | 27012A | 27012-502 | 2 | ||
DETENT | 32085 | 59346-504 | 3 | ||
BUMPER-FRONT | 39027 | 39027-3704 | 1 | ||
BUMPER-REAR | 39028 | 39028-3705 | 1 | ||
PAD-HANDLE,POLE | 39087 | 39087-3701 | 1 | ||
PAD,DECK,LH | 39156 | 39156-3731 | 1 | ||
PAD,DECK,RH | 39156A | 39156-3732 | 1 | ||
PAD,CONTROL PANEL COVER | 39156B | 39156-3733 | 1 | ||
MAT,DECK | 53004 | 53004-3731 | 1 | ||
HULL,LH,EXTENSION,JET WHITE | 59251 | 59251-3006-8C | 1 | ||
HULL,RH,EXTENSION,JET WHITE | 59251A | 59251-3713-8C | 1 | ||
HULL-COMP,JET WHITE | 59426 | 59426-3744-8C | 1 | ||
STABILIZER | 59437 | 59437-3002 | 2 | ||
COVER-JET PUMP | 59446 | 59446-3711 | 1 | ||
SCREW,5X22 | 92009 | 92009-3761 | 6 | ||
SCREW,4X8 | 92009A | 92009-3770 | 10 | ||
SCREW | 92009B | 92011-561 | 9 | ||
NUT | 92015 | 92015-1700 | 14 | ||
NUT,FLANGED,5MM | 92015A | 92015-3768 | 6 | ||
WASHER,5X16X1.5 | 92022 | 92022-3041 | 14 | ||
RIVET | 92039 | 92039-3002 | 8 | ||
RIVET | 92039A | 92039-3712 | 6 | ||
RIVET | 92039B | 92039-3733 | 2 | ||
PLUG | 92066 | 92066-3731 | 4 | ||
PLUG | 92066A | 92066-3734 | 8 | ||
DAMPER | 92075 | 92075-3719 | 1 | ||
SEAL,OSR70X82X7.5 | 92093 | 92093-3704 | 1 | ||
COLLAR | 92143 | 92143-3711 | 6 | ||
DAMPER | 92160 | 92160-3754 | 10 | ||
WASHER | 92200 | 92200-3706 | 2 | ||
BOLT-WS,5X12 | 150 | 150R0512 | 10 | ||
BOLT-WP,6X25 | 156 | 156R0625 | 4 | ||
BOLT-WSP,5X20 | 157 | 157R0520 | 8 | ||
SCREW-CSK-CROS,6X16 | 221 | 221R0616 | 2 | ||
SCREW-PAN-WSP-CROS,6X16 | 225 | 225R0616 | 6 | ||
SCREW-PAN-WSP-CROS,6X25 | 225A | 225R0625 | 14 | ||
WASHER-SPRING,5MM | 461 | 461S0500 | 6 |
GASKET,ENGINE HOOD | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,FIRE EXTINGUISHER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,REAR BUMPER | |
REF # | 11046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CONTROL PANEL COVER | |
REF # | 11046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,DECK,PAD,LH | |
REF # | 11047 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BRACKET,DECK,PAD,RH | |
REF # | 11047A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DETENT | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BUMPER-FRONT | |
REF # | 39027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUMPER-REAR | |
REF # | 39028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-HANDLE,POLE | |
REF # | 39087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,DECK,LH | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,DECK,RH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,CONTROL PANEL COVER | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,DECK | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HULL,LH,EXTENSION,JET WHITE | |
REF # | 59251 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HULL,RH,EXTENSION,JET WHITE | |
REF # | 59251A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HULL-COMP,JET WHITE | |
REF # | 59426 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STABILIZER | |
REF # | 59437 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER-JET PUMP | |
REF # | 59446 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,5X22 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,4X8 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,5X16X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,OSR70X82X7.5 | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-WS,5X12 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-WP,6X25 | |
REF # | 156 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-WSP,5X20 | |
REF # | 157 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X16 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS,6X16 | |
REF # | 225 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS,6X25 | |
REF # | 225A |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
WASHER-SPRING,5MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
