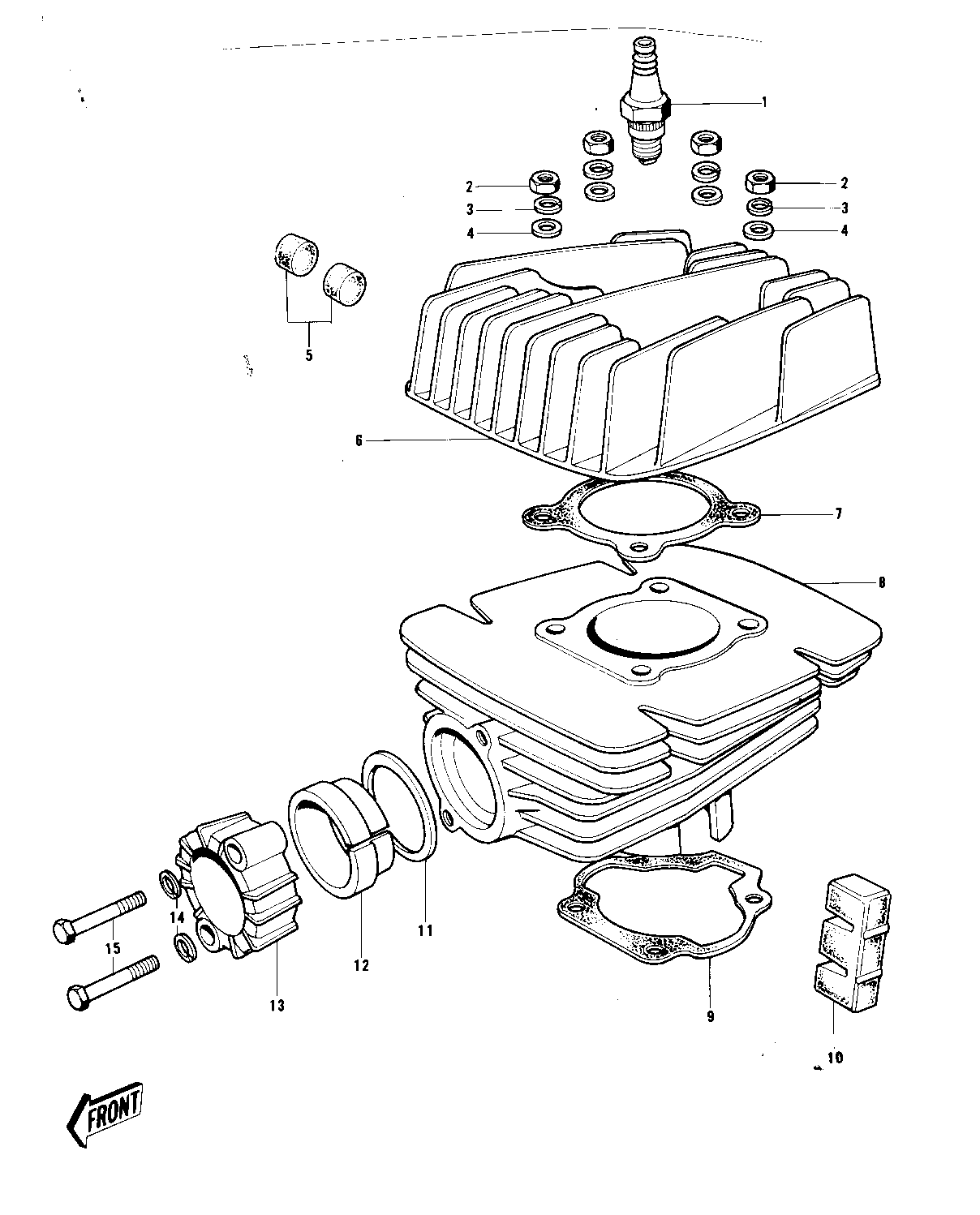

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUG B7HS 1 B7HS 1
NUT,8MM 2 311B0800 4
WASHER SPRING 8MM 3 461F0800 4
WASHER PLAIN 8MM 4 411B0800 4
DAMPER RUBBER-CYL HD 5 92075-117 13
CYLINDER HEAD 6 11001-085 1
GASKET CYLINDER HEAD 7 11004-015 1
CYLINDER,BLACK 8 11005-152-10 1 BLACK
GASKET,CYLINDER BASE 9 11060-1200 1
DAMPER RUBBER-CYLNDER 10 92075-142 2
GASKET,EXHAUST PIPE H 11 11009-1866 1
INSERT-EXHAUST HOLDER 12 18070-005 1
HOLDER,EX PIPE,BLACK 13 18069-035-21 1 FLAT BLACK
WASHER SPRING 6MM 14 461F0600 2
BOLT-UPSET,6X35 15 112G0635 2
