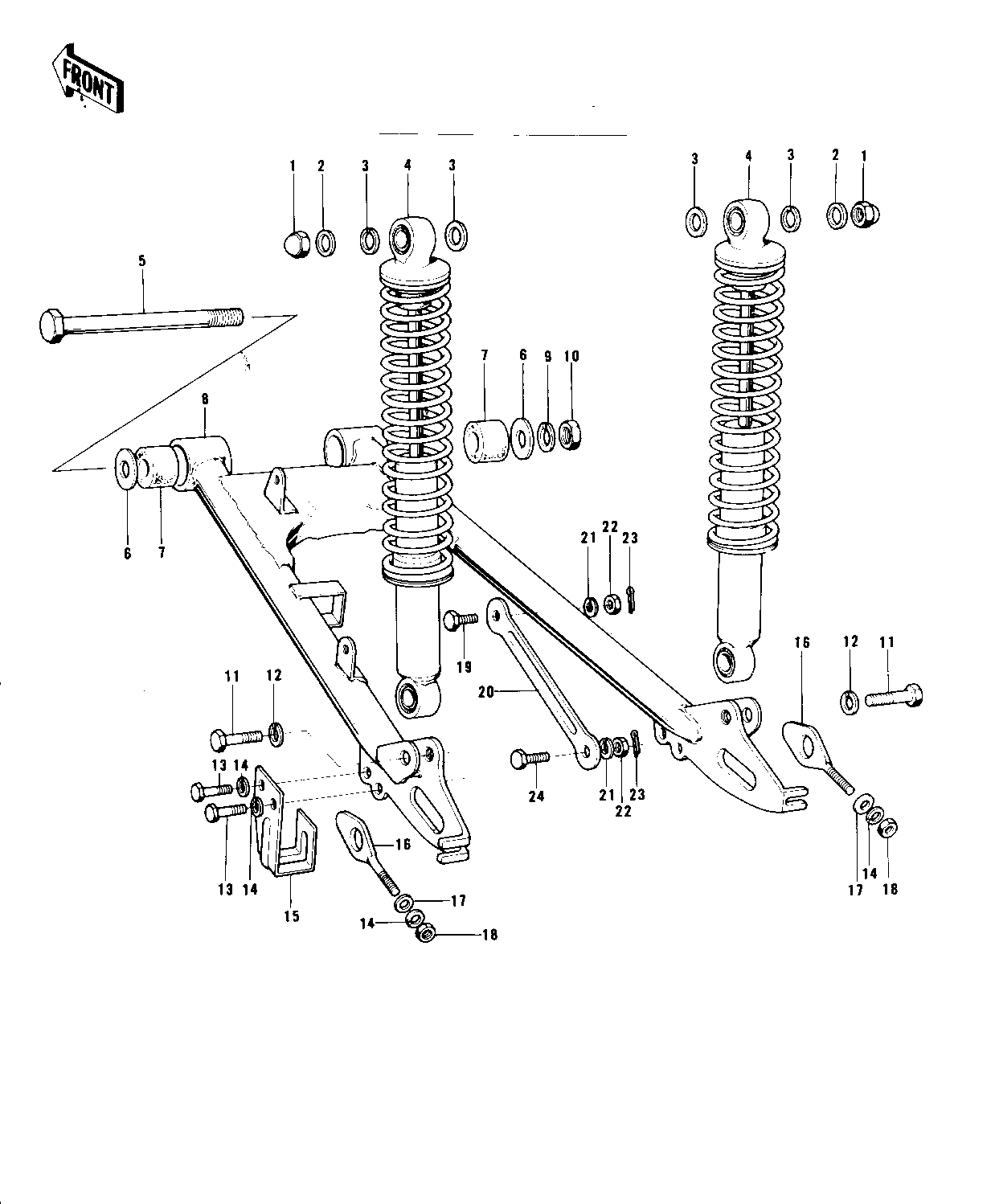

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT 12MM | 1 | 92020-014 | |||
WASHER SPRING 12MM | 2 | 461F1200 | |||
WASHER PLAIN 12MM | 3 | 410B1200 | |||
SHOCK ABSBR RR | 4 | 45014-100 | |||
SHAFT,SWING ARM PIVOT | 5 | 33032-043 | |||
WASHER PLAIN 12MM | 6 | 410B1200 | |||
BUSH SWING ARM SHAFT | 7 | 92092-005 | |||
ARM,SWINGING | 8 | 33001-055 | |||
WASHER SPRING 12MM | 9 | 461F1200 | |||
NUT-HEX-FINE | 10 | 314B1200 | |||
BOLT HEX HEAD 10X28 | 11 | 113N1028 | |||
WASHER SPRING 10MM | 12 | 461F1000 | |||
BOLT-UPSET 6X14 | 13 | 112B0614 | |||
WASHER SPRING 6MM | 14 | 461F0600 | |||
GUARD,CHAIN | 15 | 55020-012 | |||
ADJUSTER CHAIN | 16 | 33040-008 | |||
WASHER PLAIN | 17 | 92022-024 | |||
NUT 6MM | 18 | 311B0600 | (4 REQ KD80-A2) | ||
BOLT TORQUE LINK FIT | 19 | 92003-017 | |||
TORQUE LINK,RR BRAKE | 20 | 43007-037 | |||
WASHER SPRING 10MM | 21 | 461F1000 | |||
NUT,10MM | 22 | 314B1000 | |||
PIN COTTER 2.0X15 | 23 | 550D2015 | |||
BOLT HEX HEAD 10X25 | 24 | 92003-003 |
NUT 12MM | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 12MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 12MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SHOCK ABSBR RR | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SHAFT,SWING ARM PIVOT | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 12MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BUSH SWING ARM SHAFT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
ARM,SWINGING | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 12MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT-HEX-FINE | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT HEX HEAD 10X28 | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
ADJUSTER CHAIN | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | (4 REQ KD80-A2) |
BOLT TORQUE LINK FIT | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
TORQUE LINK,RR BRAKE | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN COTTER 2.0X15 | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT HEX HEAD 10X25 | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
