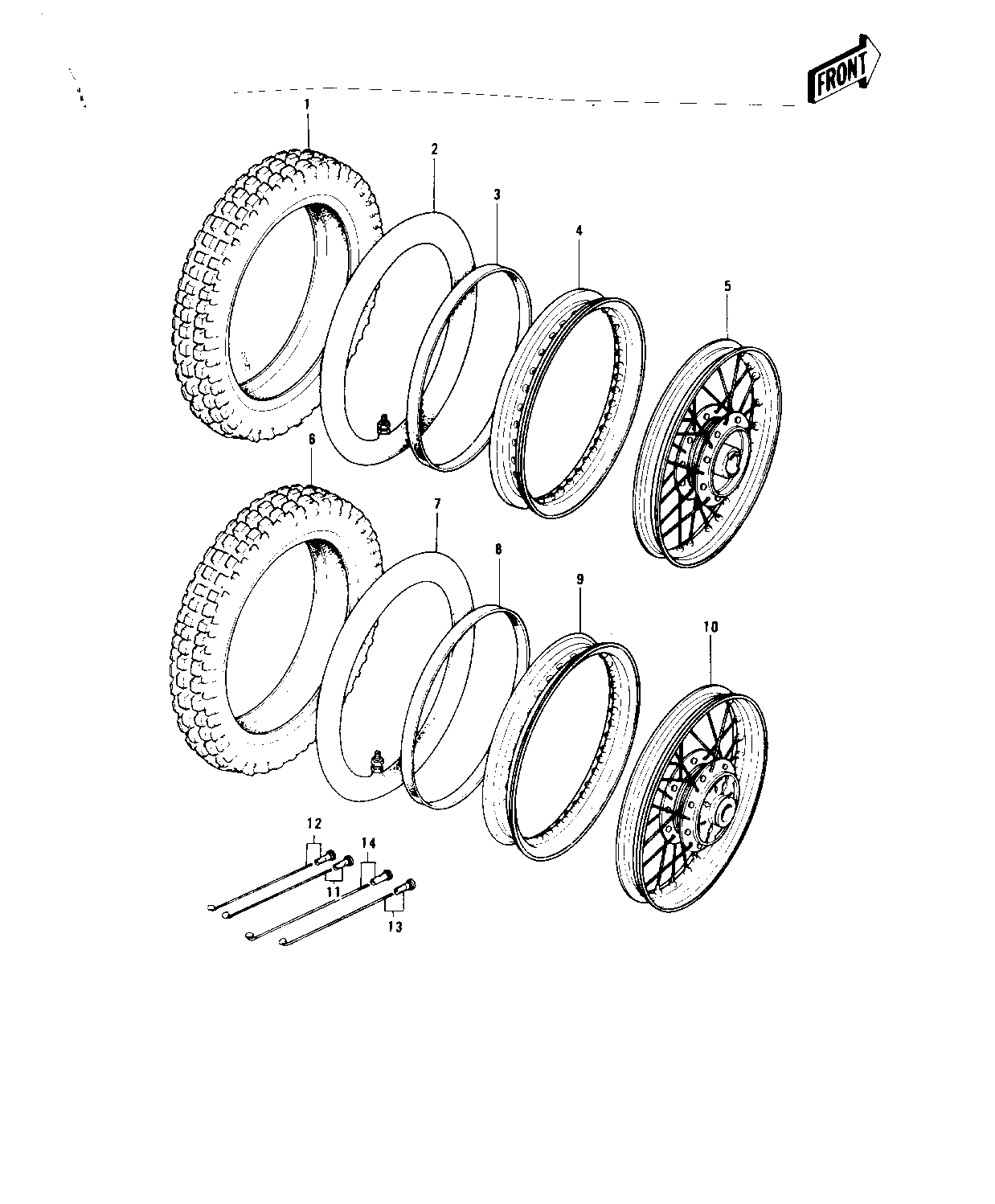

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
*** N.L.A.*** (Canada) 1 41017-014 1
TUBE 225/250-16 2 41022-041 1
BAND,RIM,FRONT 3 41023-024 1
RIM,1.40X16W 4 41025-069 1
WHEEL ASSY,FRONT 5 41074-041 1
TIRE 275-14 K250 R 6 41002-1271 1
TUBE 275/410/425-14 7 41022-042 1
BAND,RIM,4.10-14 8 41023-1025 1
RIM,1.60X14W 9 41025-070 1
WHEEL ASSY,REAR 10 41073-5017 1
SPOKE-ASY,FR INNER 11 41027-065 18
SPOKE-ASY FR OUTER 12 41028-065 18
SPOKE-ASY,RR INNER 13 41027-066 18
SPOKE-ASY RR OUTER 14 41028-066 18
