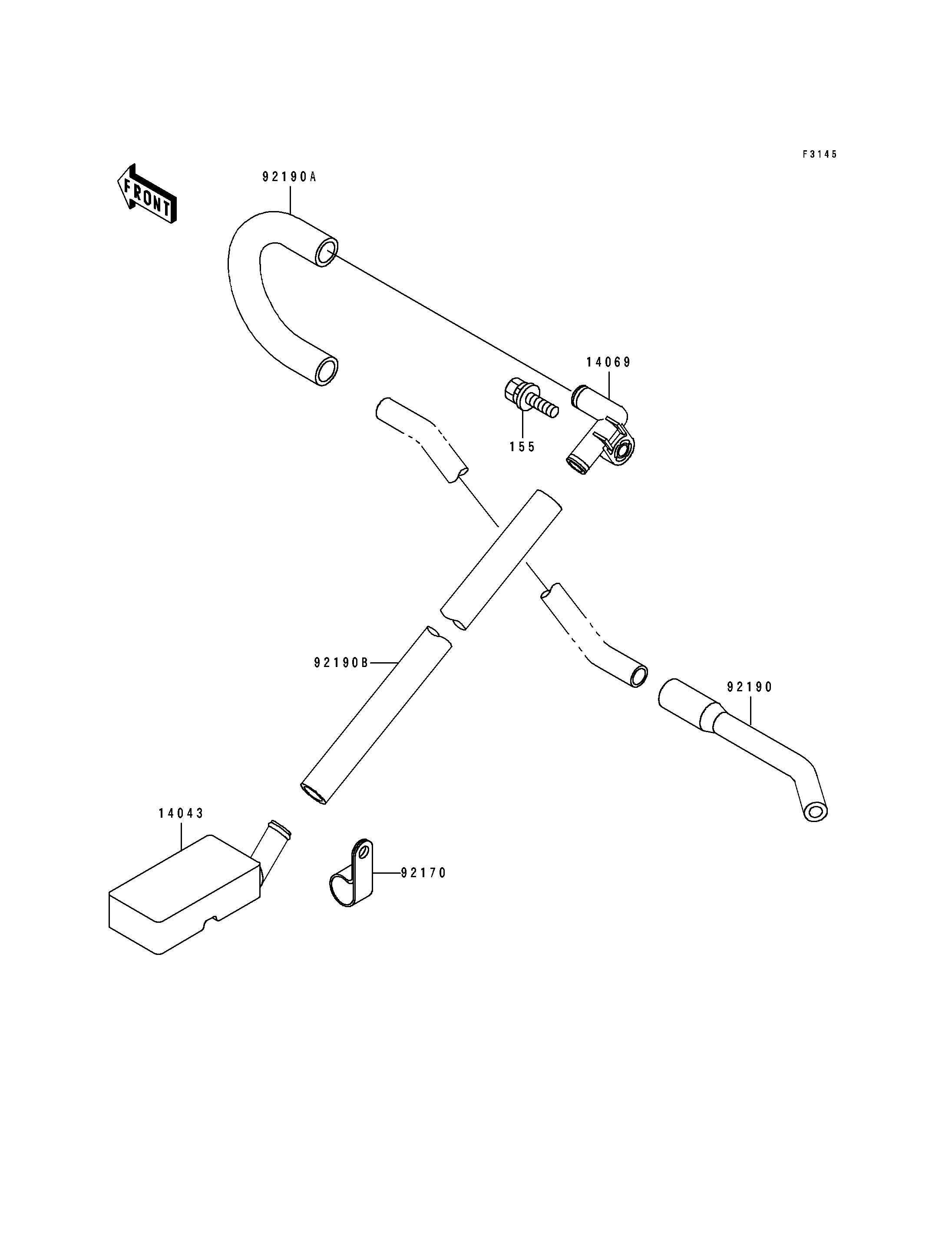

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER,BILGE 14043 14043-3703 1
BREATHER,BILGE 14069 14069-3705 1
CLAMP 92170 92170-3704 1
TUBE,HULL-PUMP 92190 92190-3711 1
TUBE 92190A 92190-3713 1
TUBE,15.5X21.5X260 92190B 92190-3720 1
BOLT-WSP-SMALL,8X25 155 155R0825 1
