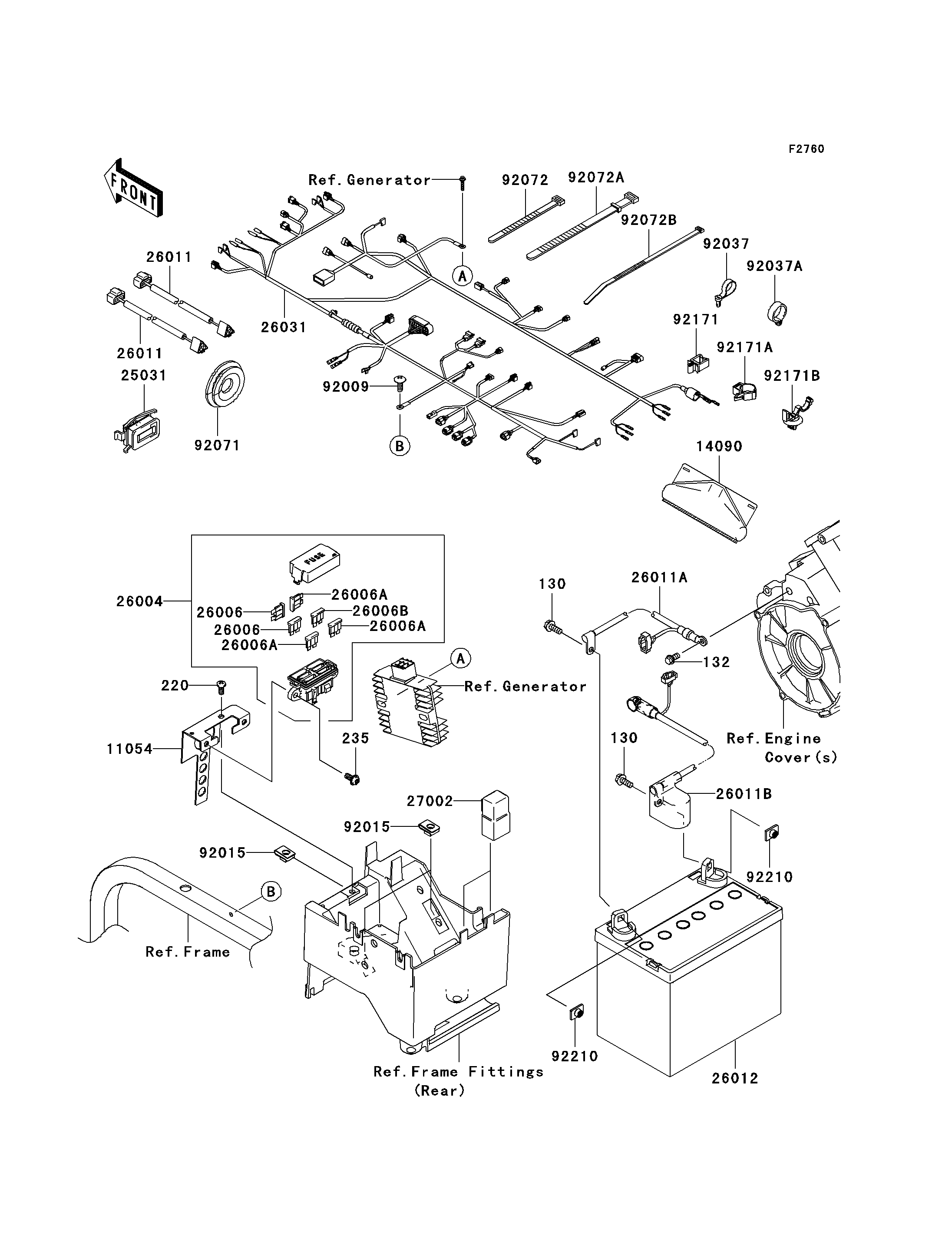

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
220
235
11054
14090
25031
26004
26006
26006
26006A
26006A
26006A
26006B
26011
26011
26011A
26011B
26012
26031
27002
92009
92015
92015
92037
92037A
92071
92072
92072A
92072B
92171
92171A
92171B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED-SMALL,6X12 132 132BD0612 1
SCREW-PAN-CROSS,6X12 220 220AA0612 1
SCREW-PAN-WP-CROS,6X14 235 235AA0614 2
BRACKET,FUSE ASSY 11054 11054-1068 1
COVER,COUPLER 14090 14090-1331 1
METER-ASSY,HOUR 25031 25031-7506 1
FUSE-ASSY 26004 26004-0015 1
FUSE,30A 26006 26006-0004 2
FUSE,10A 26006A 26006-0005 3
FUSE,5A 26006B 26006-1082 1
WIRE-LEAD,HEAD LAMP 26011 26011-0143 2
WIRE-LEAD,BATTERY(-) 26011A 26011-0181 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0190 1
BATTERY 26012 26012-0107 1
HARNESS,MAIN 26031 26031-0664 1
RELAY-ASSY 27002 27002-1088 2
SCREW,TAPPING,6X16 92009 92009-1166 1
NUT,6MM 92015 92015-1602 3
CLAMP,SPEED,L=58 92037 92037-1163 5
CLAMP,HOSE 92037A 92037-1827 1
GROMMET 92071 92071-0030 1
BAND,L=123 92072 92072-030 1
BAND,L=186 92072A 92072-056 1
BAND,L=292.1 92072B 92072-3509 26
CLAMP 92171 92171-0290 2
CLAMP,BRAKE HOSE 92171A 92171-0316 7
CLAMP 92171B 92171-0453 5
NUT,PLATE,6MM 92210 92210-1352 2
