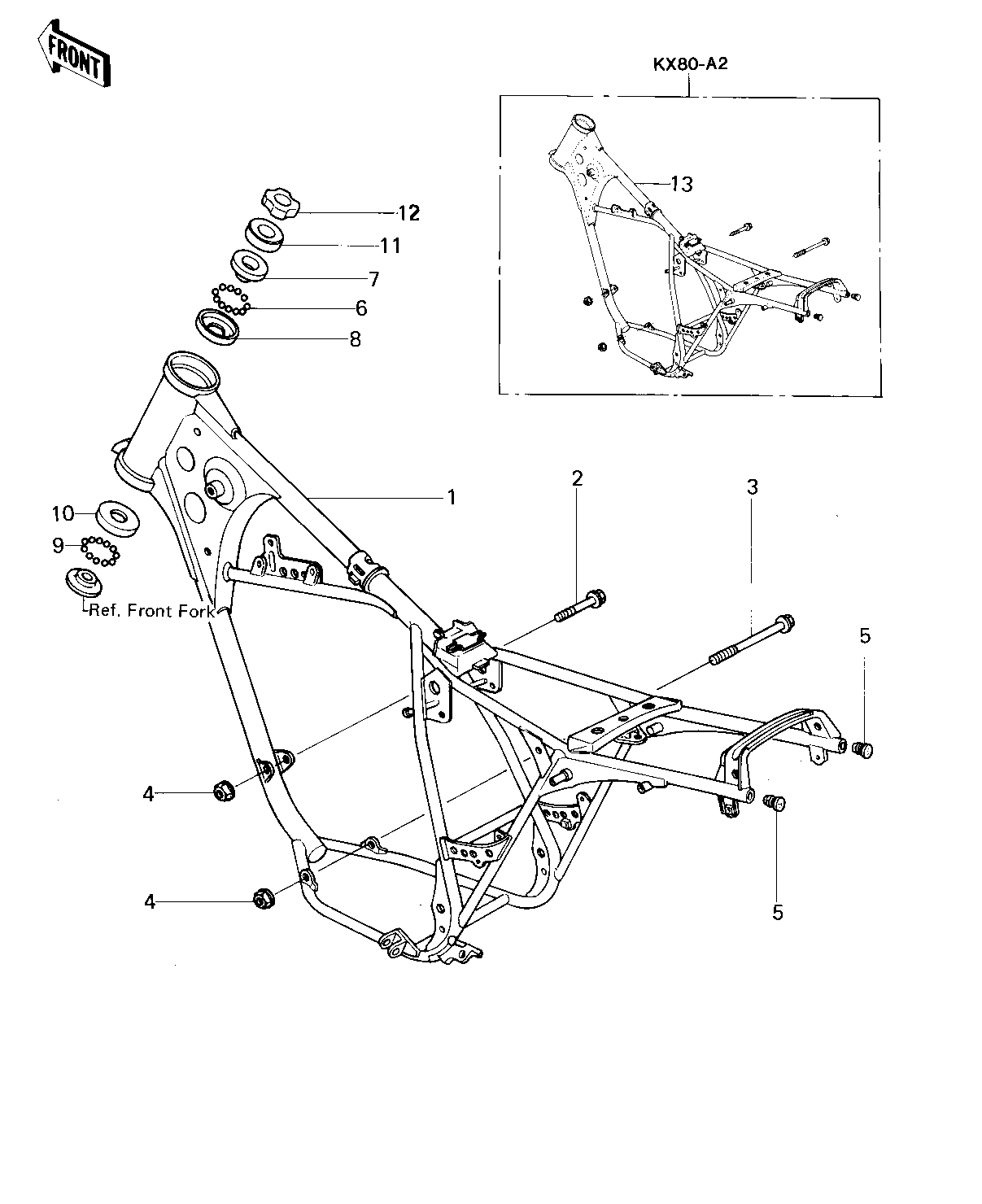

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-1046 1 KX80-A1
BOLT,FLANGED,8X55 2 130G0855 1
BOLT,FLANGED,8X115 3 92001-1113 1
NUT,8M/M 4 92015-1014 2
PLUG,FRAME END 5 92066-1034 2
BALL STEEL 3/16' 6 600A0600 23
CONE,STRG STM BRG,UP 7 92047-014 1
RACE,STRG STM BEARING 8 92048-009 1
BALL STEEL 1/4' 9 600A0800 19
RACE STEERING BEARING 10 92048-005 1
CAP,STEERING STEM 11 46098-018 1
NUT,STEERING STEM 12 92090-022 1
FRAME 13 32002-1120 1 KX80-A2
