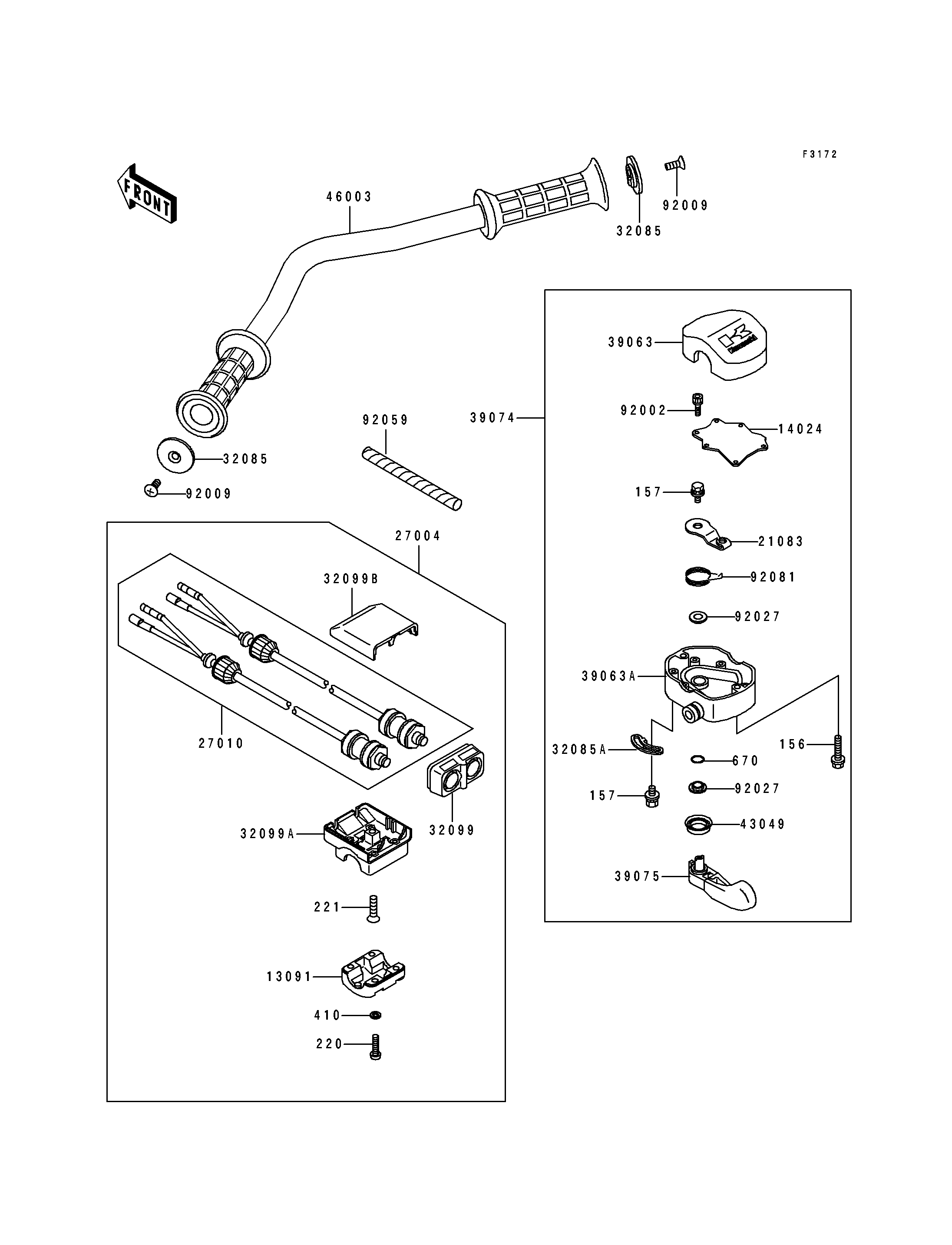

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,SWITCH | 13091 | 13091-3726 | 1 | ||
COVER,THROTTLE LEVER | 14024 | 14024-3701 | 1 | ||
ARM,THROTTLE LEVER | 21083 | 21083-3701 | 1 | ||
SWITCH-ASSY | 27004 | 27004-3002 | 1 | ||
SWITCH,STOP&START | 27010 | 27010-3708 | 1 | ||
STOPPER | 32085 | 32085-3705 | 2 | ||
STOPPER | 32085A | 32085-3709 | 1 | ||
CASE,FR,SWITCH | 32099 | 32099-3724 | 1 | ||
CASE,LWR,SWITCH | 32099A | 32099-3725 | 1 | ||
CASE,UPP,SWITCH | 32099B | 32099-3726 | 1 | ||
HOUSING-CONTROL,UPP | 39063 | 39063-3703 | 1 | ||
HOUSING-CONTROL,LWR | 39063A | 39063-3707 | 1 | ||
LEVER-ASSY-THROTTLE | 39074 | 39074-3711 | 1 | ||
LEVER-THROTTLE | 39075 | 39075-3704 | 1 | ||
PACKING,THROTTLE LEVER | 43049 | 43049-3701 | 1 | ||
HANDLE | 46003 | 46003-3713 | 1 | ||
BOLT,SOCKET,3X10 | 92002 | 92002-3751 | 6 | ||
SCREW,6X16 | 92009 | 92009-3703 | 2 | ||
COLLAR,THROTTLE LEVER | 92027 | 92027-3704 | 2 | ||
TUBE,SPIRAL | 92059 | 92059-3010 | 2 | ||
SPRING,THROTTLE LEVER RETURN | 92081 | 92081-3702 | 1 | ||
BOLT-WP,5X25 | 156 | 156R0525 | 2 | ||
BOLT-WSP,5X12 | 157 | 157R0512 | 2 | ||
SCREW-PAN-CROS,5X20 | 220 | 220R0520 | 4 | ||
SCREW-CSK-CROS,6X25 | 221 | 221R0625 | 1 | ||
W-PLAIN-S,5MM | 410 | 410S0500 | 4 | ||
O RING,8MM | 670 | 670B1508 | 1 |
HOLDER,SWITCH | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,THROTTLE LEVER | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM,THROTTLE LEVER | |
REF # | 21083 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY | |
REF # | 27004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,STOP&START | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STOPPER | |
REF # | 32085A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,FR,SWITCH | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,LWR,SWITCH | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,UPP,SWITCH | |
REF # | 32099B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-CONTROL,UPP | |
REF # | 39063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-CONTROL,LWR | |
REF # | 39063A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-THROTTLE | |
REF # | 39074 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-THROTTLE | |
REF # | 39075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,THROTTLE LEVER | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,3X10 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,THROTTLE LEVER | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,SPIRAL | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE LEVER RETURN | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WP,5X25 | |
REF # | 156 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-WSP,5X12 | |
REF # | 157 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X20 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X25 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
W-PLAIN-S,5MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
O RING,8MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
