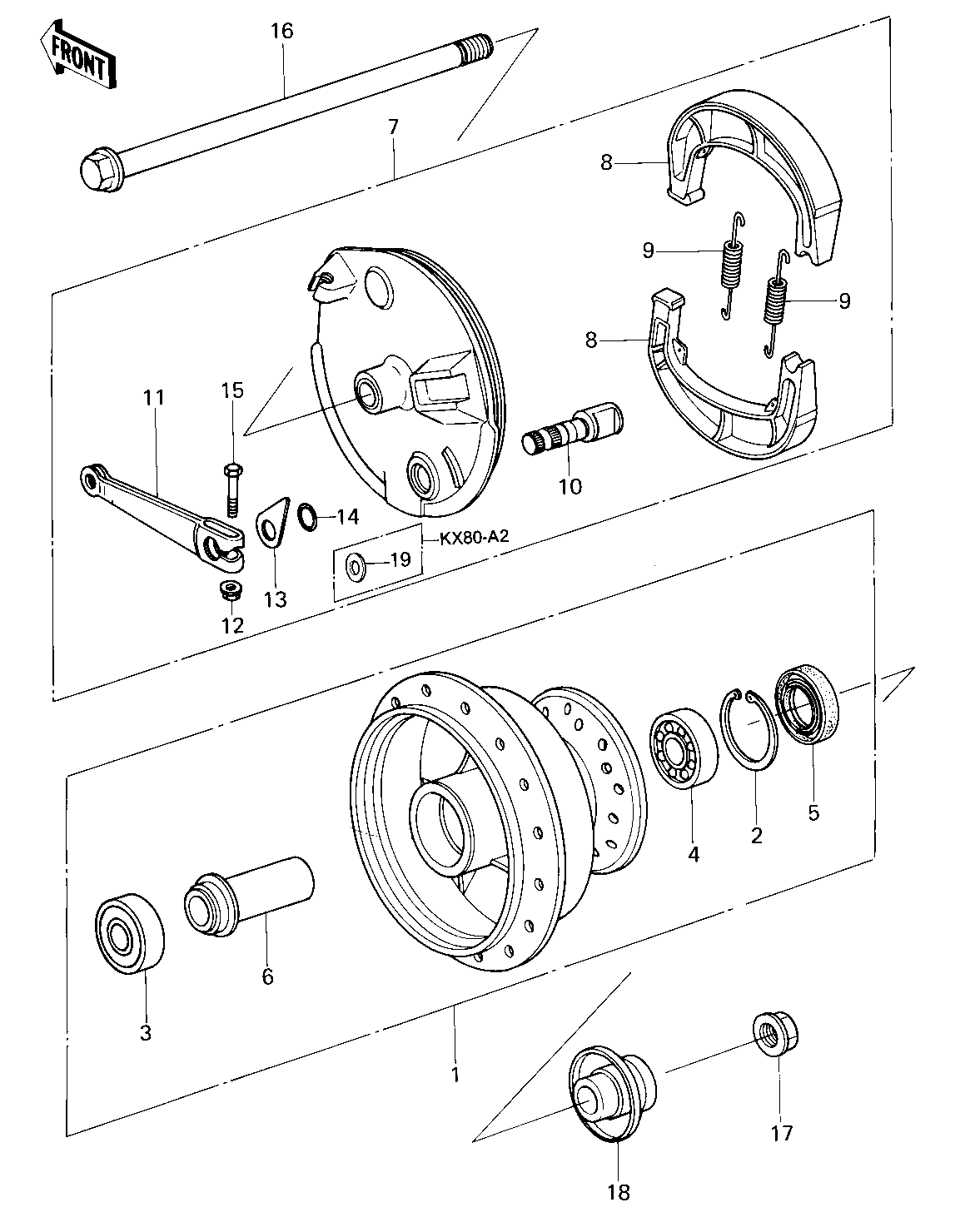

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 1 41034-1013 1
CIRCLIP,35MM 2 481J3500 1
BEARING,BALL,#6200U 3 601B6200U 1
BEARING,BALL,#6300 4 601B6300 1
OIL SEAL,20X35X7 5 654A203507 1
COLLAR,FRONT BRAKE 6 92027-1093 1
PANEL-ASY,FR BRK 7 41035-1037 1 KX80-A1
PANEL-ASY,FR BRK 7 41035-1037 1 KX80-A2~
SHOE,BRAKE 8 41048-1021 2
SPRING,BRAKE SHOE 9 92081-1766 2
CAM,BRAKE,FRONT 10 41050-1009 1
LEVER,BRAKE CAM,FRONT 11 41053-1011 1
NUT,6MM 12 41072-007 1
INDICATOR,BRAKE SHOE 13 41085-1002 1 KX80-A1
"O" RING,12MM 14 670B2012 1
BOLT,HEX HEAD,6X30 15 92001-1135 1
AXLE,FRONT 16 41068-1011 1
NUT,10MM 17 92015-1415 1 KX80-A1
NUT,10MM 17 92015-1415 1 KX80-A2~
COLLAR,FRONT AXLE 18 92027-1094 1
WASHER 19 92022-257 1 KX80-A2~
