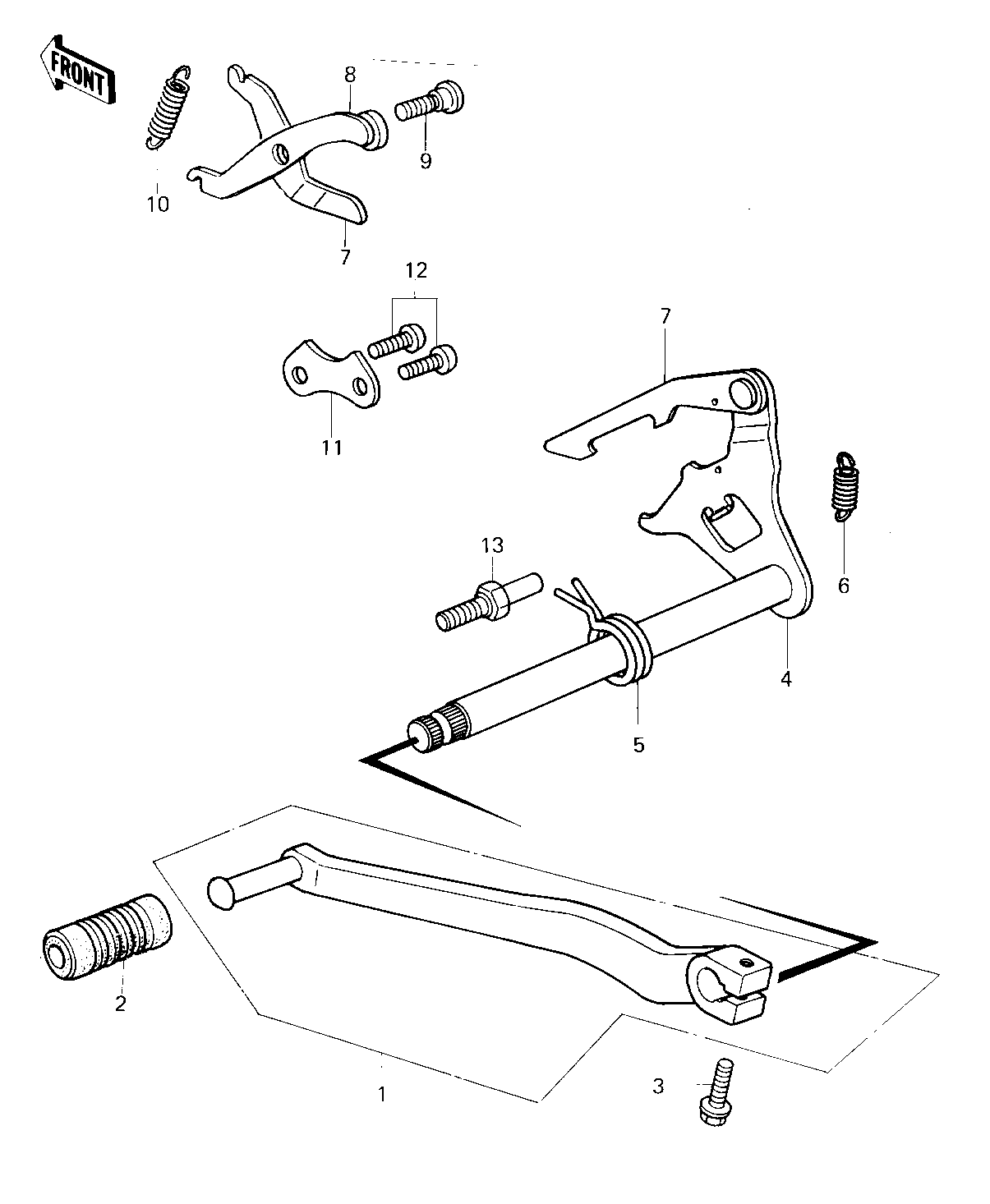

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL ASSY,GEAR CHANG 1 13156-1018 1
DAMPER,CHANGE PEDAL 2 92160-1108 1
BOLT,FLANGED,6X22 3 92001-1352 1
LEVER ASSY,GEAR CHANG 4 13161-1010 1
SPRING,TENTION 5 92081-1129 1
SPRING,GEAR CHANGE 6 92081-156 1
LEVER,GEAR SET 7 13168-1038 1
LEVER,NEUTRAL 8 13236-1009 1
SCREW-PAN HEAD 9 92011-023 1
SPRING,CHANGE LEVER 10 92081-1109 1
PLATE,CHANGE DRUM 11 13169-1132 2
SCREW PAN HEAD 6X14 12 220B0614 1
BOLT,RETURN SPRING 13 92001-1401 1
