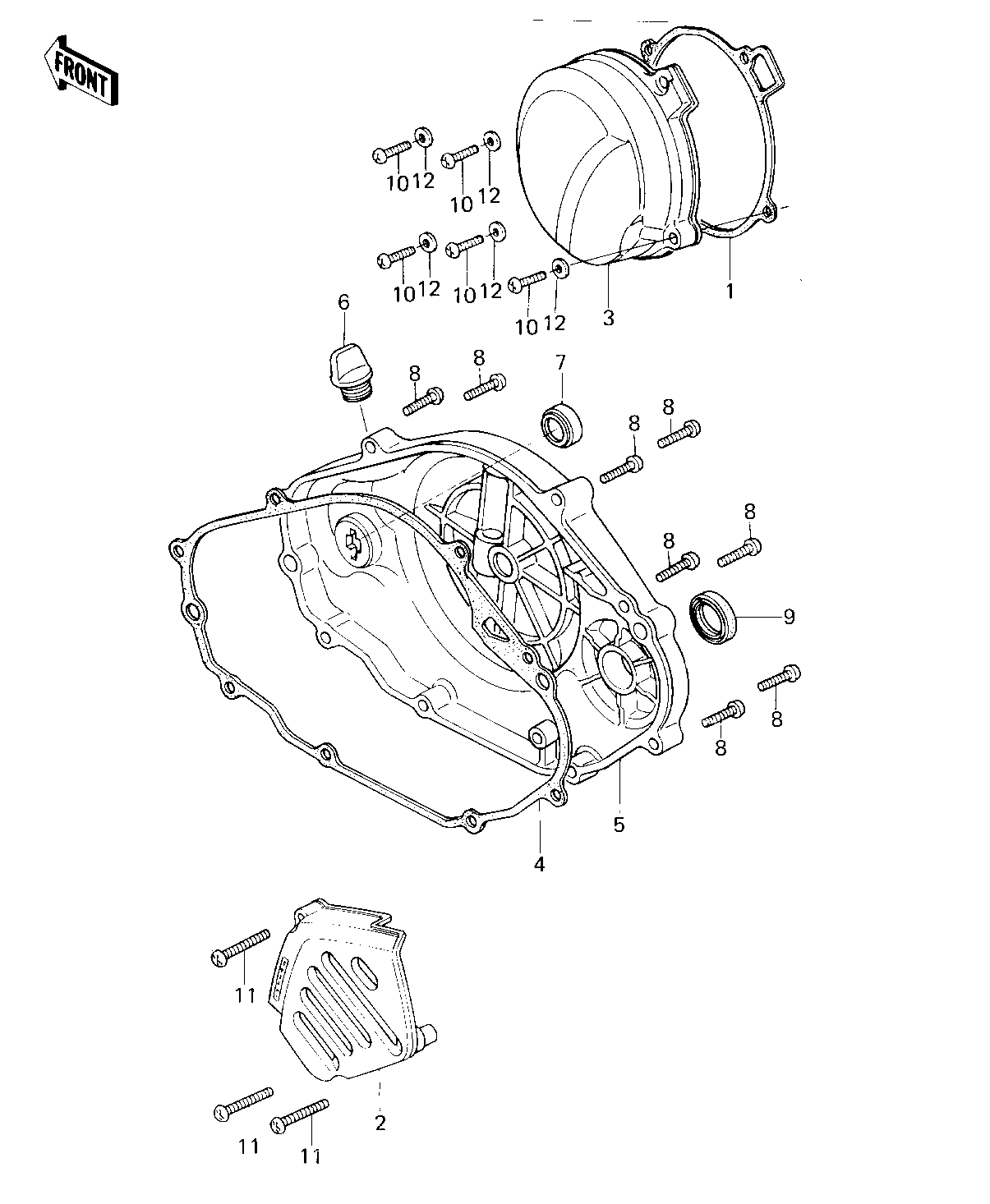

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MAGNETO COVER 1 11009-1111 1
COVER,CHAIN 2 14026-1021 1
COVER,MAGNETO 3 14031-1038 1
GASKET,CLUTCH COVER 4 11009-1110 1
COVER,CLUTCH,F.BLACK 5 14032-1027 1
FILLER,OIL 6 16115-018 1
GAUGE,OIL LEVEL 7 52005-1005 1
SCREW,PAN HEAD,6X22 8 92009-1075 8
OIL SEAL TB16267 9 92051-003 1
SCREW-PAN-CROS,6X25,B 10 220C0625 5
SCREW,PAN HEAD,5X30 11 92011-032 3
WASHER PLAIN 12 411F0600 5
