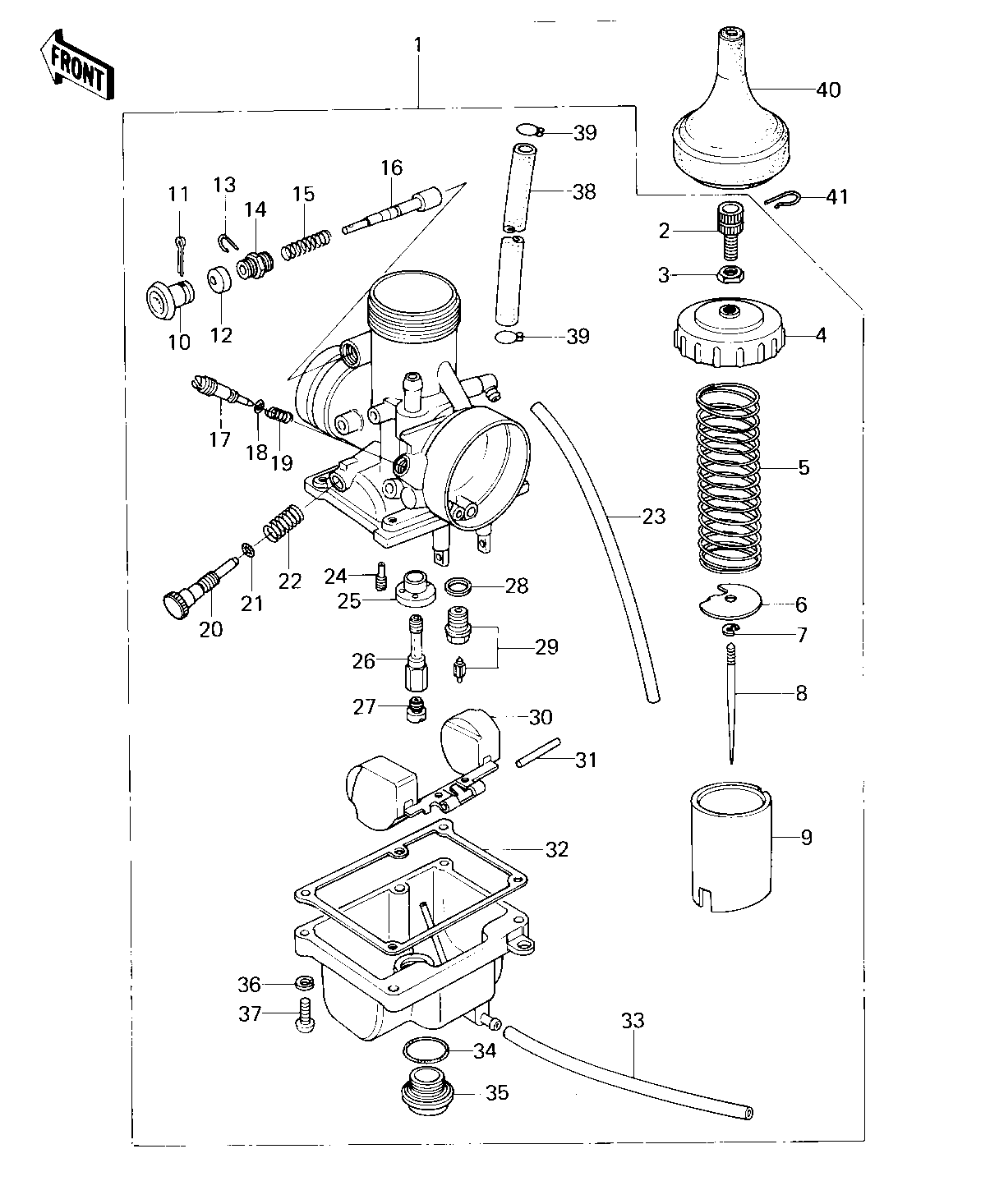

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CARBURETOR ASSY | 1 | 16001-1207 | 1 | ||
CABLE ADJUSTER | 2 | 16002-011 | 1 | ||
NUT-CABLE ADJUST LOCK | 3 | 16003-006 | 1 | ||
CAP,MIXING CHAMBER | 4 | 16004-025 | 1 | ||
SPRING,THROTTLE VALV | 5 | 16006-023 | 1 | ||
SPRING SEAT,THRTL VL | 6 | 16007-023 | 1 | ||
CIRCLIP | 7 | 16008-010 | 1 | ||
JET NEEDLE,5EJ25 | 8 | 16009-1057 | 1 | ||
VALVE,THROTTLE,C.A1.5 | 9 | 16025-1028 | 1 | ||
KNOB,STARTER PLUNGER | 10 | 92077-1009 | 1 | ||
PIN COTTER 1.6X15 | 11 | 550D1615 | 1 | ||
CAP,STARTER PLUNGER | 12 | 16036-012 | 1 | ||
CIRCLIP | 13 | 92037-1077 | 1 | ||
CAP,STARTER PLUNGER | 14 | 16012-021 | 1 | ||
SPRING,STARTER PLUNGR | 15 | 16013-011 | 1 | ||
PLUNGER ASSY,STARTER | 16 | 16016-1004 | 1 | ||
SCREW,PILOT AIR | 17 | 16014-1013 | 1 | ||
"O" RING | 18 | 16038-022 | 1 | ||
SPRING,AIR SCREW | 19 | 92081-1153 | 1 | ||
SCREW,THROTTLE ADJST | 20 | 16021-1012 | 1 | ||
"0" RING | 21 | 92055-044 | 1 | ||
SPRING,THROTTLE ADJST | 22 | 92081-1152 | 1 | ||
TUBE,3X5X300 | 23 | 92059-1755 | 1 | ||
PILOT JET,#30 | 24 | 92064-1030 | 1 | ||
HOLDER,NEEDLE JET | 25 | 16065-1020 | 1 | ||
NEEDLE JET,0-4 | 26 | 16017-1054 | 1 | ||
JET-MAIN NO 132.5R | 27 | 92063-103 | 1 | ||
JET-MAIN,#A127.5 | 27 | 92063-1100 | 1 | ||
MAIN JET NO 130R | 27 | 92063-057 | 1 | ||
MAIN JET NO 135R | 27 | 92063-104 | 1 | ||
MAIN JET,#A137.5 | 27 | 92063-1087 | 1 | ||
WASHER FLOAT VLV SEAT | 28 | 16029-004 | 1 | ||
FLOAT VALVE ASSY,2.6 | 29 | 16030-1004 | 1 | ||
FLOAT | 30 | 16031-1005 | 1 | ||
FLOAT PIN | 31 | 16032-003 | 1 | ||
GASKET,FLOAT CHAMBER | 32 | 11009-1147 | 1 | ||
TUBE,3X5X300 | 33 | 92059-1755 | 1 | ||
"0" RING,MAIN JET COV | 34 | 92055-1061 | 1 | ||
COVER,MAIN JET | 35 | 16049-1001 | 1 | ||
WASHER SPRING 4MM | 36 | 461F0400 | 4 | ||
SCREW PAN HEAD 4X16 | 37 | 220B0416 | 4 | ||
TUBE,5.3X10.5X155 | 38 | 92059-1080 | 1 | ||
CLAMP-PIPE | 39 | 92037-072 | 2 | ||
BOOT,CARBURETOR | 40 | 49006-1024 | 1 | ||
CIRCLIP | 41 | 92036-018 | 1 |
