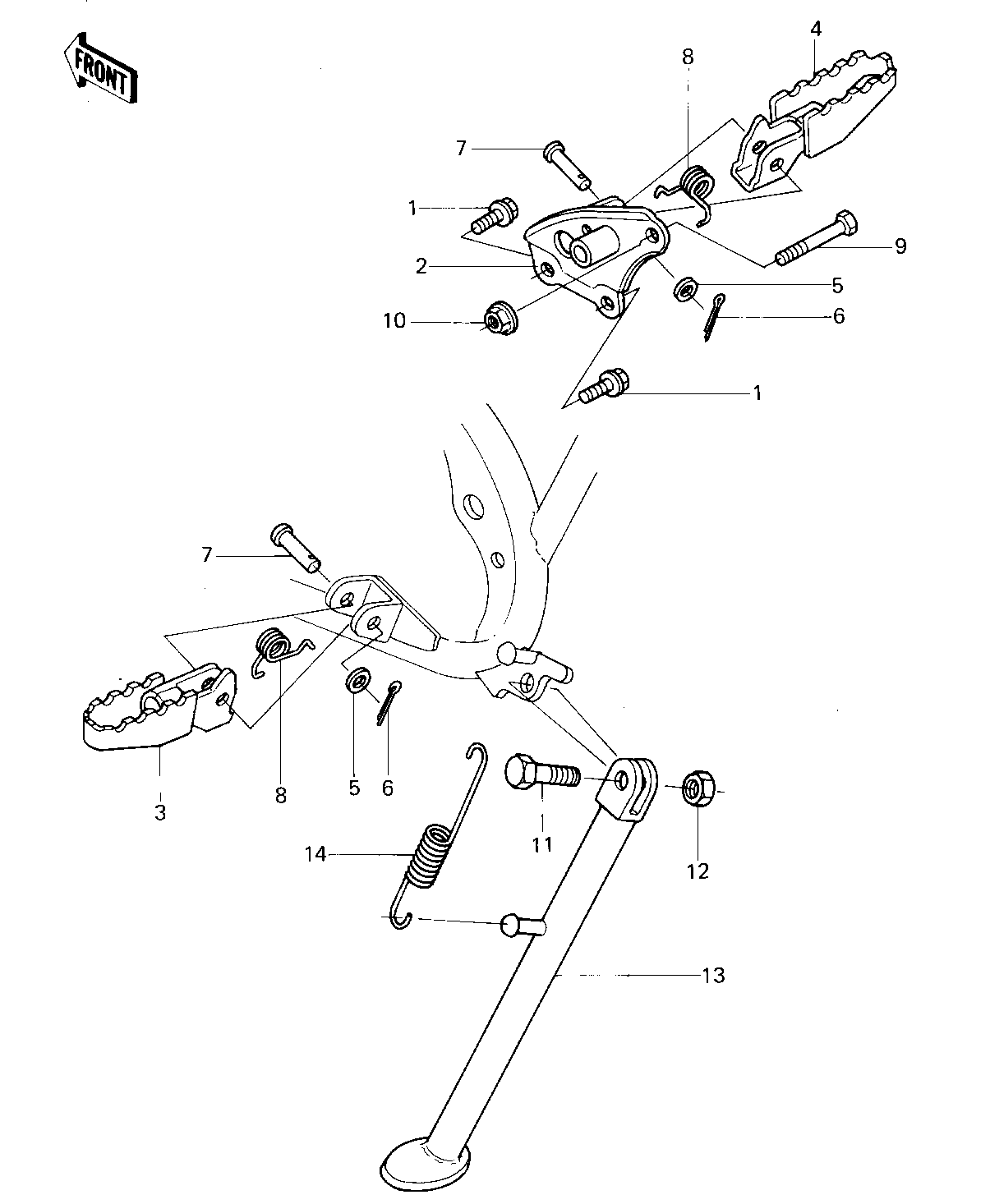

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,8X16 1 131B0816 2
HOLDER,STEP,R.H. 2 34003-1020 1
STEP,FOOTREST,L.H. 3 34028-1011 1
STEP,FOOTREST,R.H. 4 34028-1012 1
WASHER PLAIN 8MM 5 410B0800 2
PIN COTTER 2.5X16 6 550D2516 2
PIN,FOOTREST BAR FIT 7 92043-115 2
SPRING,FOOTREST STEP 8 92081-1066 2
BOLT,HEX HEAD,8X42 9 92001-1175 1
NUT-8MM 10 92015-1022 1
BOLT-UPSET,10X30 11 112G1030 1
NUT 10MM 12 315B1000 1
STAND-SIDE 13 34024-1019 1
SPRING,SIDE STAND 14 34025-005 1
