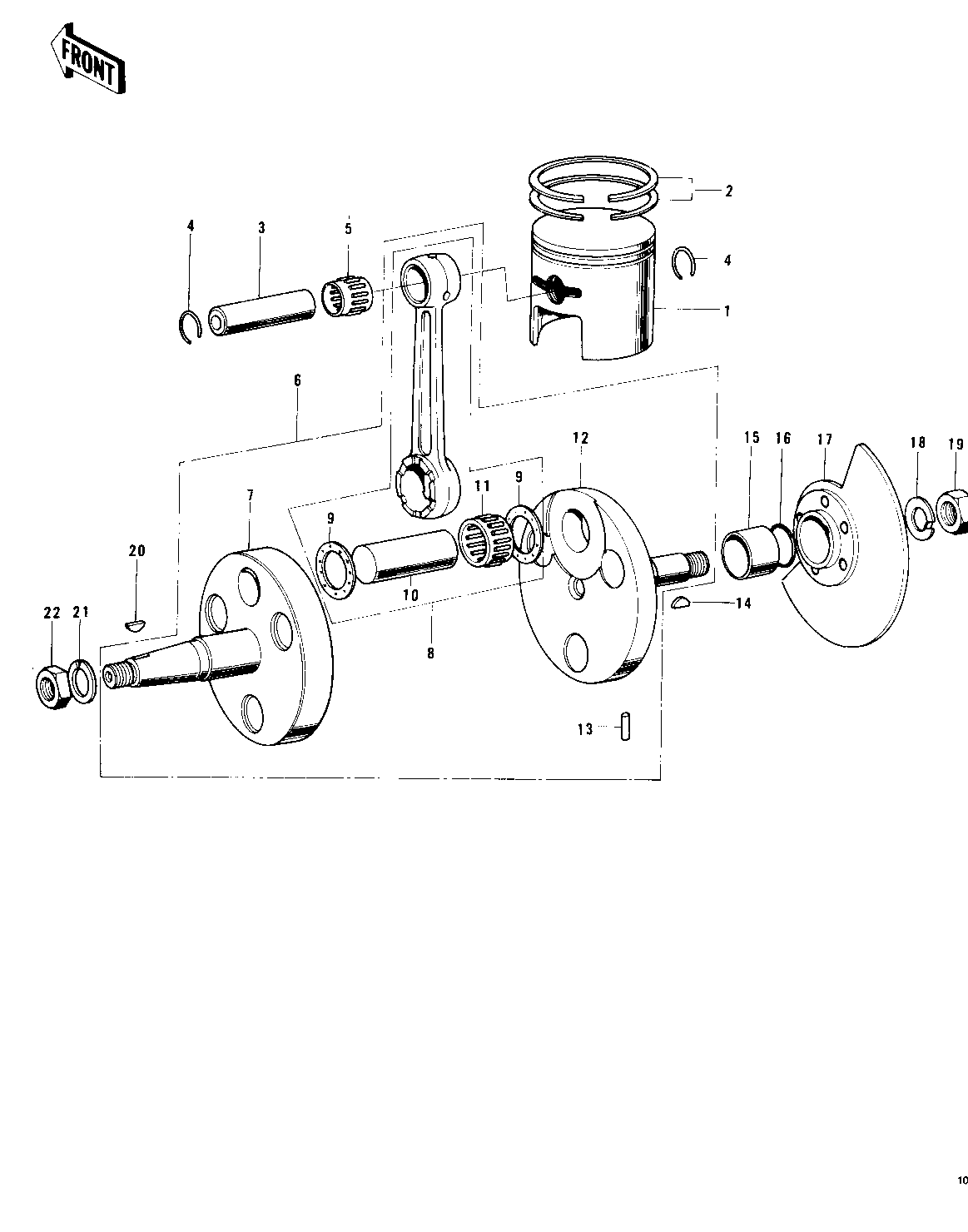

1974 MC1M - CRANKSHAFT/PISTON/ROTARY VALVE ('73-'75

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,STD 1 13001-061
PISTON,0.020 O/S 1 13029-061
PISTON,0.040 O/S 1 13027-059
PISTON,0.040 O/S 1 13027-059
RING SET,STD 2 13008-047
RING SET,0.020 O/S 2 13025-051
RING SET,0.040 O/S 2 13024-052
PIN-PISTON 3 13002-003
CIRCLIP PISTON PIN 4 92036-003
BEARING,SMALL END 5 13033-030 KTV141817
CRANK&CONROD ASSY 6 13036-043
CRANKSHAFT,LH 7 13037-1136
CONNECTING ROD SET 8 13044-5015
CONNECTING ROD SET 8 13044-5015
WASHER-SIDE 9 92025-047
CRANK PIN 10 13035-025
BEARING,BIG END 11 13034-034 KT192612
CRANKSHAFT,RH 12 13037-1135
PIN DOWEL 4X10 13 610A0410
WOODRUFF KEY PRY PINI 14 92038-003
COLLAR CRANKSHAFT 15 92027-022
"0" RING,16MM 16 670B2016
VALVE ROTARY DISC 17 12001-004
WASHER LOCK 12MM 18 92024-003
NUT 12MM 19 92015-006
WOODRUFF KEY 20 510A3200
WASHER SPRING 10MM 21 461F1000
WASHER SPRING 10MM 21 461F1000
NUT,10MM 22 314B1000
NUT,10MM 22 314B1000
