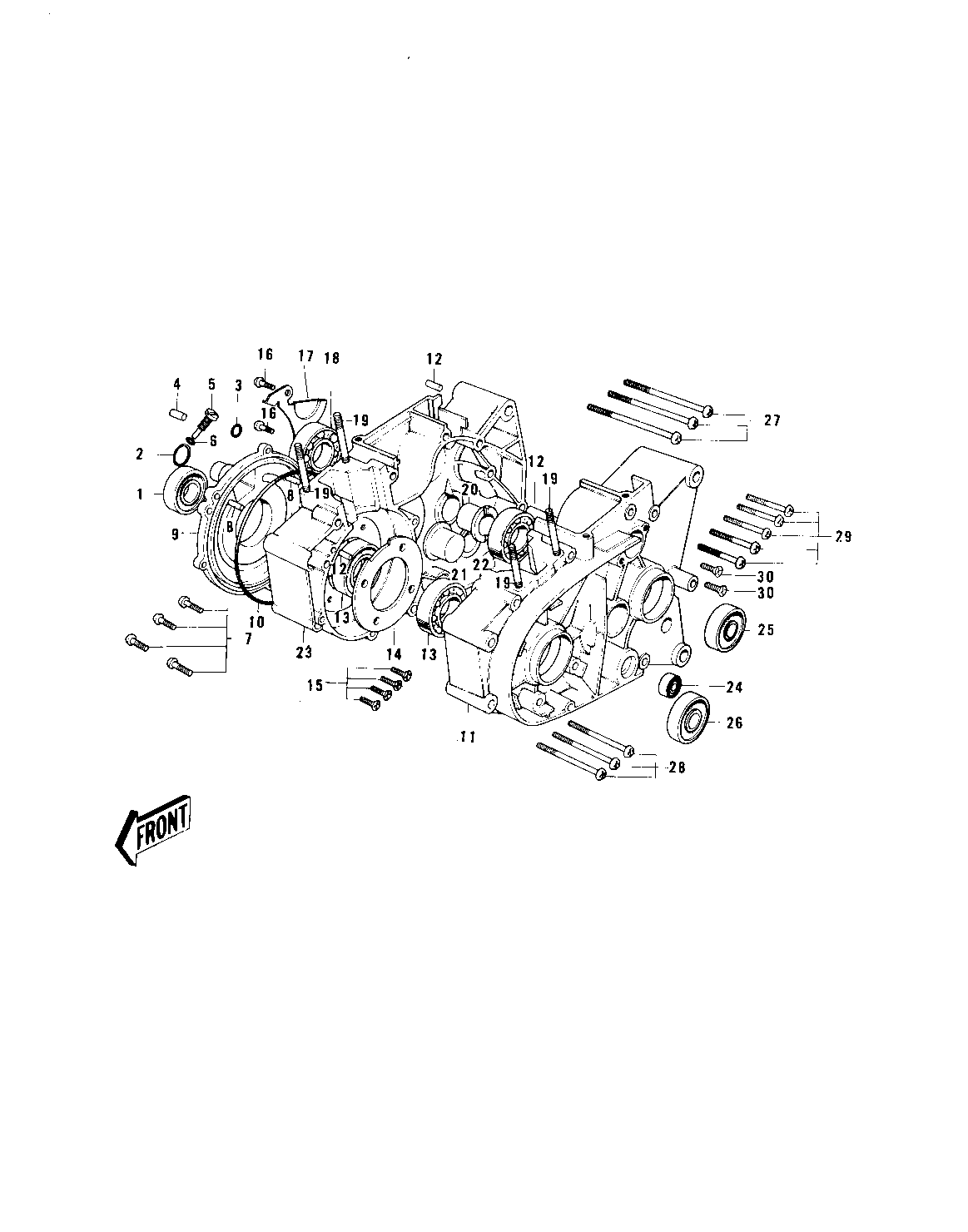

1974 MC1M - CRANKCASE ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAL-OIL 1 92049-1250
"0" RING,26MM 2 670B3026
"0" RING,8MM 3 92055-029
PIN DOWEL 8X16 4 92042-017
NOZZLE OIL INJECTION 5 92062-004
"0" RING,5MM 6 92055-011
SCREW, PAN HEAD, 6 X 20 7 220B0620
PIN DOWEL 5X12 8 610A0512
COVER ROTARY DISC VLV 9 14019-032
"0" RING,100MM 10 92055-010
CRANKCASE,L.H. 11 14002-1072
PIN DOWEL 8X16 12 551A0816
BEARING BALL #6204 13 601B6204
HOLDER CRANKSHAFT BRG 14 14014-017
SCREW CNTSNK HD 6X16 15 221B0616
SCREW PAN HEAD 6X25 16 220B0625
HOLDER BEARING MSSON 17 14014-008
BEARING BALL #6005 18 601B6005
STUD 8X115 19 172G08115
BUSH DRIVE SHAFT 20 92028-069 1 14M/M
BUSH OUTPUT SHAFT 21 92028-025 1 25.5M/M
BEARING BALL #6004 22 601B6004
CRANKCASE,R.H 23 14003-063
OIL SEAL SB12205 24 92049-004
OIL SEAL SC25376 25 92050-013
SEAL-OIL 26 92049-1240
SCREW PAN HEAD 6X65 27 220B0665
SCREW PAN HEAD 6X60 28 220B0660
SCREW PAN HEAD 6X40 29 220B0640
SCREW PAN HEAD 6X12 30 220B0612
