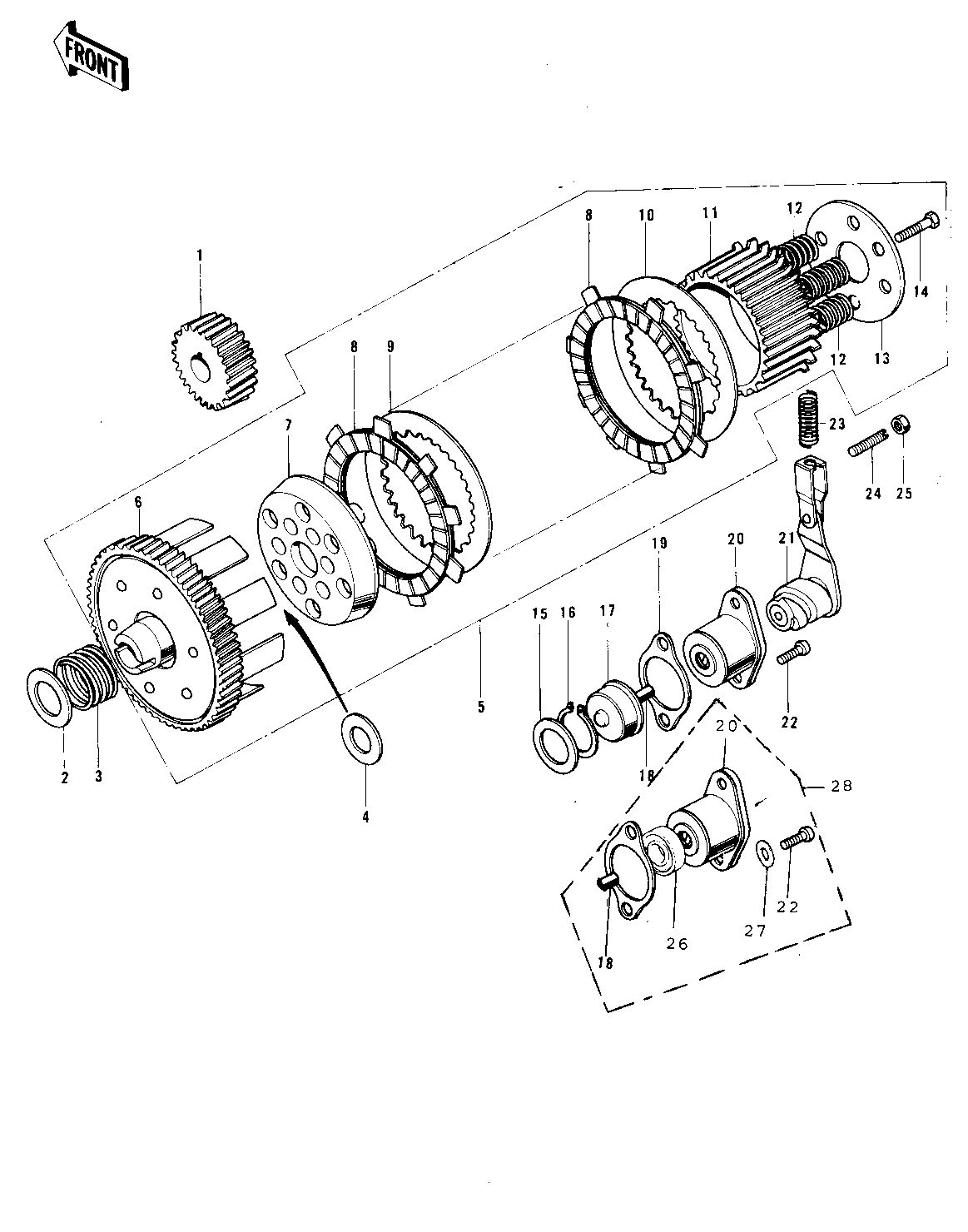

1974 MC1M - CLUTCH ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PINION,PRIMARY 1 13121-032
WASHER PLAIN 2 92022-057 O.D=36
SPRING CLUTCH DAMPER 3 92081-015
WASHER THRUST CLUTCH 4 92022-054 O.D.=27
CLUTCH-ASSY 5 13081-028
HOUSING CLUTCH 6 13095-022
WHEEL,CLUTCH 7 13086-1002
PLATE-FRICTION 8 13088-1103
PLATE-CLUTCH,STEEL 9 13089-1009
PLATE CLUTCH OUTER 10 13090-004
HUB,CLUTCH 11 13087-1011
SPRING CLUTCH 12 92081-012
HOLDER,CLUTCH SPRING 13 13091-1115
BOLT-UPSET 14 112G0516
WASHER THRUST 15 92022-053 O.D.=21
CIRCLIP 16MM 16 480J1600
PUSHER CLUTCH SPRING 17 13113-003
PIN DOWEL 7X10 18 610A0710
PIN,DOWEL,7X14 18 610A0714 USE FOR 13213-013
GASKET,CLUTCH RELEASE 19 11060-1197
RELEASE SET,CLUTCH 20 13231-013
RELEASE-ASSY-CLUTCH 20 13231-1008 USE FOR 13213-013
RELEASE-ASSY-CLUTCH 21 13231-1008
SCREW PAN HEAD 6X16 22 220B0616
SPRING-CLUTCH RELEASE 23 92081-096
SCREW SLOTTED 6X28 24 291Z0628
SCREW SLOTTED 6X28 24 291Z0628
SCREW SLOTTED 24 291Z0625 USE FOR 13213-013
NUT 6MM 25 311B0600
OIL SEAL 26 92050-071 USE FOR 13213-013
WASHER PLAIN 6MM 27 410B0600 USE FOR 13213-013
WASHER PLAIN 6MM 27 410B0600 USE FOR 13213-013
RELEASE SET,CLUTCH 28 13231-013 E/NO. 9474 ABOVE
