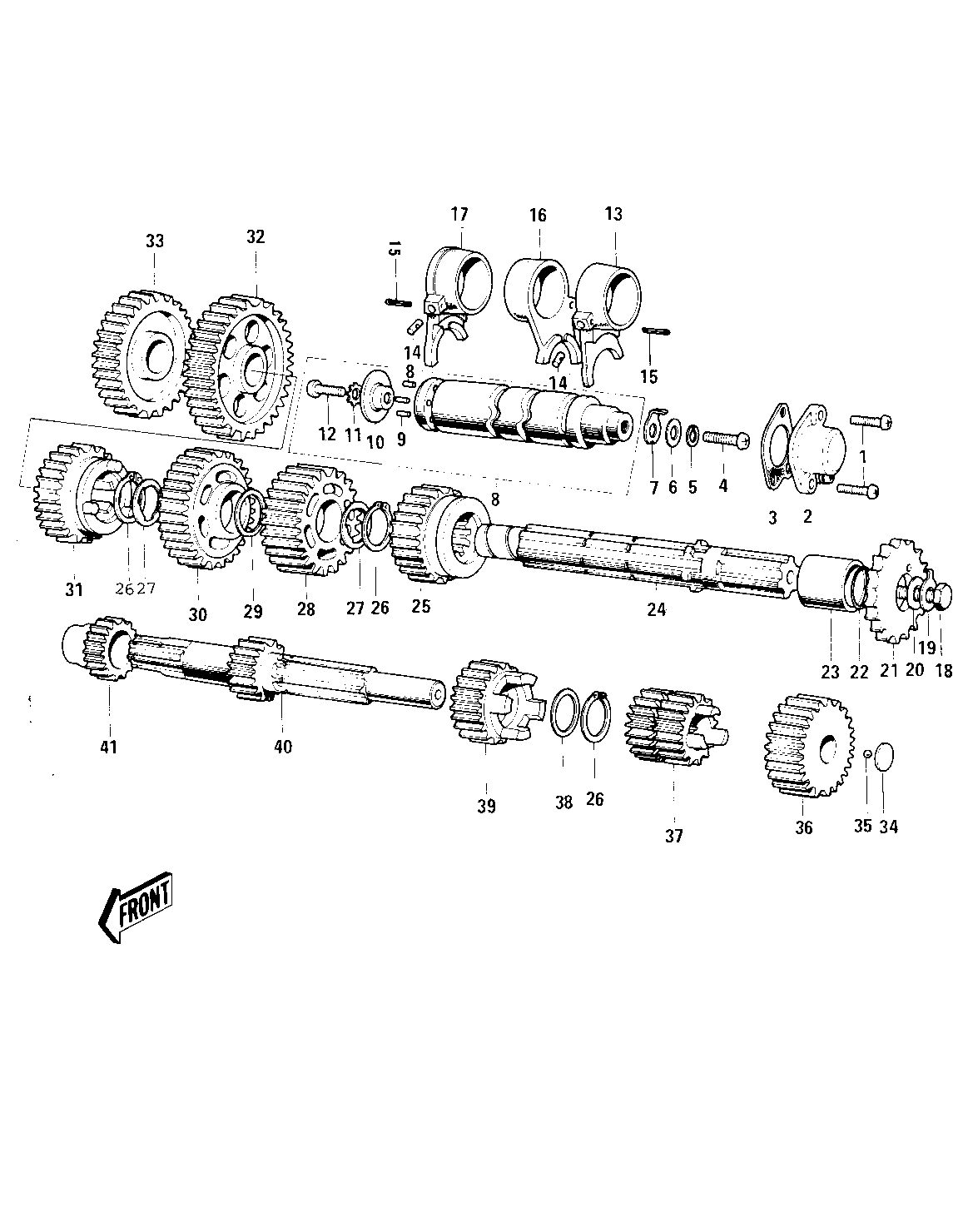

1974 MC1M - TRANSMISSION/CHANGE DRUM ('73-'75 MC1/MC

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X16 1 220B0616
SWITCH, NEUTRAL INDICATOR 2 13151-004
GASKET NEUTRAL SWITCH 3 13146-002
SCREW PAN HEAD 6X14 4 220B0614
WASHER SPRING 6MM 5 461F0600
WASHER PLAIN 6MM 6 410B0600
ROTOR,NEUTRAL INDICTR 7 21007-1003
DRUM ASSY-GEAR CHANGE 8 13239-005
PIN GEAR CHANGE DRUM 9 92042-014
PLATE CHANGE DRUM PIN 10 13142-008
WASHER LOCK 6MM 11 464H0600
SCREW PAN HEAD 6X12 12 220B0612
FORK SELECTOR 3RD 13 13140-009
PIN SELECT FORK GUIDE 14 92043-005
PIN COTTER 3.0X20 15 550D3020
FORK SELECTOR 4TH-TOP 16 13140-017
FORK SELECTOR LOW-2ND 17 13140-010
BOLT-SMALL-UPSET,8X16 18 115G0816
WASHER,LOCK,8MM 19 92030-012
WASHER,ENGINE SPRCKT 20 92022-266
SPROCKET-OUTPUT,14T 21 13144-1058
"0" RING 22 92055-022
COLLAR,ENG NPROCKET 23 92027-179
SHAFT OUTPUT 24 13128-021
TOP GEAR OUTPUT SHAFT 25 13137-012
CIRCLIP 26 92033-014
WASHER-LOCK 27 92024-030
3RD GEAR OUTPUT SHAFT 28 13133-005
WASHER THRUST 29 92022-146
2ND GEAR OUTPUT SHAFT 30 13131-008
GEAR-TRANSMISSION SPU 31 13129-1708
LOW GEAR OUTPUT SHAFT 32 13129-010
IDLE GEAR 33 13073-004
WASHER THRUST 34 92022-115
BALL STEEL 7/32' 35 600A0700
GEAR,INPUT TOP,24T 36 13129-1927
2ND&3RD GEAR,DRIVE 37 13129-1052
WASHER THRUST 38 92022-118
4TH GEAR,DRIVE 39 13129-1053
SHAFT,DRIVE 40 13127-032
PINION KICKSTARTER 41 13075-004
