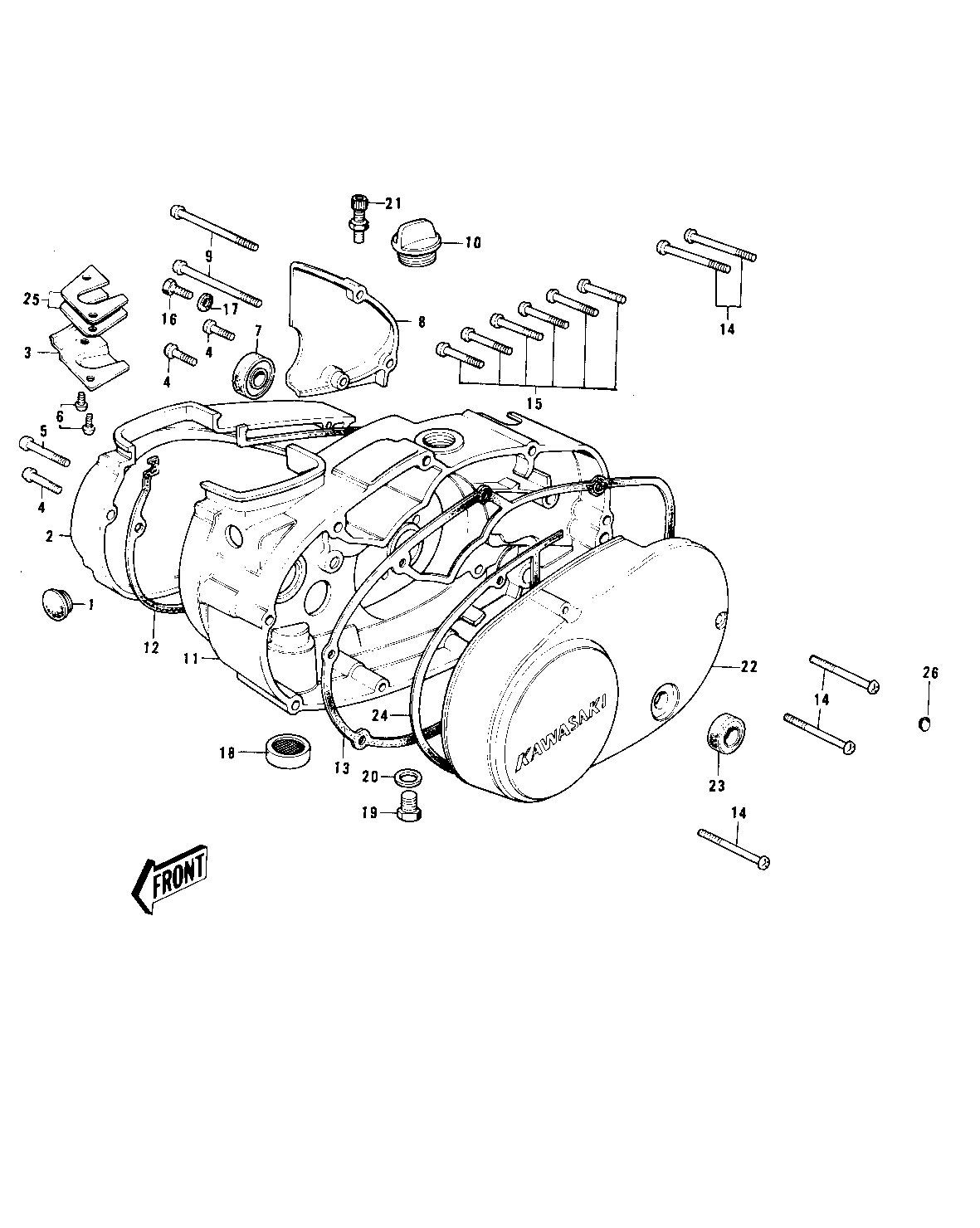

1974 MC1M - ENGINE COVERS ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP CARB MOUNT HOLE 1 14039-001
COVER,CARB.L.SILVER 2 14030-053-75 MC1A
COVER,CARB.L.SILVER 2 14030-053-75
COVER,CARB BARREL 2 14030-1005 MC1B
COVER,CLUTCH CABLE 3 14076-005
COVER,CLUTCH CABLE 3 14025-1137 MC1A/B
SCREW PAN HEAD 6X20 4 220B0620
SCREW PAN HEAD 6X35 5 220B0635
SCREW PAN HEAD 6X16 6 220B0616
OIL SEAL TB14257 7 653B142507
COVER,OIL PUMP,L.SILV 8 14030-050-75
COVER,OIL PUMP,BUFF 8 14030-050-80 MC1B
SCREW PAN HEAD 6X75 9 220B0675
FILLER,OIL 10 16115-018
COVER-CLUTCH,SILVER 11 14032-1025
COVER-CLUTCH,SILVER 11 14032-1025 MC1A
COVER,R.H,ENG,BARREL 11 14032-1017 MC1B
GASKET,CARBURETOR COV 12 11060-1201
GASKET,CLUTCH COVER 13 11060-1198
SCREW PAN HEAD 6X45 14 220B0645 LEA NOT REQUIRED
SCREW PAN HEAD 6X30 15 220B0630
BOLT,HEX HEAD,6X14 16 92001-121
WASHER OIL PUMP BANJO 17 92022-077
DRAIN,FUEL 18 16116-006
PLUG OIL DRAIN 19 92067-001
GASKET CHECK VALVE 20 92065-058
ADJUSTER,CABLE 21 16002-012
COVER,L.H ENG,SILVER 22 14031-078-75
COVER,L.H ENG,SILVER 22 14031-078-75
COVER,L.H ENG.BUFF 22 14031-078-80 MC1B
OIL SEAL SB12205 23 92049-004
GASKET,L.H ENG COTER 24 14045-019
GASKET,GENERATOR COVE 24 11060-1202 MC1A/B
SPACER,CL CABLE COVER 25 92026-096
PLUG,RUBBER 26 92074-019 USE FOR 14031-031-75
