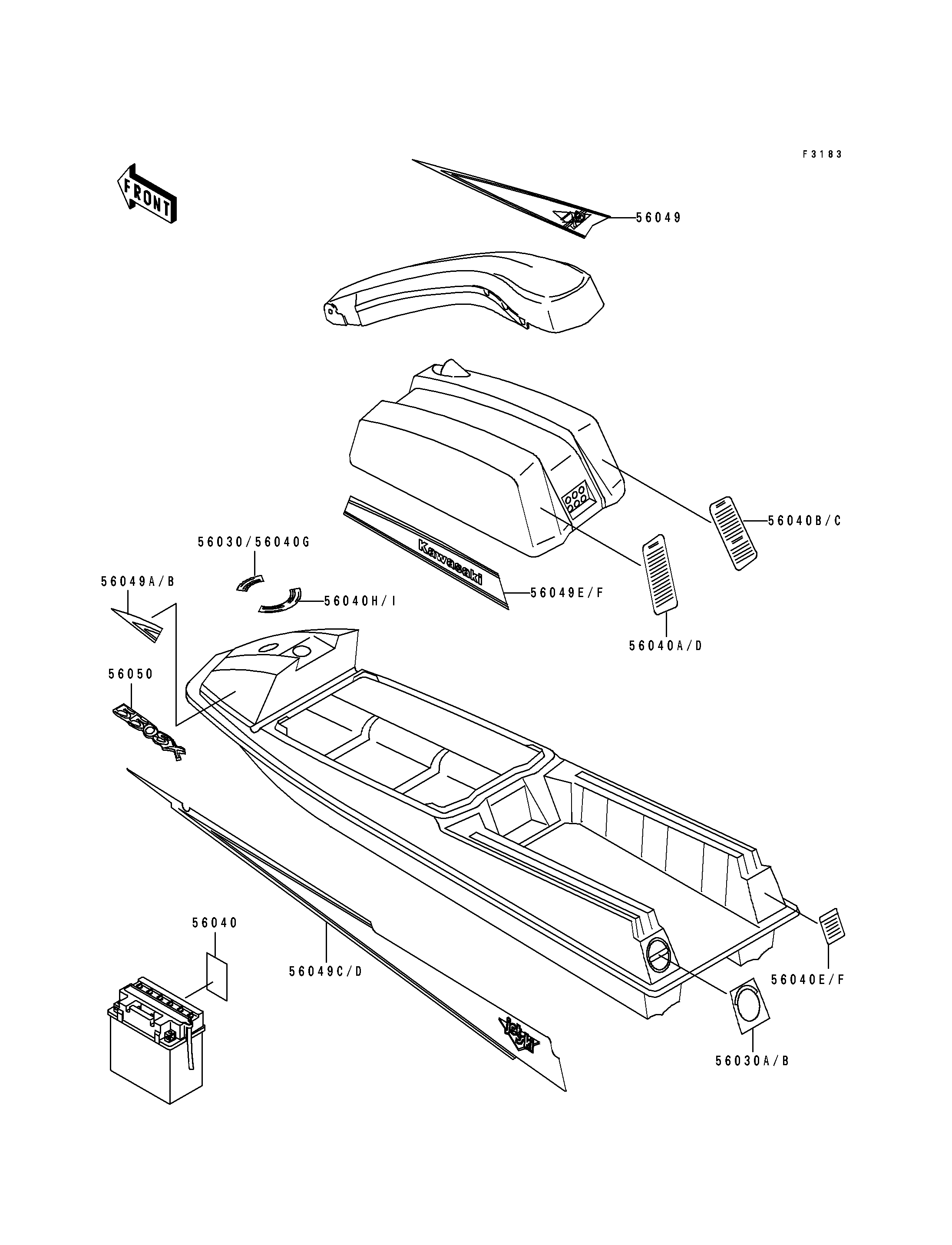

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,OIL RECOMMENDED | 56030 | 56030-3762 | 1 | ||
| LABEL,FIRE EXTINGUISHER | 56030A | 56030-3774 | 1 | ||
| LABEL,FIRE EXTINGUISHER | 56030B | 56030-3775 | 1 | CN | |
| LABEL-WARNING,BATTERY CAUTION | 56040 | 56040-1106 | 1 | CN | |
| LABEL-WARNING,SAFETY | 56040A | 56040-3820 | 1 | ||
| LABEL-WARNING,SAFETY | 56040B | 56040-3821 | 1 | ||
| LABEL-WARNING,SAFETY | 56040C | 56040-3844 | 1 | CN | |
| LABEL-WARNING,SAFETY | 56040D | 56040-3850 | 1 | CN | |
| LABEL-WARNING,IMPORTANT SAFETY | 56040E | 56040-3871 | 1 | ||
| LABEL-WARNING,NOZZLE CHECK | 56040F | 56040-3877 | 1 | CN | |
| LABEL-WARNING,OIL RECOMMENDED | 56040G | 56040-3893 | 1 | CN | |
| LABEL-WARNING,CAUTION | 56040H | 56040-3894 | 1 | ||
| LABEL-WARNING,OIL CAUTION | 56040I | 56040-3897 | 1 | CN | |
| PATTERN,HANDLE POLE | 56049 | 56049-1322 | 1 | ||
| PATTERN,FRONT DECK,LH | 56049A | 56049-1323 | 1 | ||
| PATTERN,FRONT DECK,RH | 56049B | 56049-1324 | 1 | ||
| PATTERN,REAR DECK,LH | 56049C | 56049-1325 | 1 | ||
| PATTERN,REAR DECK,RH | 56049D | 56049-1326 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56049E | 56049-1327 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56049F | 56049-1328 | 1 | ||
| MARK,550SX | 56050 | 56050-1428 | 2 |
