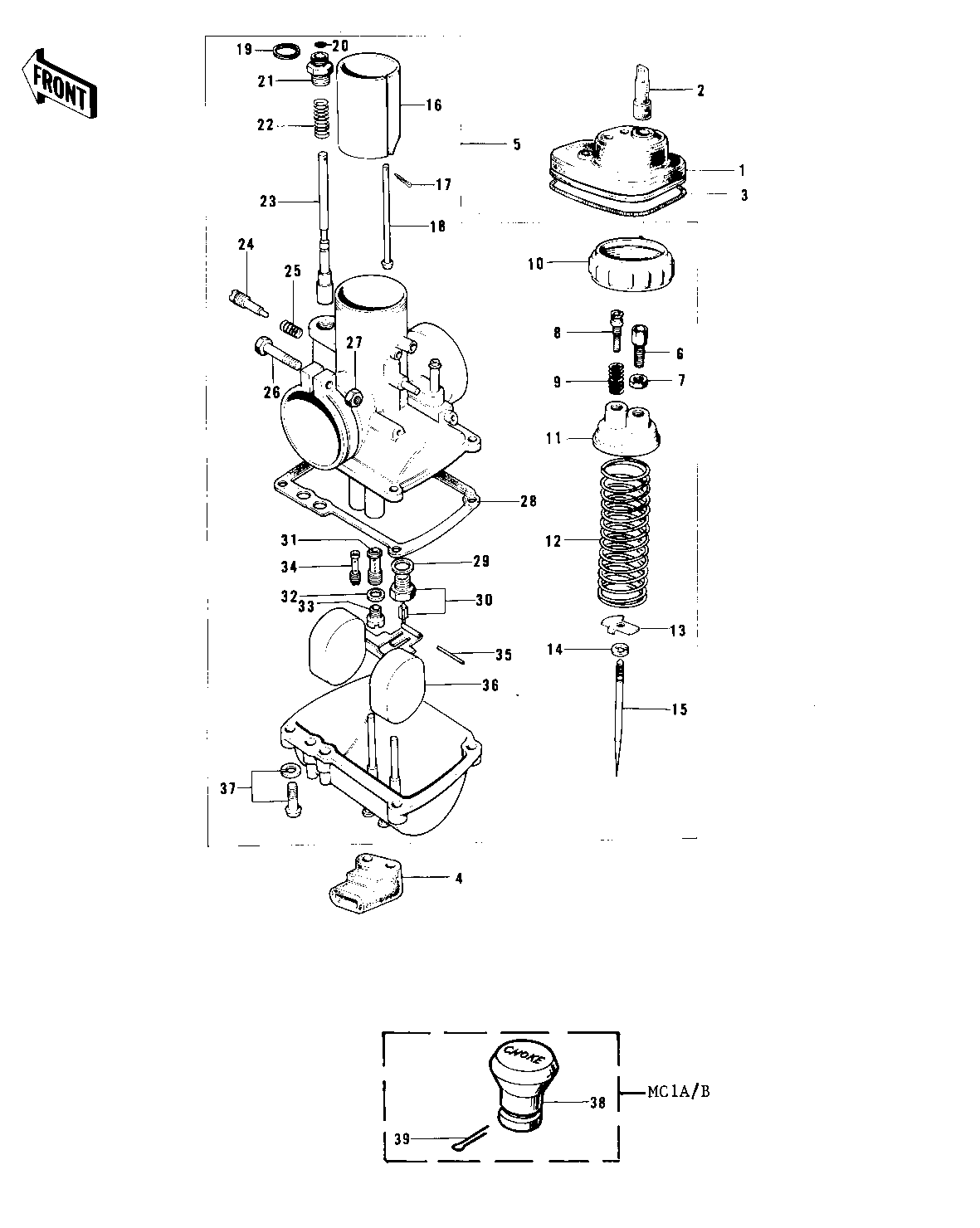

1974 MC1M - CARBURETOR ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CARBURETOR 1 14038-035
PLUG,CARBURETOR CAP 2 16147-001
SPRING COIL 3 92081-047
GROMMET,OVER FLOW 4 16136-007
CARBURETOR ASSY 5 16001-251
CABLE ADJUSTER 6 16002-002
NUT CABLE ADJUST LOCK 7 16003-004
SCREW,THROTTLE STOP 8 16021-002
SPRING THR STOP SCREW 9 16022-005
CAP MIXING CHAMBER 10 16004-010
TOP MIXING CHAMBER 11 16005-005
SPRING THROTTLE VALVE 12 16006-013
SPRING SEAT,THRTL TL 13 16007-020
CIRCLIP 14 16008-010
JET NEEDLE 4EJ7 15 16009-059
VALVE,THROTTLE CA2.0 16 16025-057
PIN COTTER 1.2X10 17 550D1210
ROD,THROTTLE VLV STP 18 16024-012
SPRING,COIL 19 92081-127
CIRCLIP 20 92037-1077
CAP,STARTER PLUNGER 21 16012-021
SPRING,STARTER PLUNGR 22 16013-010
PLUNGER,STARTER 23 16016-012
SCREW PILOT AIR ADJST 24 16014-002
SPRING-THR STOP SCREW 25 16022-007
SCREW CLAMP 26 16010-004
NUT 6MM 27 311B0600
GASKET,FLOAT CHAMBER 28 16019-021
WASHER VALVE SEAT 29 16029-002
FLOAT VALVE ASSY 30 16030-001
NEEDLE JET O-Z 31 16017-068
WASHER MAIN JET 32 16034-001
MAIN JET NO 75R 33 92063-109 S.T.D.
MAIN JET,#70R 33 92063-1012 OPTION
MAIN JET NO 72.5R 33 92063-108 OPTION
MAIN JET,#77.5R 33 92063-1032 OPTION
MAIN JET, #A80 33 92063-1030 OPTION
PILOT JET #17.5 ISO 34 92064-020
FLOAT PIN 35 16032-003
FLOAT 36 16031-015
SCREW-FLOAT CHAMBER 37 16033-012
KNOB,CARBURETOR 38 92077-022 MC1A/B
PIN COTTER 1.6X15 39 550D1615 MC1A/B
