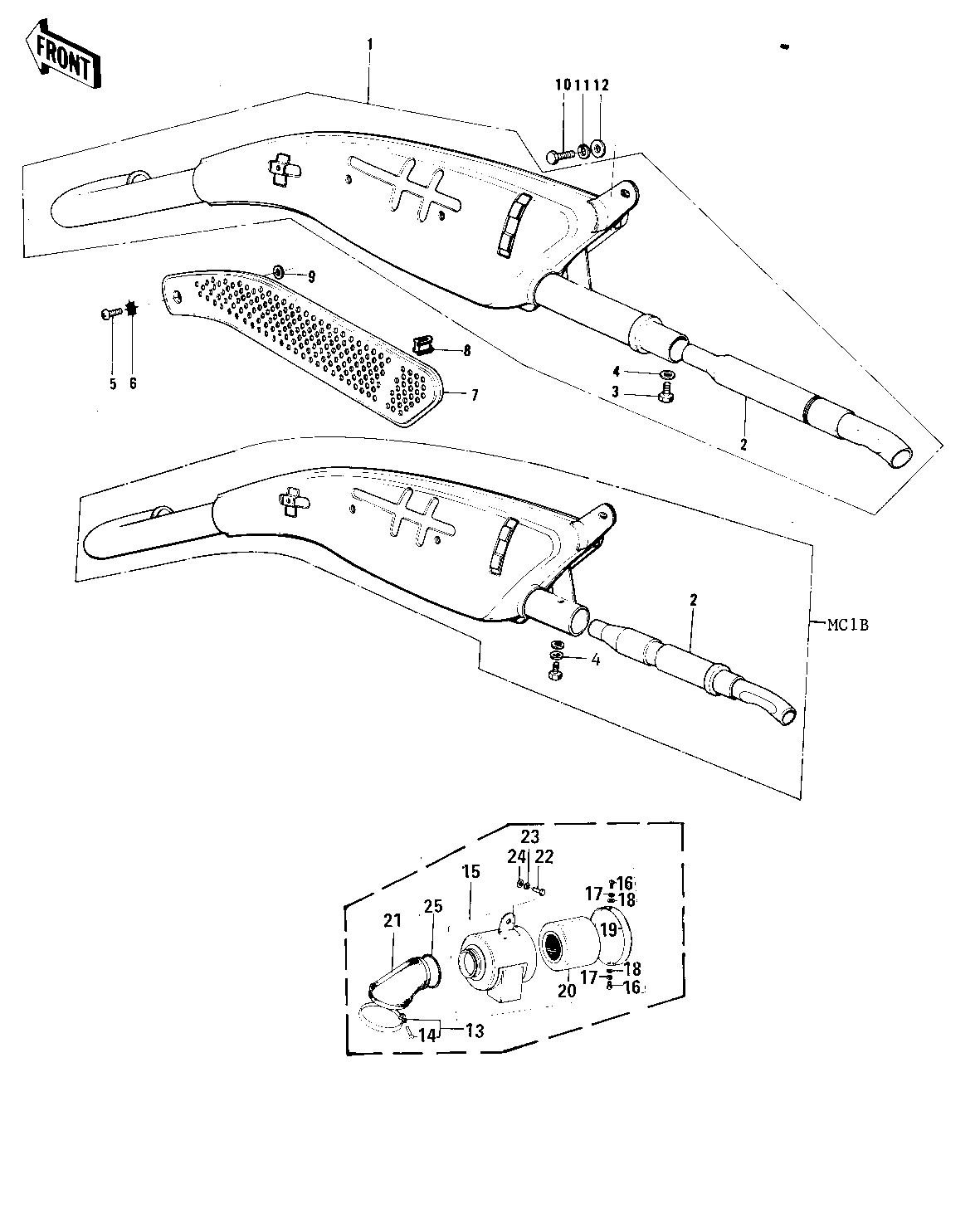

1974 MC1M - AIR CLEANER/MUFFLER ('73-'75 MC1/MC1-A/M

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MUFFLER ASSY,F.BLACK 1 18001-167-21 USE 18001-131
MUFFLER ASSY,F.BLACK 1 18001-167-21
MUFFLER ASSY,F.BLACK 1 18001-167-21 MC1B
BAFFLE TUBE 2 18033-071 FOR 18001-096-21
BAFFLE TUBE 2 18033-083 FOR 18001-131
BAFFLE TUBE 2 18033-088 FOR 18001-149
BOLT,6X10 3 112G0610
WASHER-PLAIN 4 92022-183 MC1/A
WASHER PLAIN 6MM 4 410B0600 MC1B
SCREW PAN HEAD 6X12 5 220E0612 MC1B
WASHER LOCK 6MM 6 463H0600
COVER,MUFFLER 7 18064-018
INSULATOR 8 18065-007
INSULATOR-HEAT 9 18065-009
BOLT-SMALL-UPSET,8X16 10 115G0816
BOLT HEX HEAD 8X16 10 116B0816
WASHER SPRING 8MM 11 461F0800
WASHER PLAIN 8MM 12 411B0800
CLAMP-AIR CLEANER 13 92037-068
SCREW PAN HEAD 6X35 14 220B0635
AIR CLEANER ASY,BLACK 15 11010-068-10
SCREW PAN HEAD 5X8 16 220B0508
WASHER SPRING 5MM 17 461F0500
WASHER PLAIN 5MM 18 411B0500
CAP,AIR CLEANER 19 11012-041
ELEMENT,AIR,CLNR 20 11013-044
CONNECTOR,AIR CLEANER 21 11026-009
BOLT-UPSET,6X16 22 112G0616
BOLT-UPSET,6X16 22 112G0616
WASHER SPRING 6MM 23 461F0600
WASHER PLAIN 6MM 24 410B0600
SPRING COIL 25 92081-047
