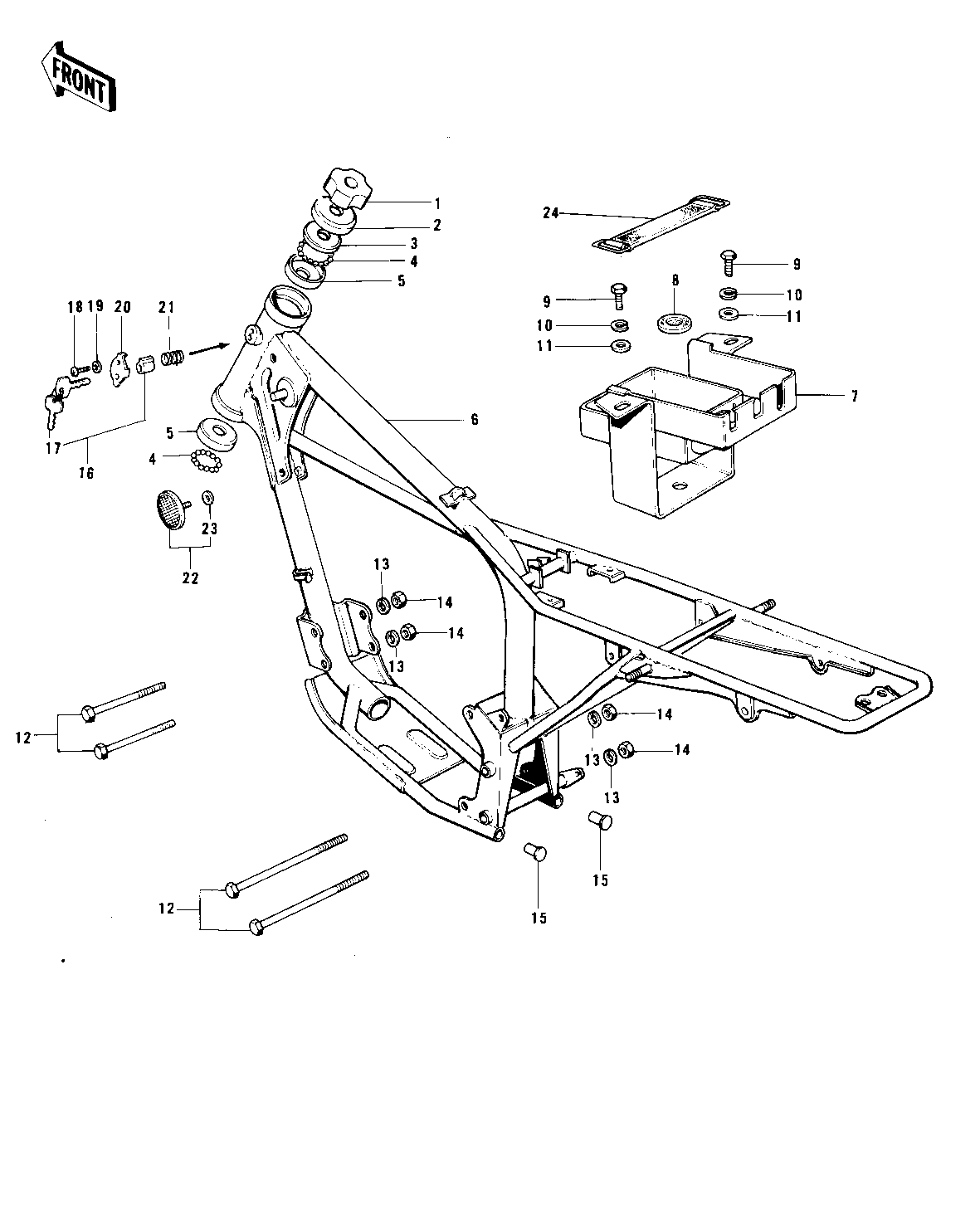

1974 MC1M - FRAME/FRAME FITTINGS ('73-'75 MC1/MC1-A/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT STEERING STEM LCK 1 92090-006
CAP STEERING STEM 2 46098-004
CONE UPPER BEARING 3 92047-005
BALL STEEL 3/16' 4 600A0600
RACE BEARING 5 92048-004
FRAME 6 32002-069 MC1
FRAME 6 32002-090 MC1A
FRAME 6 32002-109 MC1B
CASE,BATTERY 7 32097-028
DAMPER RUBBER 8 92075-078
BOLT-UPSET,6X12 9 112G0612
BOLT-UPSET,6X12 9 112G0612
WASHER SPRING 6MM 10 461F0600
WASHER PLAIN 6MM 11 410B0600
BOLT,FLANGED,10X115 12 92001-1603
WASHER SPRING 10MM 13 461F1000
NUT,10MM 14 314B1000
CAP PIPE END 15 32112-001
LOCK ASSY-STEERING 16 27016-029
LOCK ASSY,STEERING 16 27016-042 MC1A/B
UNAVAILABLE IN PRICE BOOK 17 27018-01570
KEY SET-STRNG #271 17 27018-015-71
KEY SET-STRNG #272 17 27018-015-72
KEY SET-STRNG #273 17 27018-015-73
KEY SET-STRNG #274 17 27018-015-74
KEY SET,#401 17 27008-063-01
KEY SET,#402 17 27008-063-02
KEY SET,#403 17 27008-063-03
KEY SET,#404 17 27008-063-04
KEY SET,#405 17 27008-063-05
KEY SET,#406 17 27008-063-06
KEY SET,#407 17 27008-063-07
KEY SET,#408 17 27008-063-08
KEY SET,#409 17 27008-063-09
KEY SET,#410 17 27008-063-10
KEY SET,#411 17 27008-063-11
KEY SET,#412 17 27008-063-12
KEY SET,#413 17 27008-063-13
KEY SET,#414 17 27008-063-14
SCREW-TAPPING 18 92008-007
CAP,STEERING LOCK 20 11012-1134
SPRING-STEERING LOCK 21 27032-001
REFLECTOR,REFLEX 22 28001-026
BAND-CHAIN OILER TANK 24 92072-039
