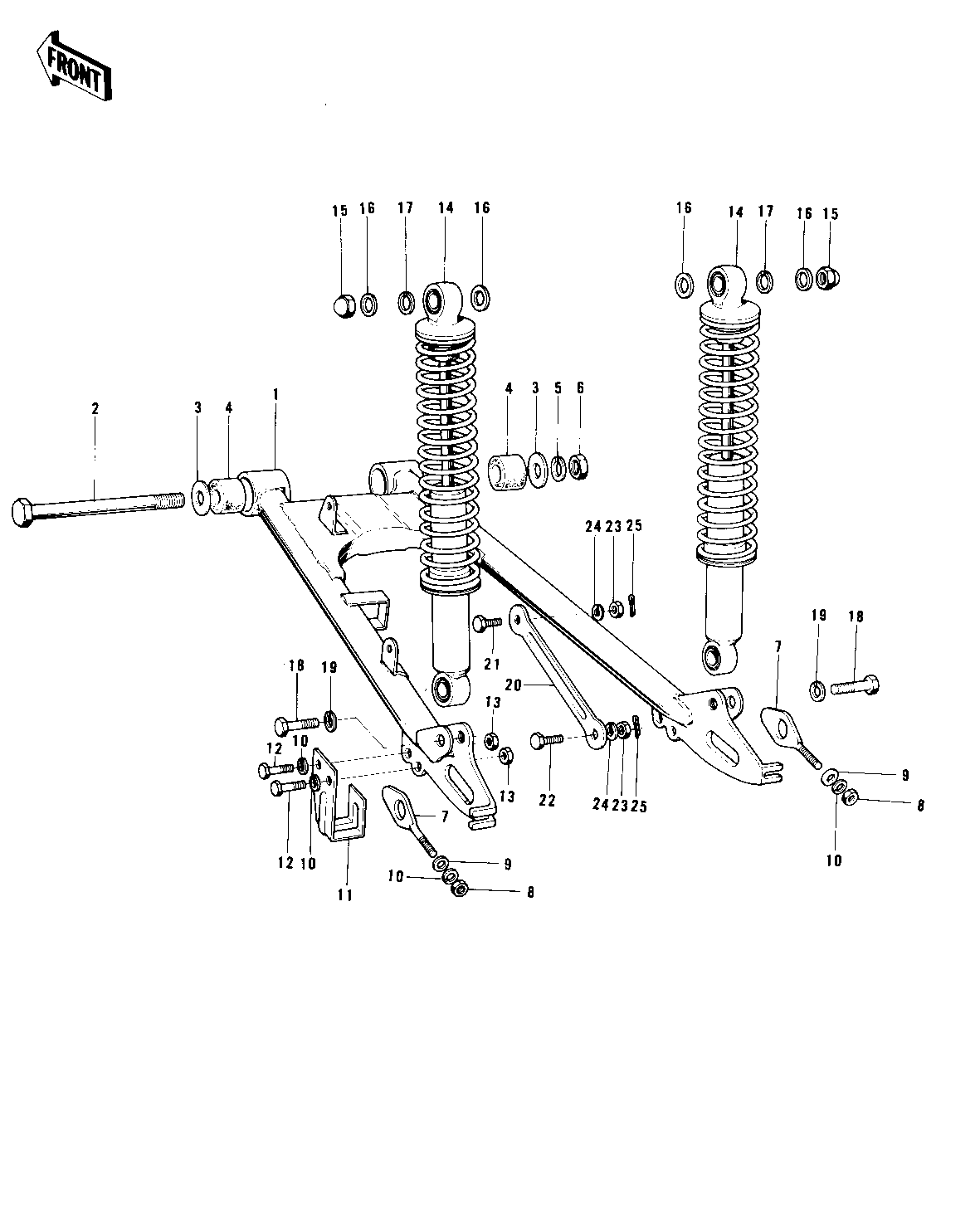

1974 MC1M - SWING ARM/SHOCK ABSORBERS ('73-'75 MC1/M

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM,SWINGING 1 33001-055
SHAFT,SWING ARM PIVOT 2 33032-043
WASHER PLAIN 12MM 3 410B1200
BUSH SWING ARM SHAFT 4 92092-005
WASHER SPRING 12MM 5 461F1200
NUT-HEX-FINE 6 314B1200
ADJUSTER CHAIN 7 33040-008
NUT 6MM 8 311B0600
WASHER PLAIN 6MM 9 410B0600
WASHER SPRING 6MM 10 461F0600
GUARD,CHAIN 11 55020-012
BOLT-UPSET 6X14 12 112B0614
BOLT-UPSET 6X14 12 112B0614
NUT 6MM 13 311B0600
SHOCK ABSBR RR 14 45014-100
SHOCK ABSBR RR 14 45014-100 MC1A/B
NUT 12MM 15 92020-014
WASHER PLAIN 12MM 16 410B1200
WASHER SPRING 12MM 17 461F1200
BOLT HEX HEAD 10X28 18 113N1028
WASHER SPRING 10MM 19 461F1000
TORQUE LINK,RR BRAKE 20 43007-037
BOLT TORQUE LINK FIT 21 92003-017
BOLT HEX HEAD 10X25 22 92003-003
NUT,10MM 23 314B1000
WASHER SPRING 10MM 24 461F1000
PIN COTTER 2.0X15 25 550D2015
