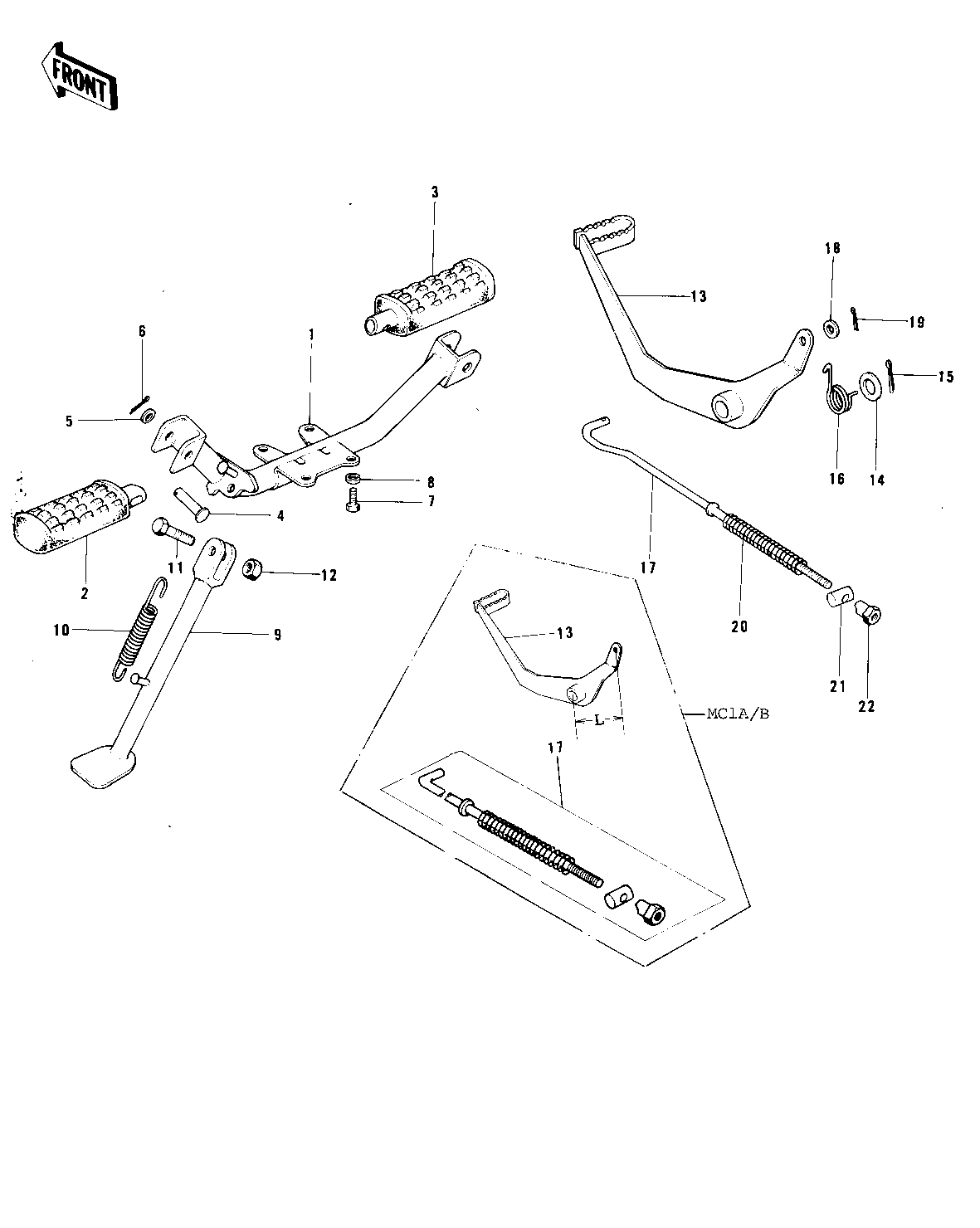

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR,FOOTREST 1 34002-047
STEP-ASSY,FR,LH 2 34027-1114
STEP-ASSY,FR,LH 2 34027-1114 MC1A/B
STEP-ASSY,FR,RH 3 34027-1115
STEP-ASSY,FR,RH 3 34027-1115 MC1A/B
PIN-FOOTREST BAR FIT 4 92043-080
WASHER PL 22.5X36X2.3 5 92022-204
PIN COTTER 2.0X15 6 550D2015
BOLT-SMALL-UPSET,8X16 7 115G0816
BOLT HEX HEAD 8X16 8 116B0816
STAND-SIDE 9 34024-1013
STAND-SIDE 9 34024-1013 MC1A/B
SPRING MAIN STAND 10 34023-005
BOLT,HEX HEAD,10X25 11 113G1025
NUT,10MM 12 314B1000
PEDAL,BRAKE 13 43001-053
PEDAL,BRAKE 13 43001-062 1 66M/M MC1A/B
WASHER BRAKE PEDAL 14 92022-085
PIN COTTER 3.0X30 15 550D3030
SPRING-BRAKE PEDAL 16 43005-020
ROD,BRAKE 17 43011-024
ROD ASSY,BRAKE 17 43010-019 MC1A/B
WASHER PLAIN 6MM 18 410B0600
PIN COTTER 2.0X15 19 550D2015
SPRING,BRAKE ROD 20 43012-001
PIN BRAKE 21 92043-039
NUT-BRAKE ROD ADJUST 22 92015-042
