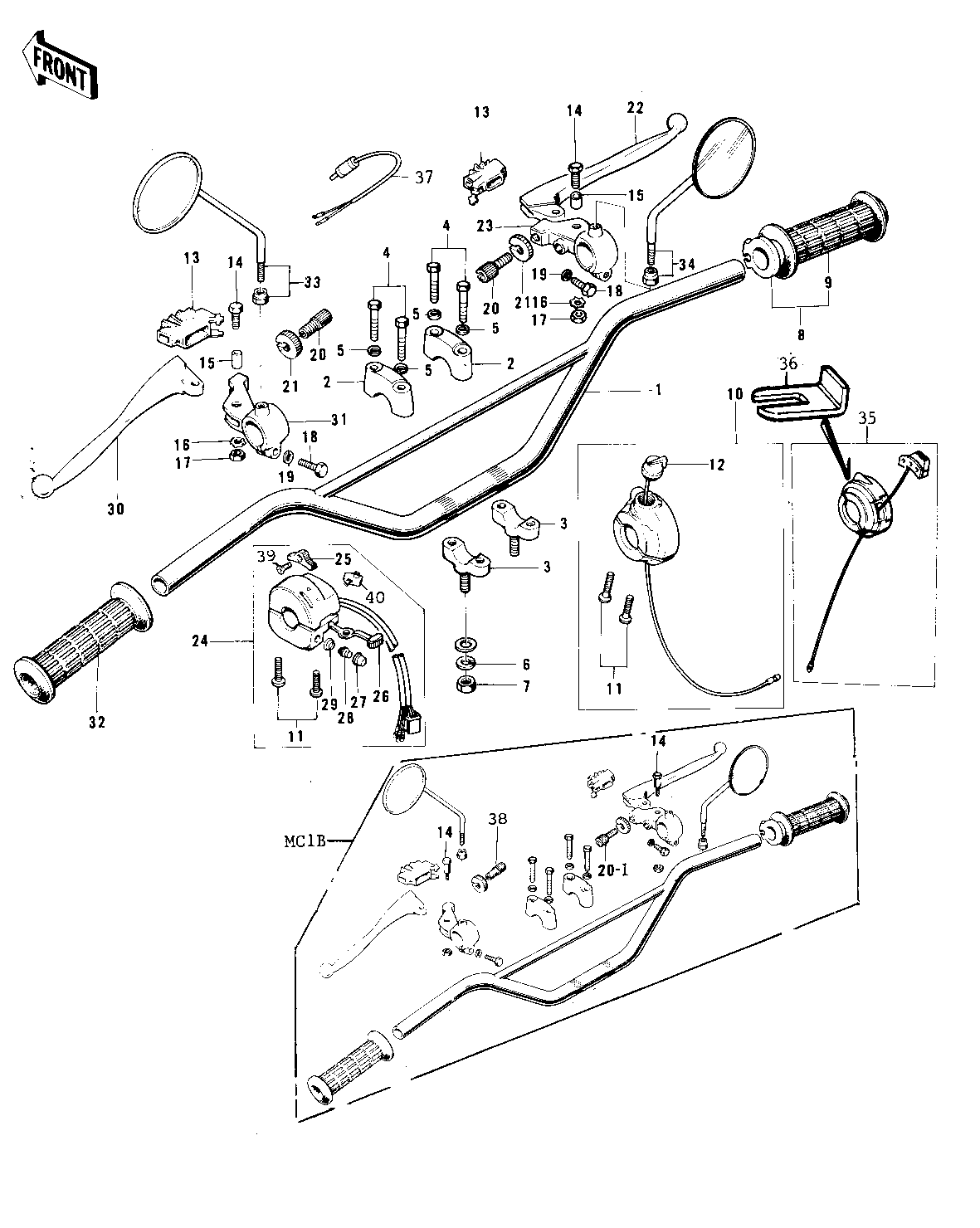

1974 MC1M - HANDLEBAR ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-024
HOLDER UPPER HANDLBAR 2 46012-004
HOLDER,HANDLEBAR,BUFF 3 46012-002-80
BOLT 8X38 4 92001-1405
WASHER SPRING 8MM 5 461F0800
WASHER SPRING 10MM 6 461F1000
NUT,10MM 7 314B1000
GRIP ASSY-THROTTLE 8 46019-020
GRIP ASSY,THROTTLE 8 46019-034 MC1B
RUBBER-R.H. GRIP 9 46061-013
CASE ASSY,R.H,BLACK 10 46018-020-10
CASE ASSY,R.H,BLACK 10 46018-020-10 BLACK MC1A
SCREW-PAN-CROS,5X25 11 220B0525
SWITCH-ENGINE STOP 12 46027-008
DUST COVER 13 46071-002
BOOTS,LEVER HOLDER 13 49006-1017 MC1B
BOLT HEX HEAD 5X20 14 92007-020
BOLT,5MM 14 92007-039 MC1B
COLLAR LEVER 15 46059-011
WASHER LOCK 5MM 16 464H0500
NUT 5MM 17 312B0500
NUT-LOCK,5MM 17 92019-014 MC1B
BOLT HEX HEAD 6X25 18 110N0625
WASHER PLAIN 6MM 19 410B0600
SCREW,CABLE ADJUST 20 46055-010
SCREW,CABLE ADJUST 20-1 46055-010 MC1B
NUT LOCK ADJUST SCREW 21 46056-001
LEVER FRONT BRAKE 22 46058-004
HOLDER-FR BRK LEV,BLK 23 46060-009-21
HOLDER-FR BRK LEV,BLK 23 46060-009-21 BLACK MC1A/B
CASE ASSY,L.H 24 46091-016
CASE ASSY,L.H 24 46091-016-10 BLACK MC1A
CASE ASSY,L.H 24 46091-040 MC1B
L.H GRIP SWITCH KIT 25, 39 99990-531 FOR 46091-040
KNOB-L.H SWITCH 25 46044-011
KNOB-L.H SWITCH 25 46044-011 FOR 99990-531
KNOB-SWITCH 26 46044-006
SWITCH ASSY,HORN BUTN 27 27010-1009
SWITCH ASSY,HORN BUTN 28 27010-1009
SWITCH ASSY,HORN BUTN 29 27010-1009
LEVER-CLUTCH 30 46092-015
HOLDER-CLUTCH LEV,BLK 31 46094-011-21
HOLDER-CLUTCH LEV,BLK 31 46094-011-21 BLACK MC1A/B
RUBBER-L.H.GRIP 32 46075-018
RUBBER-L.H GRIP 32 46075-019 MC1B
REAR VIEW MIRROR,R.H 33 56002-020
REAR VIEW MIRROR,L.H 34 56003-009
CASE ASSY,R.H 35 46018-036
HOLDER,CONTROL CABLE 36 46037-023 FOR 46018-036
SWITCH-FR. BRAKE LAMP 37 27021-004 MC1A
SCREW,CABLE ADJUST 38 46055-009 MC1B
SCREW CNTSNK HD 3X8 39 221B0308A
SWITCH L.H 40 46089-003 MC1/A
SWITCH ASSY,L.H 40 46089-015 MC1B
