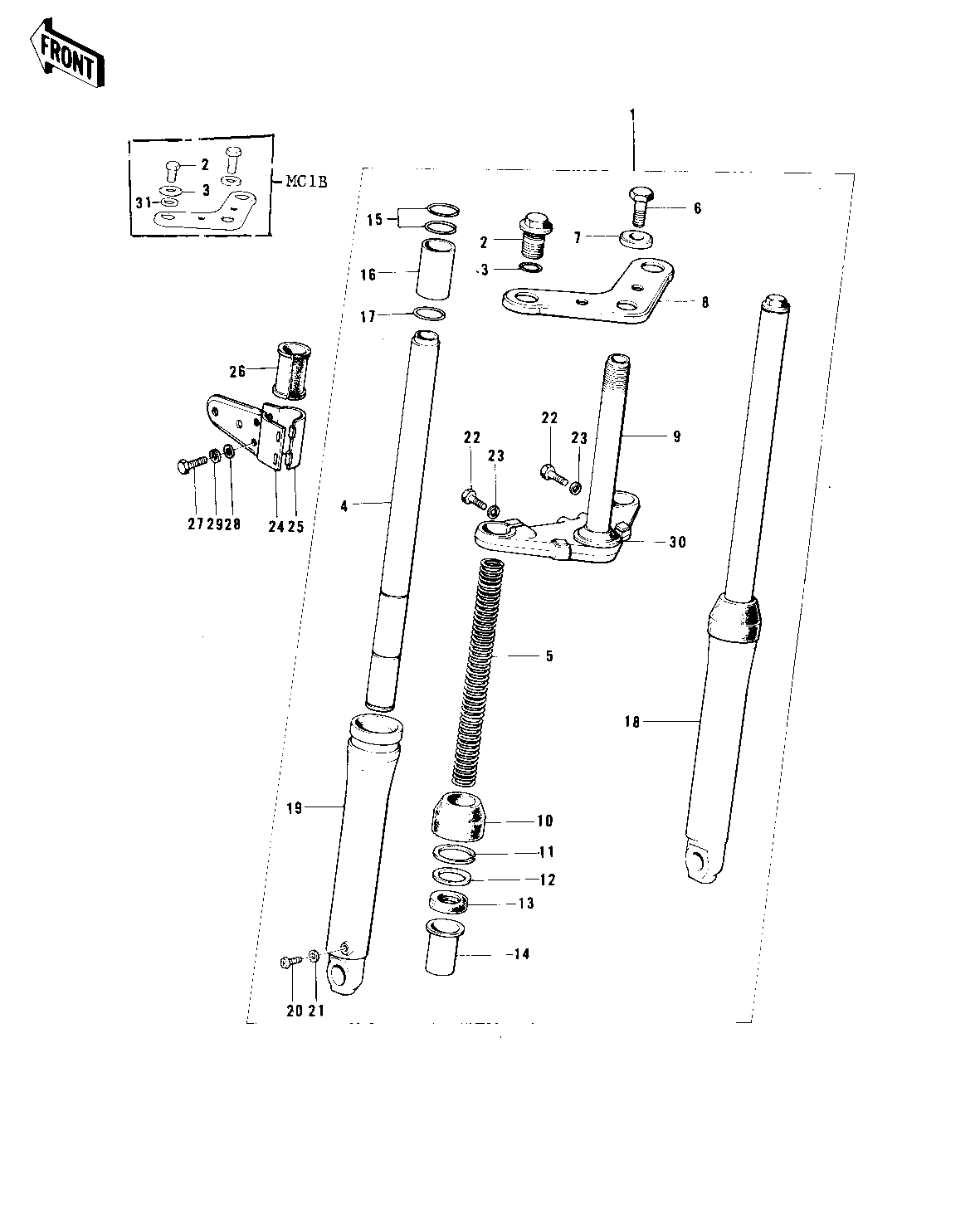

1974 MC1M - FRONT FORK ('73-'75 MC1/MC1-A/MC1-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-143
FORK-FRONT 1 44001-143 MC1A
FORK-FRONT 1 44001-161 MC1B
BOLT,FORK TOP 2 44032-010
BOLT 2 92001-1742 MC1B
"0" RING,FORK TOP BLT 3 44046-020
WASHER 3-1 92022-1381 MC1B
TUBE,FORK INNER 4 44013-045
TUBE,FORK INNER 4 44013-051 MC1B
SPRING,FORK INNER 5 44026-051
SPRING,FORK 5 44026-055 MC1A/B
BOLT-UPSET,10X30 6 112G1030
WASHER 7 92022-1381
HEAD,STEERING 8 44039-056
STEM,STEERING 9 44037-069
DUST SHIELD,FORK 10 44010-024
CIRCLIP,40MM 11 44044-016
WASHER,FORK OUTER TUB 12 44043-054
SEAL-OIL,OUTER TUBE 13 92049-1075
GUIDE,FORK INNER TUBE 14 44015-016
RING,INNER TUBE GUIDE 15 44020-003
PISTON,FORK 16 44018-007
CIRCLIP,FORK PISTON 17 44044-017
TUBE,RH,FORK OUTER 18 44006-050
TUBE,LH,FORK OUTER 19 44005-052
SCREW PAN HEAD 4X6 20 220B0406
GASKET,FORK DRAIN PLG 21 44045-046
BOLT,HEX HEAD 10X35 22 92001-1252
WASHER SPRING 10MM 23 461F1000
BRACKET,TURN SIGNAL 24 23064-016
BRACKET,TURN SIGNAL 25 23064-017
DAMPER RUBBER,HD LAMP 26 92075-210
BOLT-HEX HEAD,6X18 27 92007-027
WASHER PLAIN 6MM 28 411B0600
WASHER SPRING 6MM 29 461F0600
CONE LOWER BEARING 30 92047-004
GASKET,FORK TOP BOLT 31 44045-053 MC1B
