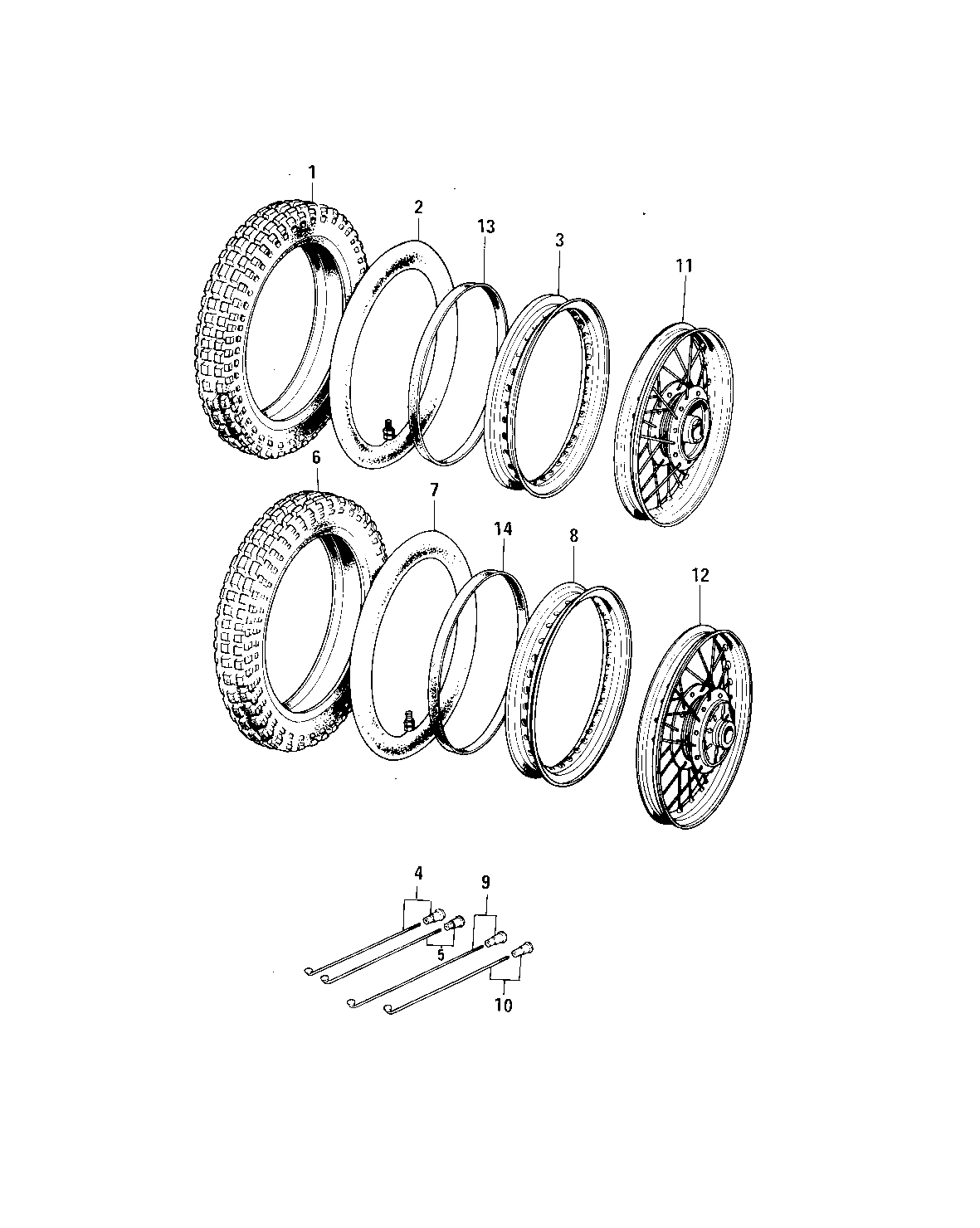

1974 MC1M - WHEELS/TIRES ('73-'75 MC1/MC1-A/MC1-B)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 41019-015
TUBE 225/250-16 2 41022-041
RIM,1.40X16W 3 41025-069
SPOKE-ASY,FR INNER 4 41027-065
SPOKE-ASY FR OUTER 5 41028-065
TIRE 275-14 K250 R 6 41002-1271
UNAVAILABLE IN PRICE BOOK 6 41019-018 MC1B
TUBE 275/410/425-14 7 41022-042
RIM,1.60X14W 8 41025-070
SPOKE-ASY,RR INNER 9 41027-066
SPOKE-ASY RR OUTER 10 41028-066
WHEEL ASSY,FRONT 11 41074-041
WHEEL ASSY,FRONT 11 41074-041 MC1A/B
WHEEL ASSY,REAR 12 41073-5017
BAND,RIM,FRONT 13 41023-024
BAND,RIM,4.10-14 14 41023-1025
