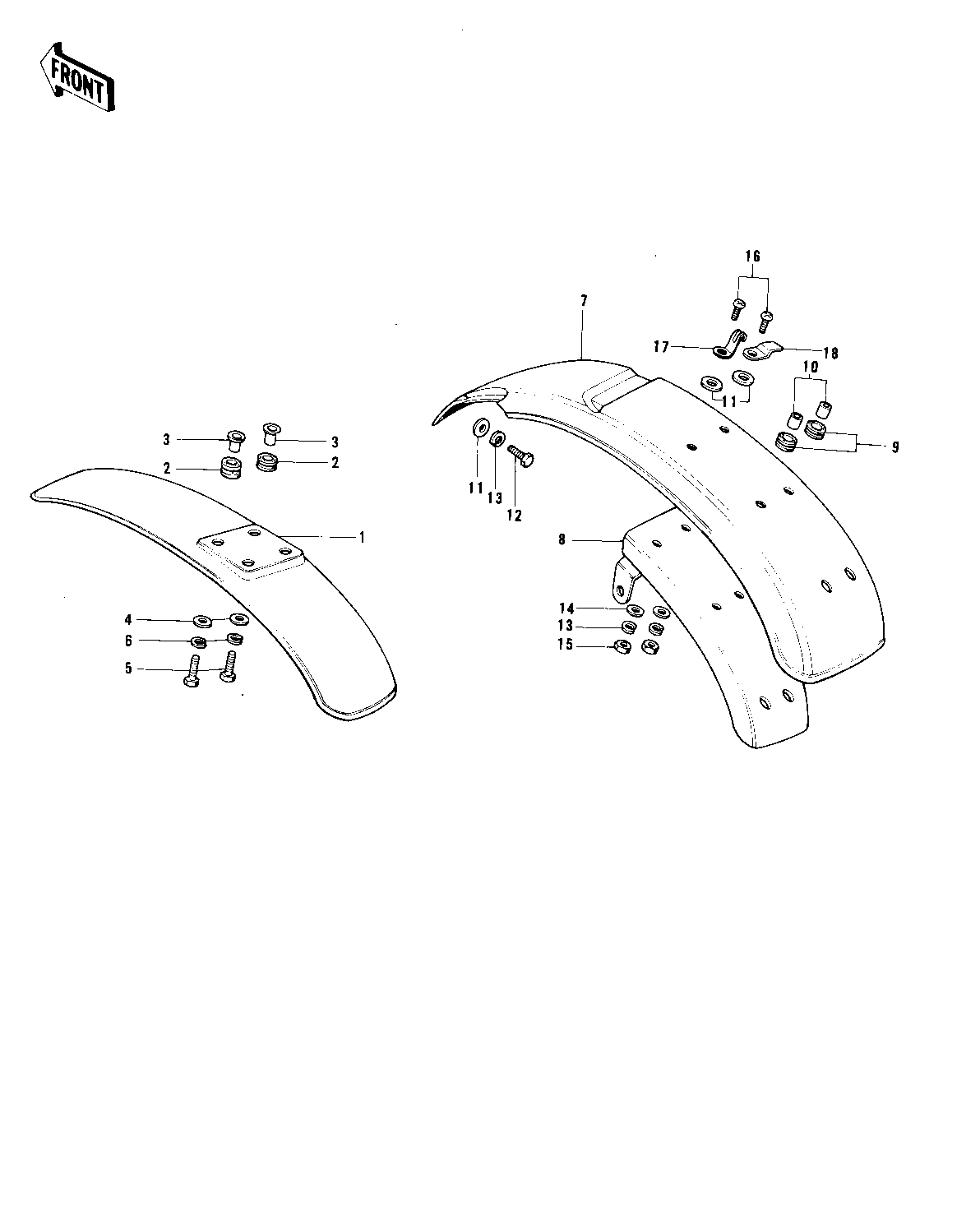

1974 MC1M - FENDERS ('73-'75 MC1/MC1-A/MC1-B)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FENDER-FR,BLACK | 1 | 35004-080-10 | MC1/B | ||
FENDER-FR,C.BLUE | 1 | 35004-080-1N | MC1A/B | ||
DAMPER RUBBER | 2 | 92075-103 | |||
COLLAR | 3 | 92027-153 | |||
WASHER 6.5X20X1.6T | 4 | 92022-125 | |||
BOLT-UPSET | 5 | 112G0618 | |||
BOLT-UPSET | 5 | 112G0618 | |||
WASHER SPRING 6MM | 6 | 461F0600 | |||
FENDER-RR | 7 | 35022-094 | MC1/B | ||
FENDER-RR,C.BLUE | 7 | 35022-094-1N | MC1A/B | ||
GUSSET,REAR FENDER | 8 | 35034-019 | |||
DAMPER RUBBER,RR FENR | 9 | 92075-209 | |||
COLLAR | 10 | 92027-169 | |||
WASHER 6.5X20X1.6T | 11 | 92022-125 | |||
BOLT-UPSET 6X14 | 12 | 112B0614 | |||
BOLT-UPSET 6X14 | 12 | 112B0614 | |||
WASHER SPRING 6MM | 13 | 461F0600 | |||
WASHER PLAIN 6MM | 14 | 411B0600 | |||
NUT 6MM | 15 | 311B0600 | |||
SCREW PAN HEAD 6X16 | 16 | 220B0616 | |||
CLIP WIRING HARNESS | 17 | 35024-002 | |||
CLAMP CABLE | 18 | 92037-020 |
FENDER-FR,BLACK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | MC1/B |
FENDER-FR,C.BLUE | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | MC1A/B |
DAMPER RUBBER | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER 6.5X20X1.6T | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
FENDER-RR | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | MC1/B |
FENDER-RR,C.BLUE | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | MC1A/B |
GUSSET,REAR FENDER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
DAMPER RUBBER,RR FENR | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER 6.5X20X1.6T | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X16 | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
CLIP WIRING HARNESS | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
CLAMP CABLE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
