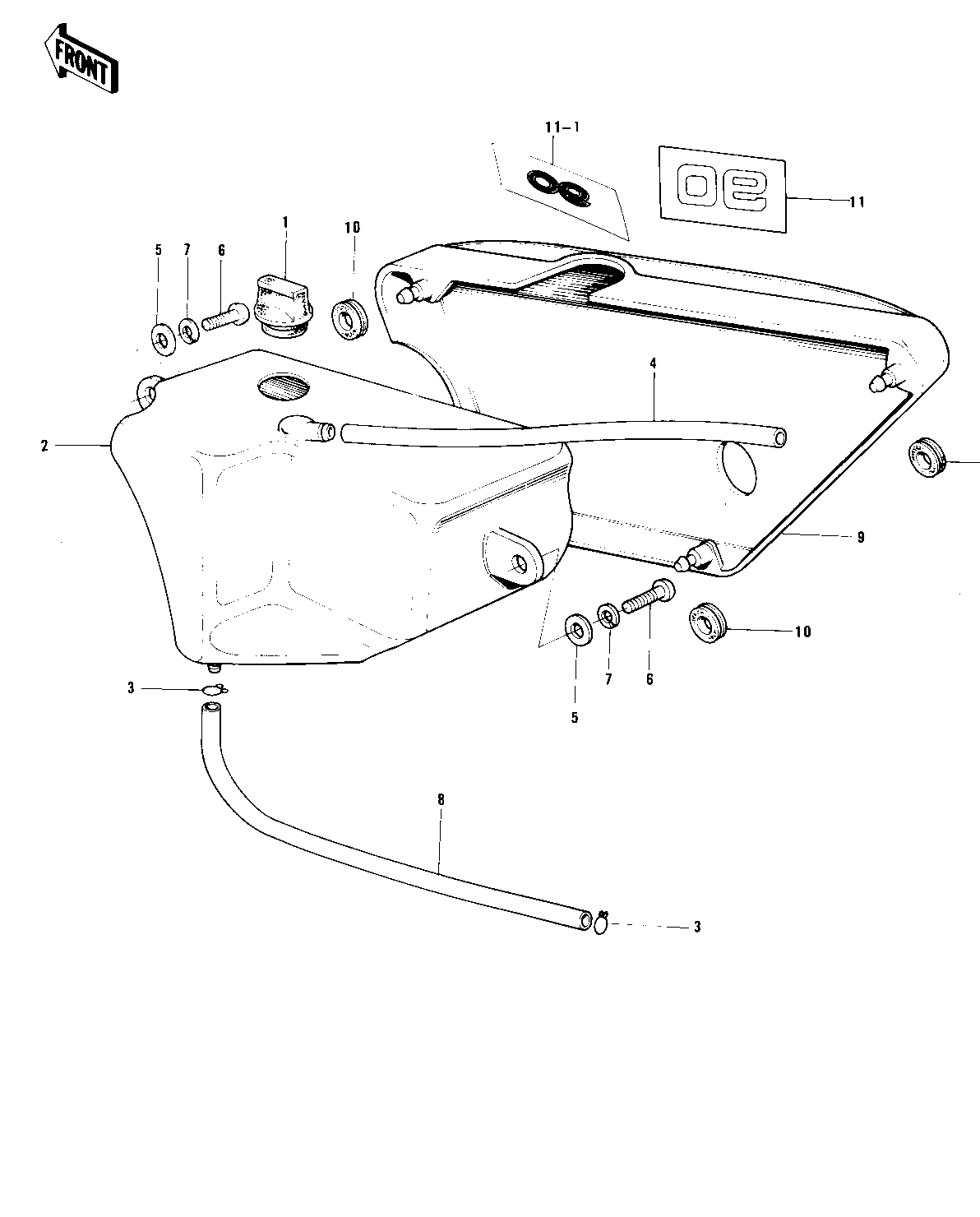

1974 MC1M - SIDE COVER/OIL TANK ('73-'75 MC1/MC1-A/M

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,OIL 1 52003-022
CAP,OIL TANK 1 52003-024 MC1A/B
TANK,OIL 2 52001-037
TANK,OIL 2 52001-1005 MC1A/B
CLAMP FUEL PIPE 3 92037-010
TUBE-VINYL 5X470 4 700Q05470
WASHER 6.5X20X1.6T 5 92022-125
SCREW PAN HEAD 6X16 6 220B0616
WASHER SPRING 6MM 7 461F0600
TUBE,4.5X9X380 8 92059-1691 L=170M/M
9 36007-035
COVER, SIDE,BLACK 9 36001-1042-6Z MC1A/B
GROMMET 10 92071-056
EMBLEM,SIDE COTER 11 56018-157
EMBLEM,SIDE COVER 11-1 56018-181 MC1B
