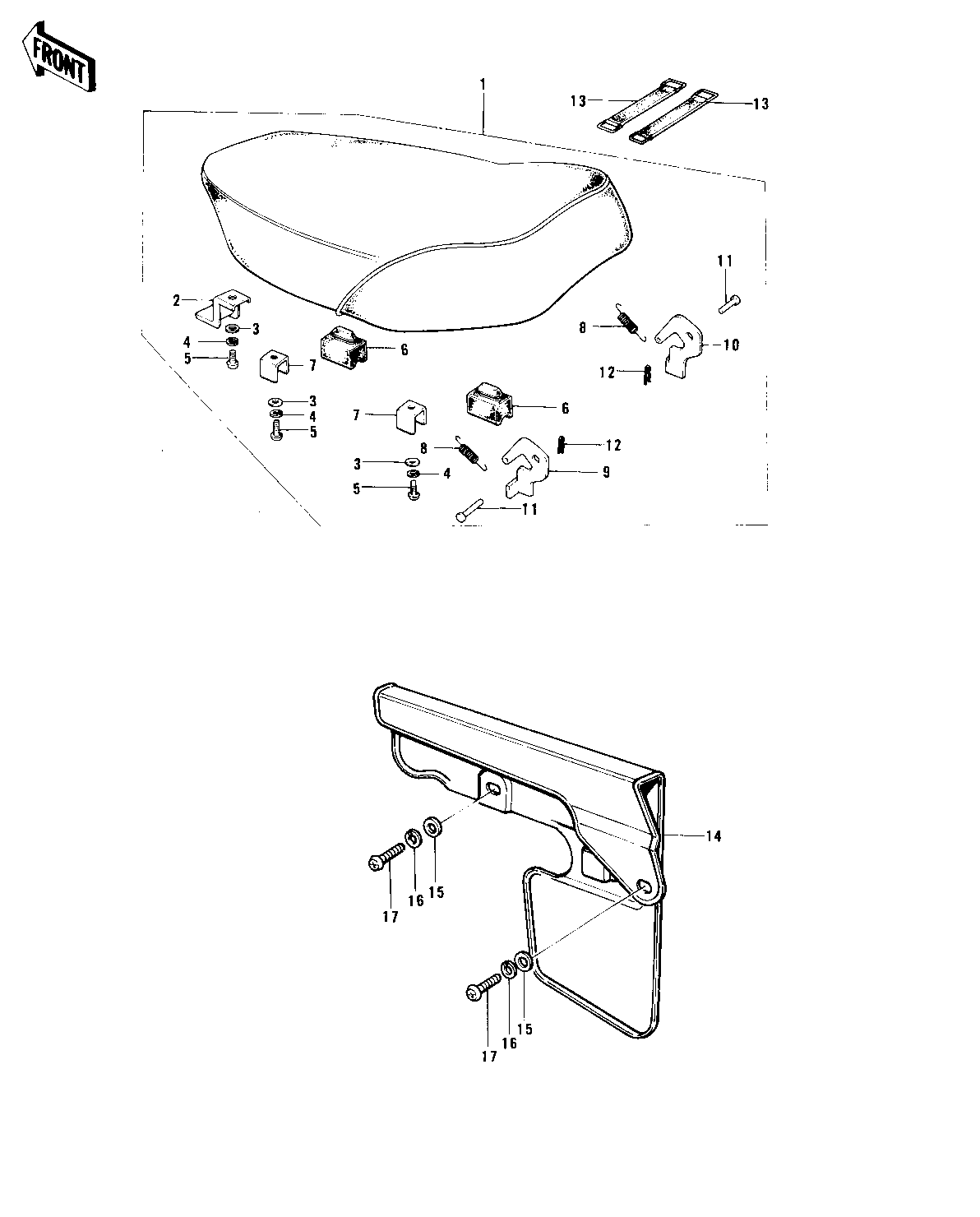

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY 1 53001-1018
BRACKET,SEAT 2 53032-004
WASHER PLAIN 6MM 3 410B0600
WASHER SPRING 6MM 4 461F0600
SCREW PAN HEAD 6X12 5 220B0612
DAMPER RUBBER 6 92075-099
SPRING,SEAT HOOK 7 53012-012
SPRING,HOOK 8 53012-013
HOOK,L.H SEAT 9 53008-031
HOOK,R.H SEAT 10 53008-032
PIN DUAL SEAT PIVOT 11 53011-001
COTTER PIN 12 92041-003
BAND,TOOL 13 92072-066
CASE-CHAIN 14 36014-1024
WASHER PLAIN 6MM 15 411B0600
WASHER SPRING 6MM 16 461F0600
SCREW PAN HEAD 6X12 17 220B0612
