Parts Diagrams |

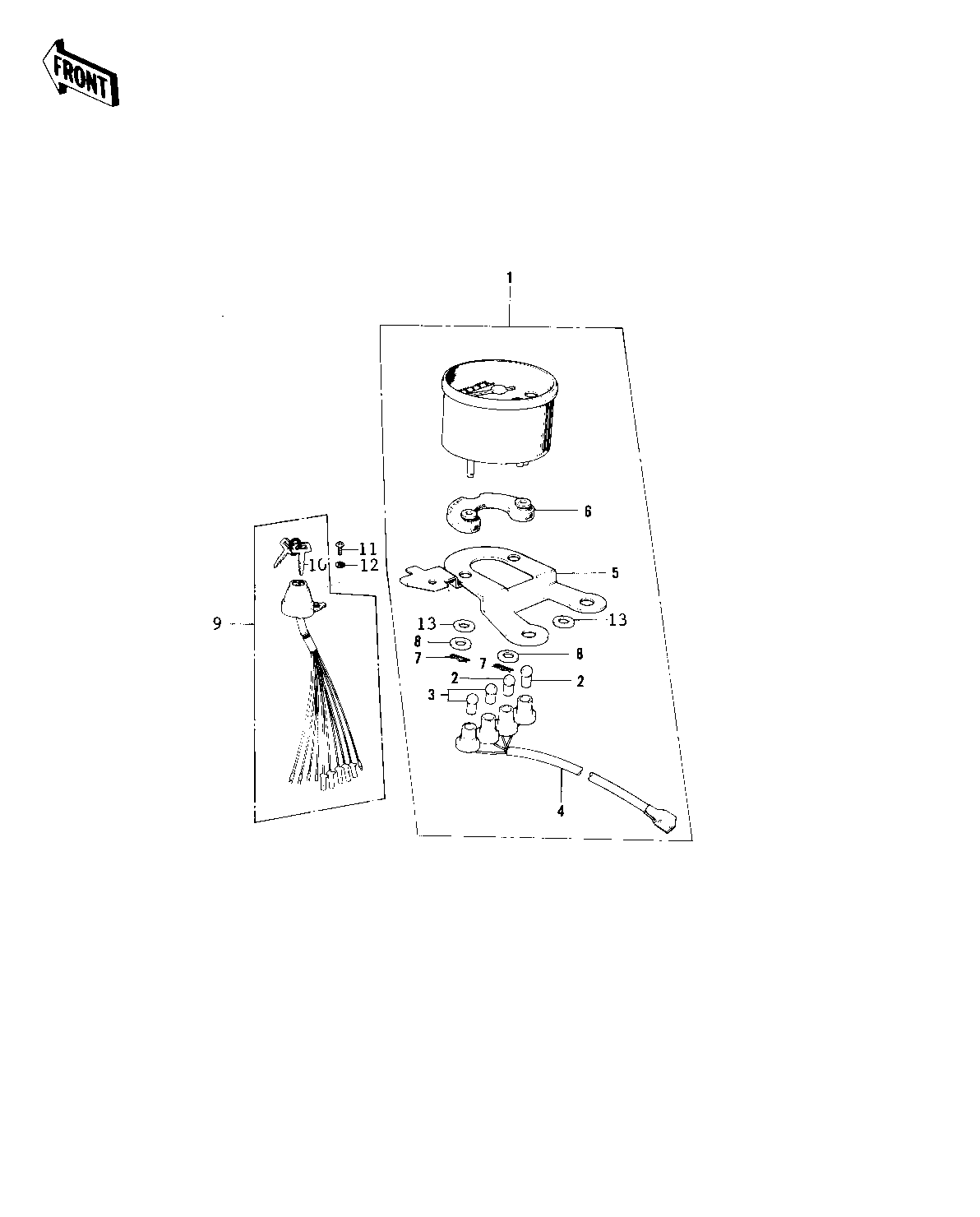

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPEEDOMETER ASY,MPH | 1 | 25001-069 | |||
BULB-6V 3W | 2 | 92069-053 | |||
BULB 6V 1.5W | 3 | 92069-024 | |||
SOCKET,SPEEDOMETER | 4 | 25011-035 | |||
BRACKET,SPEEDOMETER | 5 | 25008-029 | |||
DAMPER RUBBER,SPDMETR | 6 | 25019-017 | |||
PIN,COTER | 7 | 92041-006 | |||
WASHER,PLAIN,6MM | 8 | 92022-263 | |||
SWITCH ASSY,IGNITION | 9 | 27005-056 | |||
SWITCH ASSY,IGNITION | 9 | 27005-074 | MC1A/B | ||
SWITCH ASSY,IGNITION | 9 | 27005-081 | FOR CANADA ONLY | ||
KEY SET,#311 | 10 | 27008-050-11 | |||
KEY SET,#312 | 10 | 27008-050-12 | |||
KEY SET,#313 | 10 | 27008-050-13 | |||
KEY SET,#314 | 10 | 27008-050-14 | |||
KEY SET,#315 | 10 | 27008-050-15 | |||
KEY SET,#401 | 10 | 27008-063-01 | MC1A/B | ||
KEY SET,#402 | 10 | 27008-063-02 | MC1A/B | ||
KEY SET,#403 | 10 | 27008-063-03 | MC1A/B | ||
KEY SET,#404 | 10 | 27008-063-04 | MC1A/B | ||
KEY SET,#405 | 10 | 27008-063-05 | MC1A/B | ||
KEY SET,#406 | 10 | 27008-063-06 | MC1A/B | ||
KEY SET,#407 | 10 | 27008-063-07 | MC1A/B | ||
KEY SET,#408 | 10 | 27008-063-08 | MC1A/B | ||
KEY SET,#409 | 10 | 27008-063-09 | MC1A/B | ||
KEY SET,#410 | 10 | 27008-063-10 | MC1A/B | ||
KEY,BLANK | 10 | 27008-1024 | |||
KEY,BLANK | 10 | 27008-1025 | |||
KEY,BLANK | 10 | 27008-1030 | |||
KEY,BLANK | 10 | 27008-1031 | |||
KEY,BLANK | 10 | 27008-1032 | |||
KEY,BLANK | 10 | 27008-1033 | |||
SCREW PAN HEAD 6X12 | 11 | 220B0612 | |||
WASHER SPRING 6MM | 12 | 461F0600 | |||
UNAVAILABLE IN PRICE BOOK | 13 | 25019-021 | MC1B |
