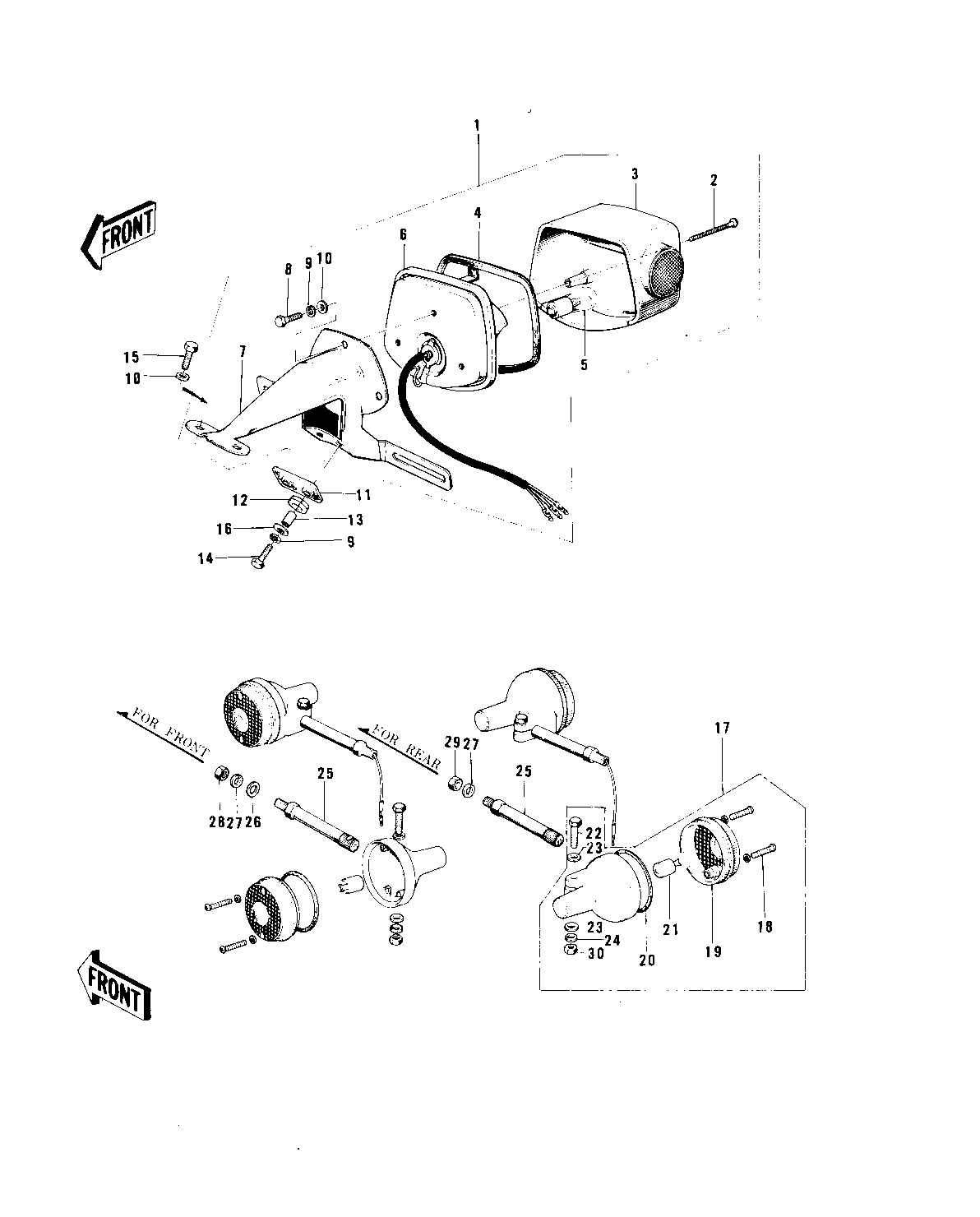

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP ASSY,TAIL,BLACK | 1 | 23024-060-10 | |||
LAMP ASSY,TAIL,BLACK | 1 | 23024-060-10 | MC1B | ||
SCREW | 2 | 220R0455 | |||
LENS,TAIL LAMP | 3 | 23026-028 | |||
GASKET,TAIL LAMP LENS | 4 | 23028-019 | |||
BULB,60-32/3CP | 5 | 92069-074 | |||
BODY COMP TAIL LAMP | 6 | 23027-1018 | |||
CASE,TAIL LAMP | 6 | 23027-037 | MC1B | ||
BKT,LICENSE PLT,BLACK | 7 | 23036-034-10 | |||
BOLT-UPSET 6X14 | 8 | 112B0614 | |||
BOLT-UPSET 6X14 | 8 | 116B0614 | |||
WASHER SPRING 6MM | 9 | 461F0600 | |||
WASHER PLAIN 6MM | 10 | 411B0600 | |||
DAMPER RUBBER,TL LAMP | 11 | 35039-008 | |||
DAMPER RUBBER | 12 | 92075-121 | |||
COLLAR,REAR FENDER | 13 | 92027-162 | |||
BOLT-UPSET | 14 | 110B0625 | |||
BOLT-UPSET | 14 | 112G0625 | |||
BOLT-UPSET | 15 | 112G0630 | |||
BOLT-UPSET | 15 | 112G0630 | |||
WASHER PLAIN, 6M/M | 16 | 92022-125 | |||
LAMP ASSY,TURN SIGNAL | 17 | 23040-038 | |||
SCREW-PAN HEAD,4X20 | 18 | 220E0420A | |||
LENS,TURN SIGNAL LAMP | 19 | 23048-1001 | |||
GASKET-SIG LAMP LENS | 20 | 23050-003 | |||
BULB,6V 21CP | 21 | 92069-056 | |||
BOLT-UPSET | 22 | 112G0630 | |||
WASHER PLAIN 6MM | 23 | 411B0600 | |||
WASHER SPRING 6MM | 24 | 461F0600 | |||
BRACKET,TURN SIGNAL | 25 | 23051-047 | |||
WASHER PLAIN 12MM | 26 | 411B1200 | |||
WASHER SPRING 12MM | 27 | 461F1200 | |||
NUT,12MM | 28 | 314N1200A | |||
NUT-HEX-FINE,12MM | 29 | 315B1200 | |||
NUT 6MM | 30 | 311B0600 |
