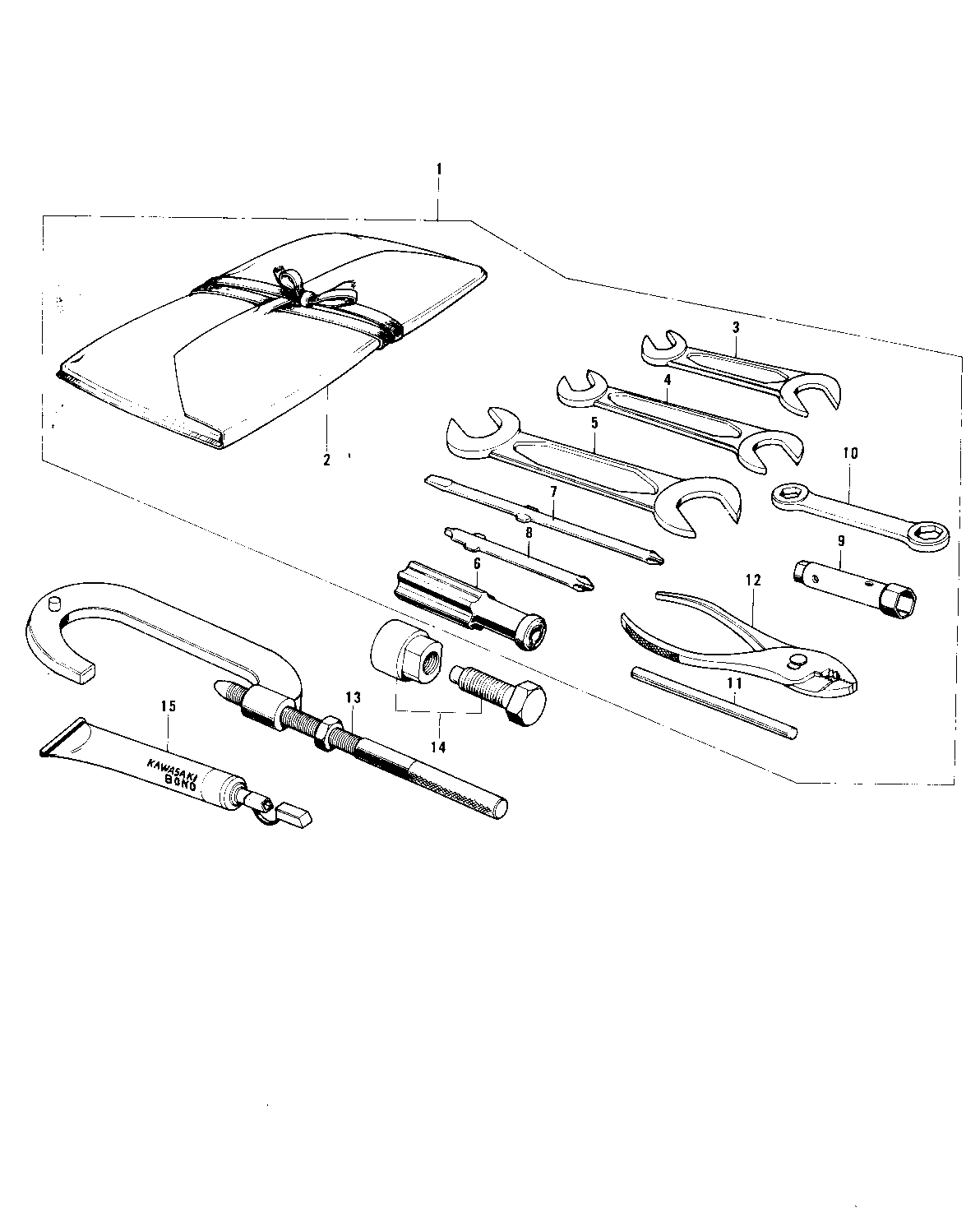

1974 MC1M - OWNER TOOLS/SPECIAL SERVICE TOOLS ('73-'

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 56007-031
BAG,TOOL 2 56008-008
WRENCH,OPEN,8X10 3 92126-001
WRENCH,OPEN END,12X13 4 92126-002
TOOL-WRENCH,OPEN END, 5 92110-1153
92106-1001 (Canada) 6 92106-002
TOOL-DRIVER 7 92107-1052
SCREW DRIVER #3 PHLIP 8 92107-005
WRENCH,BOX,17X21 9 92110-012
92110-1022 (Canada) 10 92108-009
92111-005 (Canada) 11 92111-007
92112-003 (Canada) 12 92112-005
57001-1243 (Canada) 13 56019-040 OPTION
57001-252 (Canada) 14 56019-033 OPTION
LIQUID GASKET 15 92104-002 OPTION
