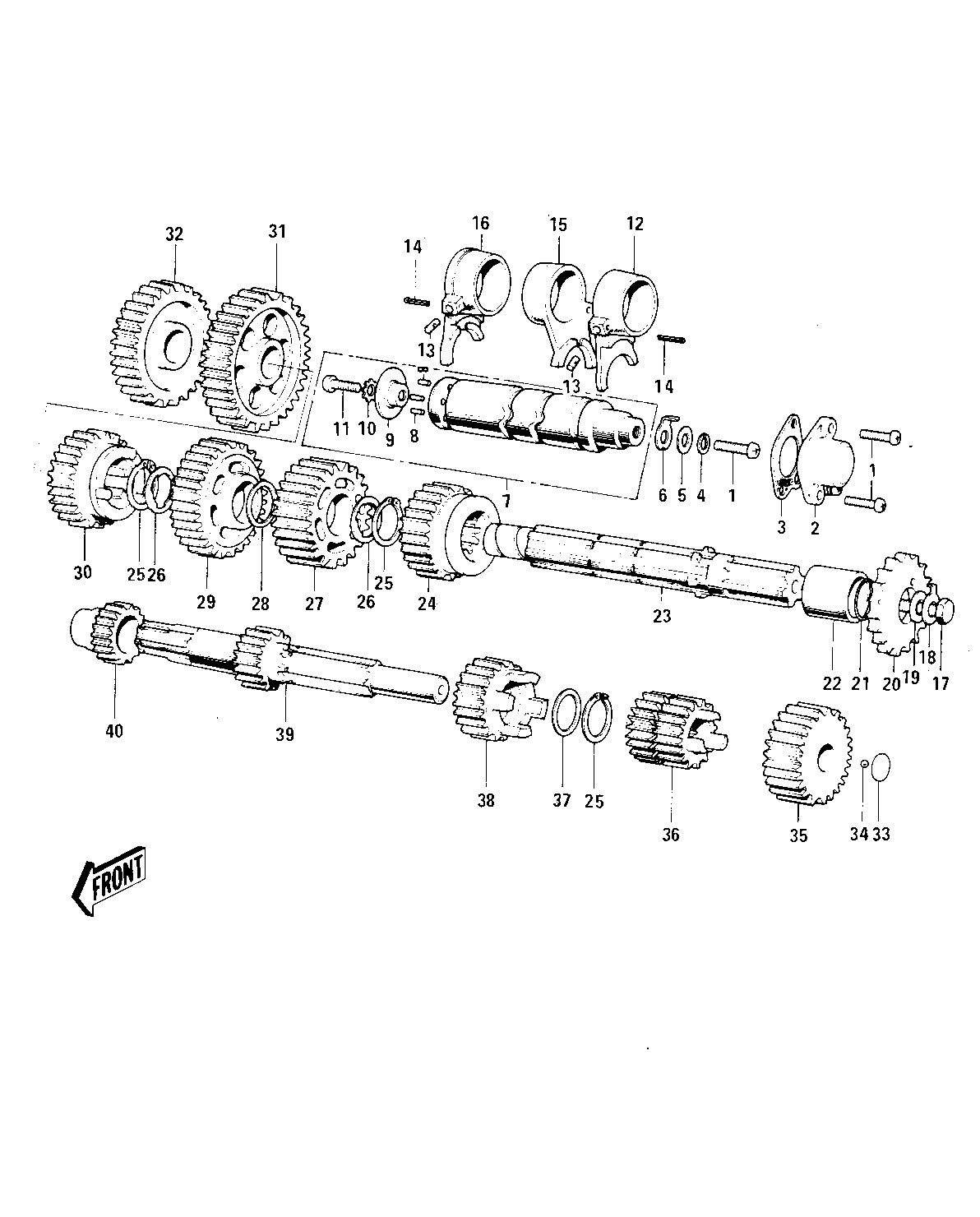

1974 MC1M - TRANSMISSION/CHANGE DRUM ('74-'75 MC1M/M

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X16 1 220B0616
SWITCH,NEUTRAL 2 13151-1001
GASKET NEUTRAL SWITCH 3 13146-002
WASHER SPRING 6MM 4 461F0600
WASHER PLAIN 6MM 5 410B0600
ROTOR,NEUTRAL INDICTR 6 21007-1003
DRUM ASSY-GEAR CHANGE 7 13239-005
PIN GEAR CHANGE DRUM 8 92042-014
PLATE CHANGE DRUM PIN 9 13142-008
WASHER LOCK 6MM 10 464H0600
SCREW PAN HEAD 6X14 11 220B0614
FORK SELECTOR 3RD 12 13140-009
PIN SELECT FORK GUIDE 13 92043-005
PIN COTTER 3.0X20 14 550D3020
FORK SELECTOR 4TH-TOP 15 13140-017
FORK SELECTOR LOW-2ND 16 13140-010
BOLT-SMALL-UPSET,8X16 17 115G0816
WASHER,LOCK,8MM 18 92030-012
WASHER,ENGINE SPRCKT 19 92022-266
SPROCKET-OUTPUT,14T 20 13144-1058 S T D
ENGINE SPROCKET,13T 20 13144-053 OPTION
ENGINE SPROCKET,1ST 20 13144-054 OPTION
"0" RING 21 92055-022
COLLAR,ENG NPROCKET 22 92027-179
SHAFT OUTPUT 23 13128-021
TOP GEAR OUTPUT SHAFT 24 13137-012 23T
CIRCLIP 25 92033-014
WASHER-LOCK 26 92024-030
3RD GEAR OUTPUT SHAFT 27 13133-005 26T
WASHER THRUST 28 92022-146 1 1 6M/M
2ND GEAR OUTPUT SHAFT 29 13131-008 30T
GEAR-TRANSMISSION SPU 30 13129-1708 24T
LOW GEAR OUTPUT SHAFT 31 13129-010 35T
IDLE GEAR 32 13073-004 30T
WASHER THRUST 33 92022-115
BALL STEEL 7/32' 34 600A0700
GEAR,INPUT TOP,24T 35 13129-1927 24T
2ND&3RD GEAR,DRIVE 36 13129-1052 2ND 17T,3RD 20T
WASHER THRUST 37 92022-118 1 12M/M
4TH GEAR,DRIVE 38 13129-1053 22T
SHAFT,DRIVE 39 13127-032 12T
PINION KICKSTARTER 40 13075-004 16T
