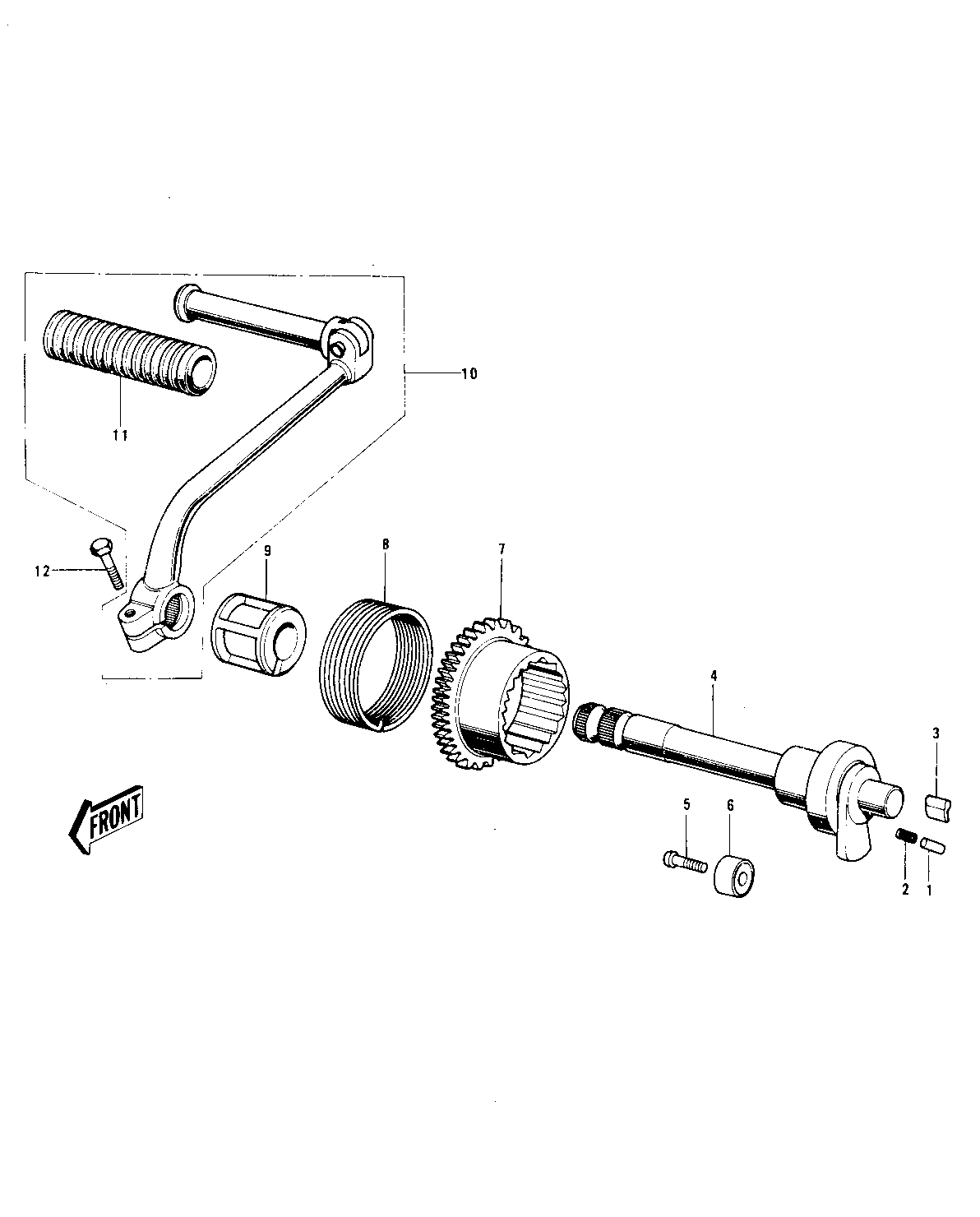

1974 MC1M - KICKSTARTER MECHANISM ('74-'75 MC1M/MC1M

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
P/N,KICKSTARTER PAWL 1 92043-013
SPRING KICK PAWL 2 92081-014
PAWL, KICKSTARTER 3 13069-005
SHAFT, KICKSTARTER 4 13068-007
SCREW CNTSNK HD 6X20 5 221B0620
STOPPER KICKSTARTER 6 13072-003
GEAR KICKSTARTER 7 13068-007
SPRING KICKSTARTER 8 92083-004
GUIDE KICK SPRING 9 13070-003
PEDAL, KICKSTARTER 10 13064-007
RUBBER KICK PEDAL 11 13063-002
BOLT-SMALL-UPSET 8X25 12 115G0825
