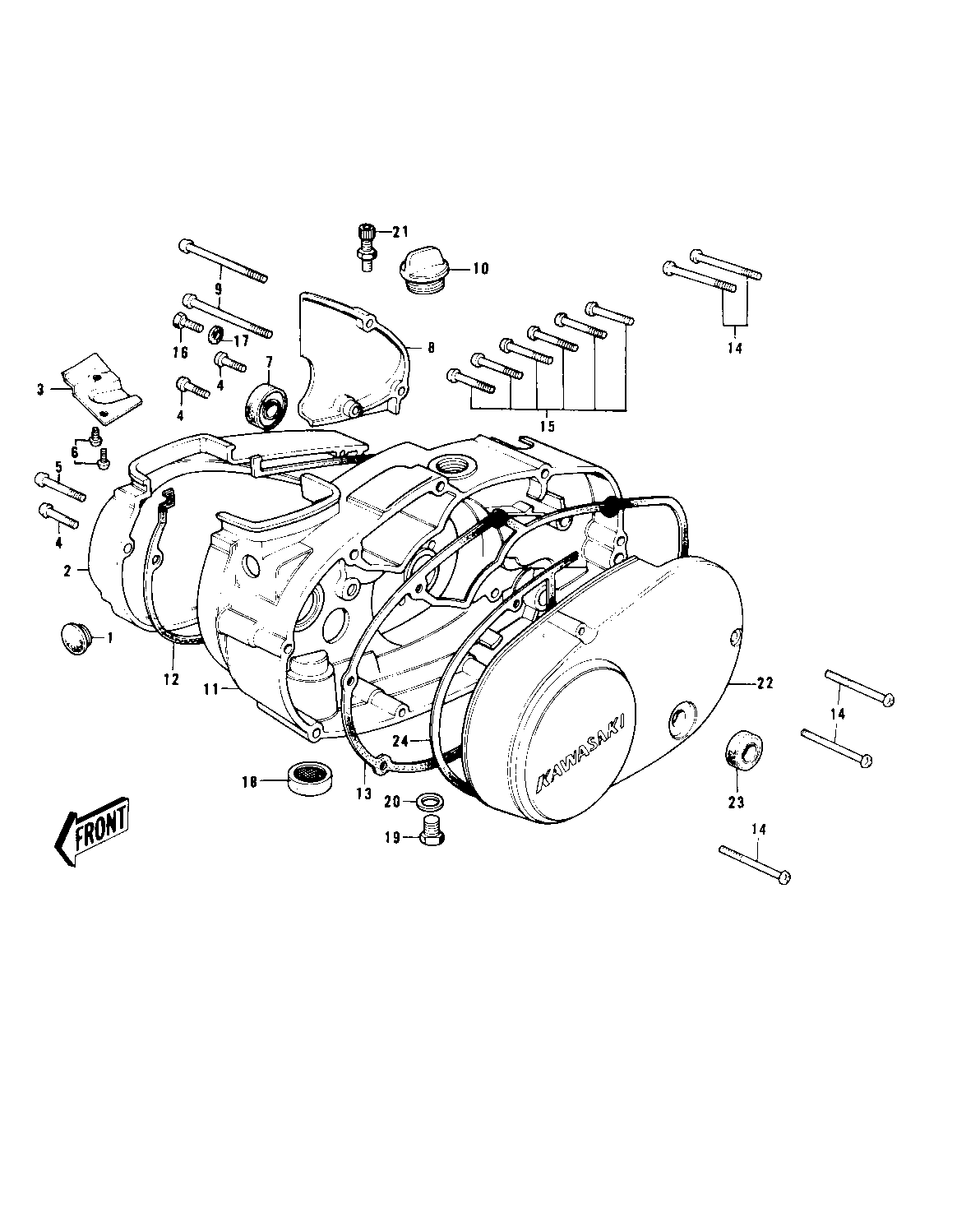

1974 MC1M - ENGINE COVERS ('74-'75 MC1M/MC1M-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP CARB MOUNT HOLE 1 14039-001
COVER,CARB.L.SILVER 2 14030-053-75 1 CAFING SILVER
COVER,CARB BARREL 2 14030-1005 MC1MA BUFF FINISH
COVER,CLUTCH CABLE 3 14025-1137
SCREW PAN HEAD 6X20 4 220B0620
SCREW PAN HEAD 6X35 5 220B0635
SCREW PAN HEAD 6X12 6 220B0612
OIL SEAL TB14257 7 653B142507
COVER,OIL PUMP,L.SILV 8 14030-050-75 1 CAFING SILVER
COVER,OIL PUMP,BUFF 8 14030-050-80 MC1MA BUFF FINISH
SCREW PAN HEAD 6X75 9 220B0675
FILLER,OIL 10 16115-018
COVER-CLUTCH,SILVER 11 14032-1025 1 CAFING SILVER
COVER,R.H,ENG,BARREL 11 14032-1017 MC1MA BUFF FINISH
GASKET,CARBURETOR COV 12 11060-1201
GASKET,CLUTCH COVER 13 11060-1198
SCREW PAN HEAD 6X45 14 220B0645
SCREW PAN HEAD 6X30 15 220B0630
BOLT,HEX HEAD,6X14 16 92001-121
WASHER OIL PUMP BANJO 17 92022-077
DRAIN,FUEL 18 16116-006
PLUG OIL DRAIN 19 92067-001
GASKET CHECK VALVE 20 92065-058
ADJUSTER,CABLE 21 16002-012
COVER,L.H ENG,SILVER 22 14031-078-75 1 CAFING SILVER
COVER,L.H ENG.BUFF 22 14031-078-80 MC1MA BUFF FINISH
OIL SEAL SB12205 23 92049-004
GASKET,GENERATOR COVE 24 11060-1202
