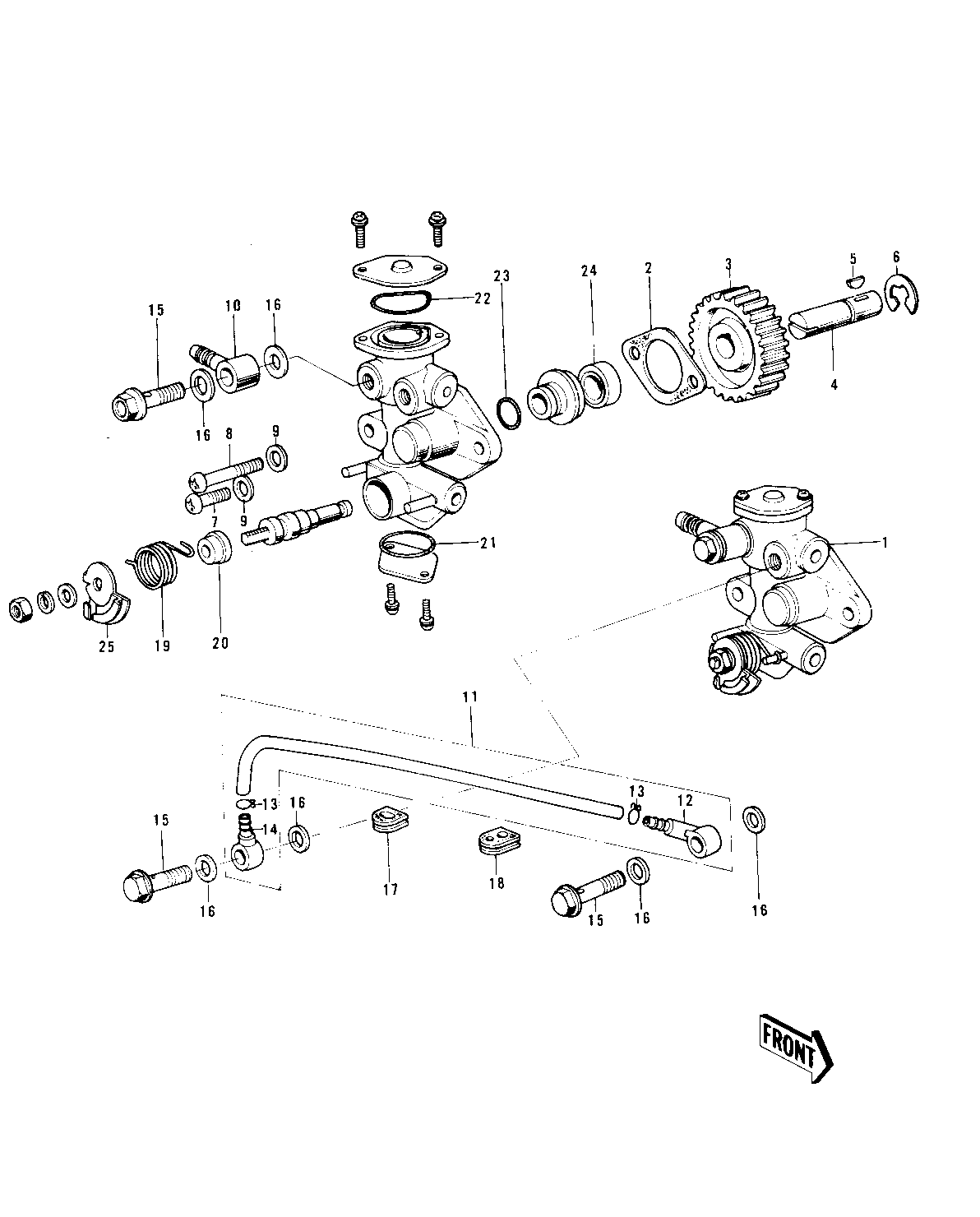

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP ASSY, OIL 1 16082-067
GASKET,OIL PUMP 2 11060-1160
GEAR OIL PUMP 3 16085-004
SHAFT OIL PUMP 4 16086-001
WOODRUFF KEY 5 510A3100
CIRCLIP 9MM 6 482K9000
SCREW-PAN-CROS 7 220B0514
SCREW PAN CROSS,5X28 8 220B0528
WASHER OIL PUMP 9 92022-037
CONNECTOR BANJO 10 92061-009
PIPE,OIL 11 16134-021
VALVE,CHECK 12 16128-009
CLAMP,OIL PIPE 13 92036-022
CONNECTOR,OIL PIPE 14 92061-018
BOLT-BANJO,6MM 15 92060-013
WASHER OIL PUMP BANJO 16 92022-077
GROMMET WIRING HARN 17 21017-002
GROMMET,OIL PIPE 18 92071-067
SPRING,OIL PUMP LEVER 19 16093-006
SEAL-OIL,CAMSHAFT,"X" 20 92049-1294
"0" RING,LOWER CAP 21 16090-003
"0" RING,UPPER CAP 22 16088-002
"0" RING,OIL PUMP SHT 23 16090-002
OIL SEAL OIL PUMP SHT 24 16091-001
LEVER,OIL PUMP CABLE 25 16096-012
