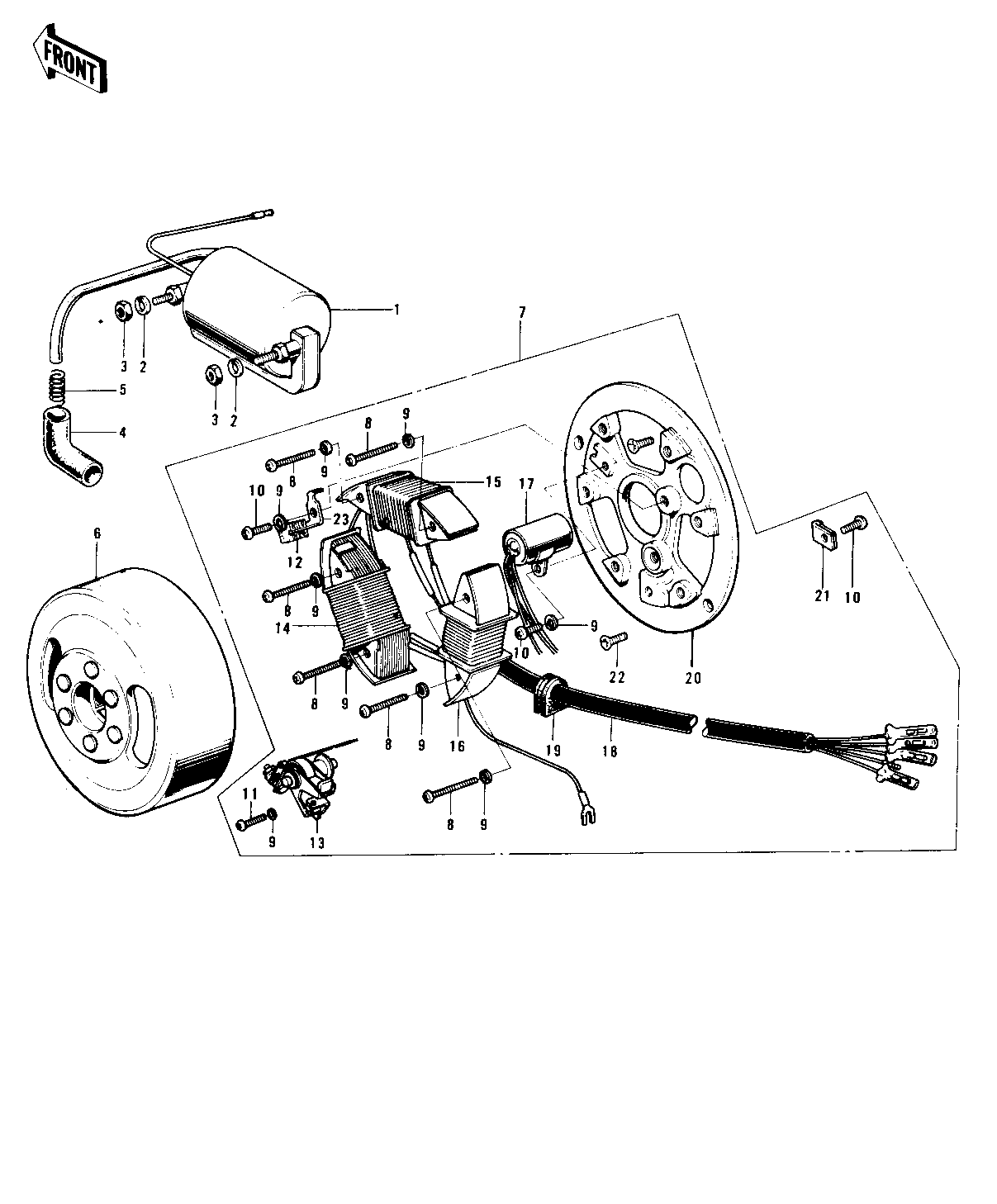

1974 MC1M - IGNITION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL,IGNITION 1 21121-1047
WASHER SPRING 6MM 2 461F0600
NUT 6MM 3 311B0600
CAP SPARK PLUG 4 21130-009
SPRING-SPARK PLUG CAP 5 92101-001
MAGNETO ASSY 6 21002-1055
FLYWHEEL 6 21050-017 MC1MA
MAGNETO ASSY 7 21002-1055
STATOR ASSY 7 21003-027 MC1MA
SCREW PAN HEAD 4X30 8 220E0430
WASHER SPRING 4MM 9 461F0400
SCREW PAN HEAD 4X6 10 220B0406
SCREW-PAN-CRSOSS,4X12 11 220B0412
FELT OIL 12 21019-005
BREAKER ASSY CONTACT 13 21008-006
COIL PRIMARY 14 21049-006
COIL A,LIGHTING 14 21047-022 MC1MA
COIL LIGHTING A 15 21047-010
COIL,EXCITING 15 21049-1004 MC1MA
COIL LIGHTING B 16 21047-011
COIL A LIGHTING 16 21047-019 MC1MA
CONDENSER 17 21013-006
WIRING HARNESS,MAGNTO 18 21029-025
WIRING HARNESS,MAGNT 18 21029-031 MC1MA
GROMMET WIRING HARN 19 21017-002
PLATE-COIL,MAGNETO 20 21048-1002
PLATE-COIL,MAGNETO 20 21048-1002 MC1MA
CLAMP WIRING HARNESS 21 21037-002
SCREW CNTSNK HD 6X14 22 221B0614
HOLDER,OIL FELT 23 21038-002
