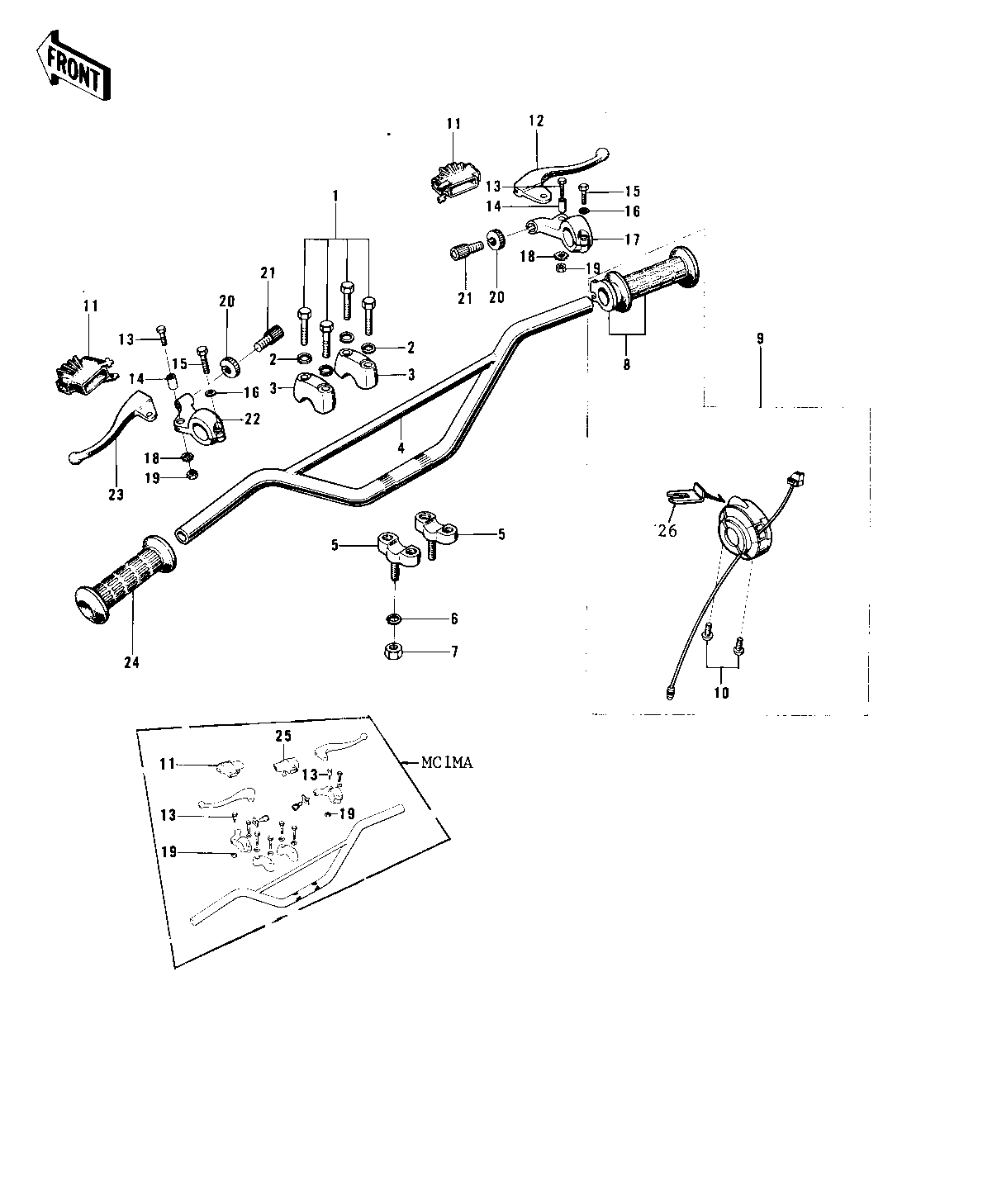

1974 MC1M - HANDLEBAR ('74-'75 MC1M/MC1M-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 8X38 1 92001-1405
WASHER SPRING 8MM 2 461F0800
HOLDER UPPER HANDLBAR 3 46012-004
HANDLEBAR 4 46004-024
HOLDER,HANDLEBAR,BUFF 5 46012-002-80
WASHER SPRING 10MM 6 461F1000
NUT,10MM 7 314B1000
GRIP ASSY-THROTTLE 8 46019-020
CASE ASSY,R.H 9 46018-036
SCREW-PAN-CROS,5X25 10 220B0525
DUST COVER 11 46071-002
BOOTS,LEVER HOLDER 11 49006-1017 MC1MA
LEVER FRONT BRAKE 12 46058-004
BOLT HEX HEAD 5X20 13 92007-020
BOLT,HEX HEAD,5X22 13 92007-046 MC1MA
COLLAR LEVER 14 46059-011 N/R 92007-046
BOLT, HEX HEAD 6X22 15 110N0622
WASHER PLAIN 6MM 16 410B0600
HOLDER-FR BRAKE LEVER 17 46060-006
WASHER LOCK 5MM 18 464H0500 N/R 92007-046
NUT 5MM 19 312B0500
NUT-LOCK,5MM 19 92019-014 MC1MA
NUT-LOCK 20 46056-005
SCREW CABLE ADJUST 21 46055-003
HOLDER,CLUTCH LEVER 22 46094-010
LEVER-CLUTCH 23 46092-015
RUBBER-L.H.GRIP 24 46075-018
RUBBER-L.H GRIP 24 46075-019 MC1MA
BOOTS,LEVER HOLDER 25 49006-1017 MC1MA
HOLDER,CONTROL CABLE 26 46037-023
