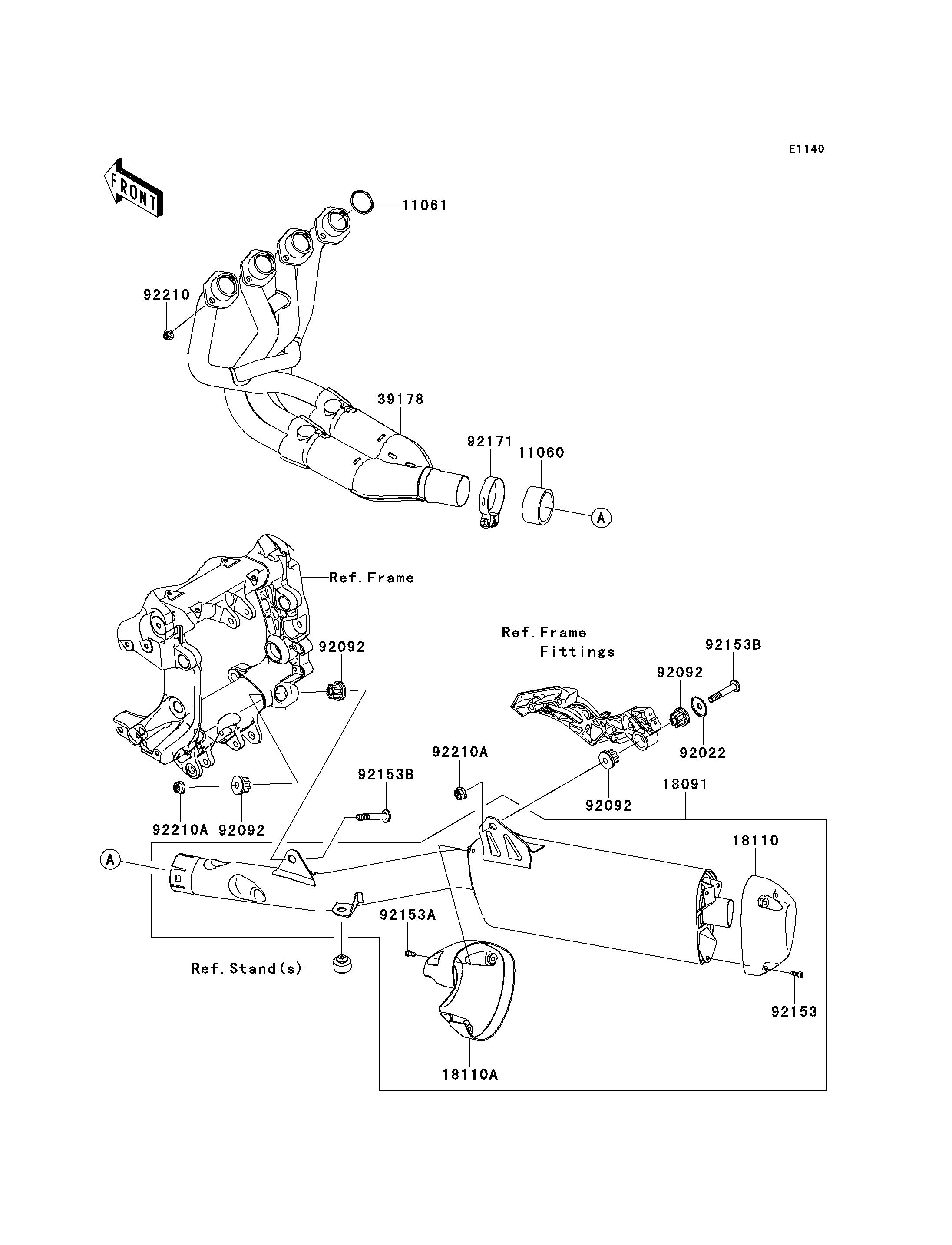

Parts Diagrams |
11060
11061
18091
18110
18110A
39178
92022
92092
92092
92092
92092
92153
92153A
92153B
92153B
92171
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MUFFLER CONNECTING | 11060 | 11060-1376 | 1 | ||
GASKET,EX PIPE | 11061 | 11061-0027 | 4 | ||
BODY-COMP-MUFFLER | 18091 | 18091-0469 | 1 | ||
BODY END-MUFFLER,RR | 18110 | 18110-0062 | 1 | ||
BODY END-MUFFLER,FR | 18110A | 18110-0063 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-0083 | 1 | ||
WASHER | 92022 | 92022-289 | 1 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1087 | 4 | ||
BOLT,SOCKET,6X20 | 92153 | 92153-1759 | 3 | ||
BOLT,SOCKET,6X16 | 92153A | 92153-1760 | 3 | ||
BOLT,SOCKET,10X58 | 92153B | 92153-1930 | 2 | ||
CLAMP,64.5MM | 92171 | 92171-0683 | 1 | ||
NUT,8MM | 92210 | 92210-0121 | 8 | ||
NUT,10X1.25 | 92210A | 92210-0316 | 2 |
GASKET,MUFFLER CONNECTING | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,EX PIPE | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY END-MUFFLER,RR | |
REF # | 18110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY END-MUFFLER,FR | |
REF # | 18110A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST | |
REF # | 39178 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER,MUFFLER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X20 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X16 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,10X58 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,64.5MM | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,10X1.25 | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
