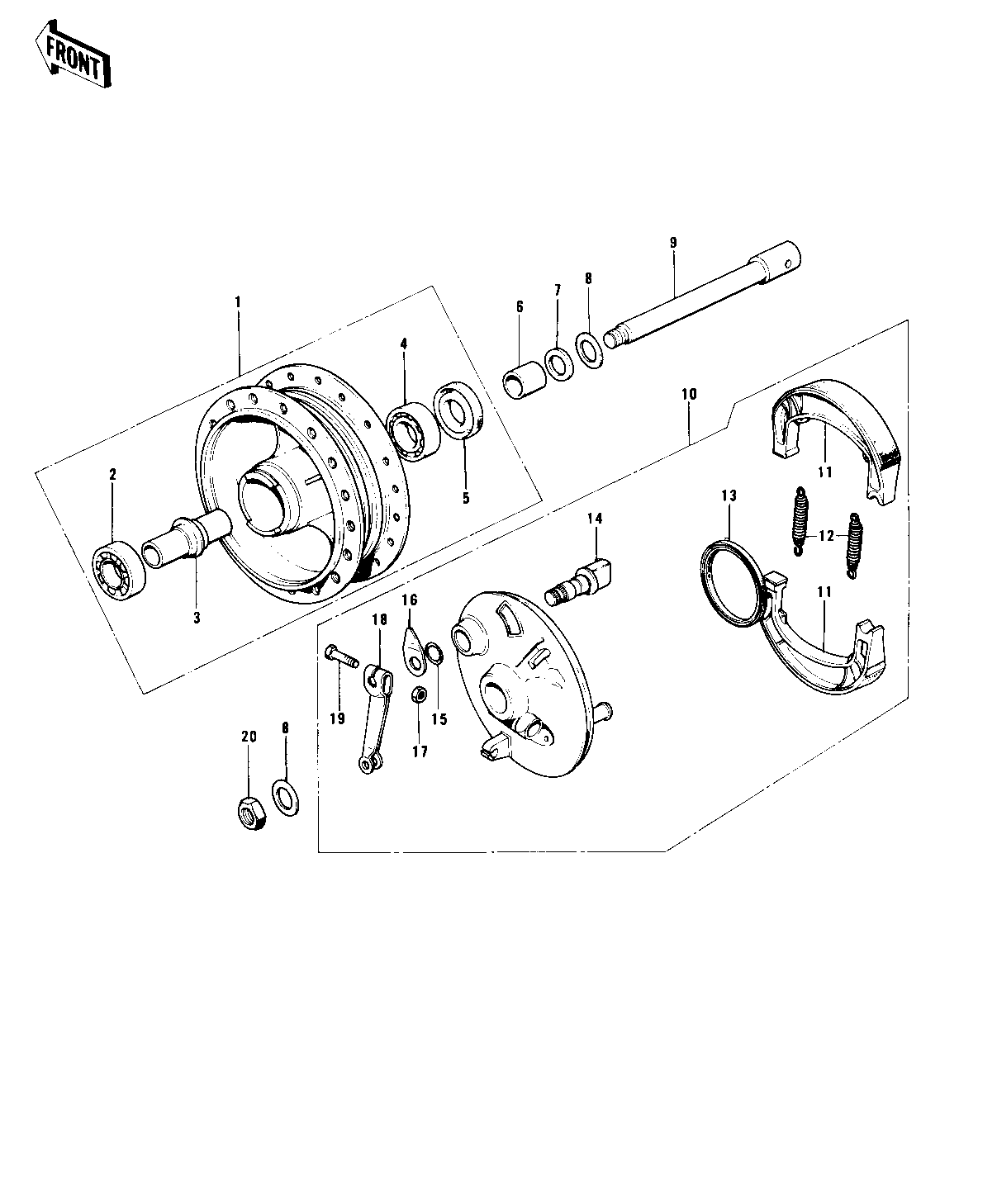

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 1 41034-1040 BUFF FINISH
BEARING BALL #6300Z 2 601B6300Z
SPACER FRONT HUB 3 41039-002
BEARING BALL #6200 4 601B6200
OIL SEAL,TC17317 5 92050-063
COLLAR,FRONT AXLE 6 41069-026
DUST SHIELD FRNT DRUM 7 41042-002
WASHER PLAIN 10MM 8 411B1000
AXLE-FRONT 9 41068-039
PANEL ASY,FR BK,BUFF 10 41035-060-80 BUFF FINISH
SHOE-BRAKE 11 41048-1085
SPRING,BRAKE SHOE 12 92081-1766
OIL SEAL BRAKE PANEL 13 92050-002
CAM SHAFT-FRONT BRAKE 14 41050-018
"0" RING,11MM 15 92055-004
INDICATOR,BK SHOE 16 41085-008
NUT,6MM 17 41072-007
LEVER FRONT BRAKE CAM 18 41053-005
BOLT-UPSET 19 112G0630
NUT 10MM 20 42045-005
