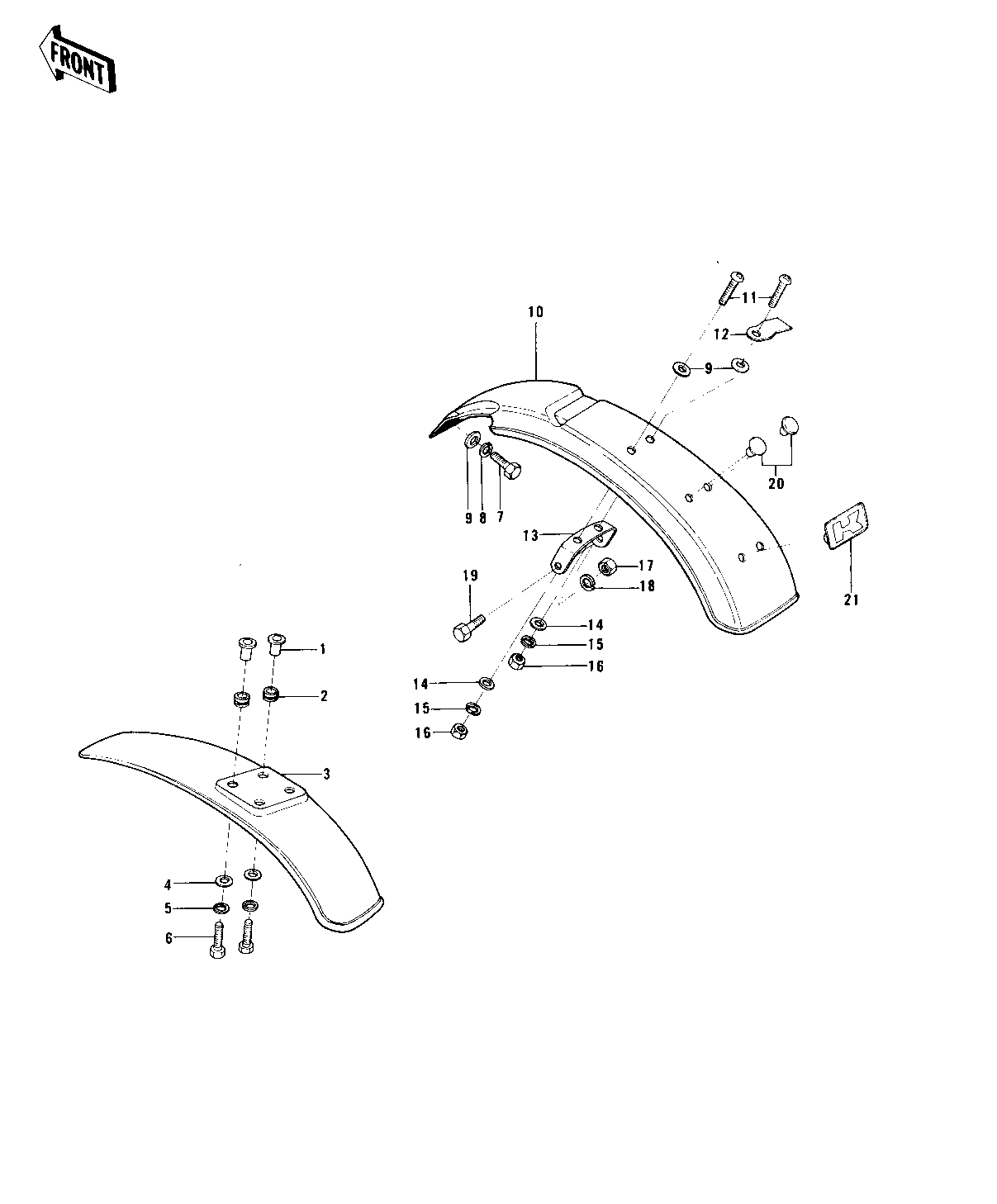

1974 MC1M - FENDERS ('74-'75 MC1M/MC1M-A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COLLAR | 1 | 92027-153 | |||
DAMPER RUBBER | 2 | 92075-103 | |||
FENDER-FR,BLACK | 3 | 35004-080-10 | BLACK | ||
WASHER 6.5X20X1.6T | 4 | 92022-125 | |||
WASHER SPRING 6MM | 5 | 461F0600 | |||
BOLT-UPSET | 6 | 112G0618 | |||
BOLT-UPSET 6X14 | 7 | 112B0614 | |||
WASHER SPRING 6MM | 8 | 461F0600 | |||
WASHER 6.5X20X1.6T | 9 | 92022-125 | |||
FENDER,REAR,BLACK | 10 | 35022-094-10 | BLACK | ||
SCREW PAN HEAD 6X16 | 11 | 220B0616 | |||
CLAMP CABLE | 12 | 92037-020 | |||
BRACKET,REAR FENDER | 13 | 35025-025 | |||
WASHER PLAIN 6MM | 14 | 411B0600 | |||
WASHER SPRING 6MM | 15 | 461F0600 | |||
NUT 6MM | 16 | 311B0600 | |||
NUT-HEX-FINE,12MM | 17 | 315B1200 | |||
WASHER SPRING 12MM | 18 | 461F1200 | |||
BOLT,HEX HEAD,12X26 | 19 | 113B1226A | |||
PLUG,RR FENDR RUBBER | 20 | 92074-034 | |||
PLUG,RR FENDR RUBBER | 21 | 92074-033 |
