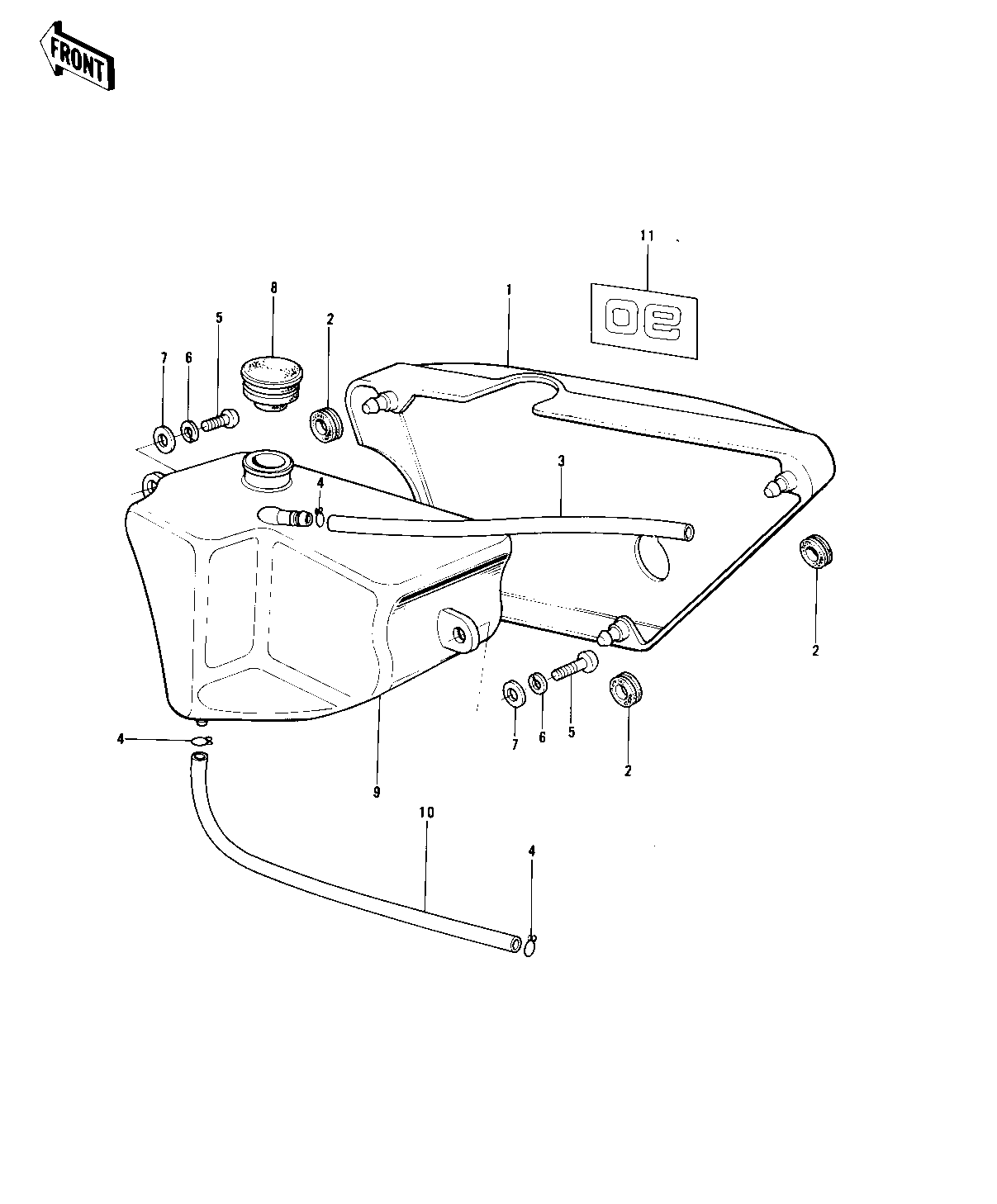

1974 MC1M - SIDE COVER/OIL TANK ('74-'75 MC1M/MC1M-A

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER, SIDE,BLACK 1 36001-1042-6Z
GROMMET 2 92071-056
TUBE-VINYL 5X470 3 700Q05470
CLAMP FUEL PIPE 4 92037-010
SCREW PAN HEAD 6X16 5 220B0616
WASHER SPRING 6MM 6 461F0600
WASHER 6.5X20X1.6T 7 92022-125
CAP,OIL TANK 8 52003-024
TANK,OIL 9 52001-1005
TUBE,4.5X9X380 10 92059-1691 L=170M/M
EMBLEM,SIDE COTER 11 56018-157
EMBLEM,SIDE COVER 11 56018-181 MC1MA
