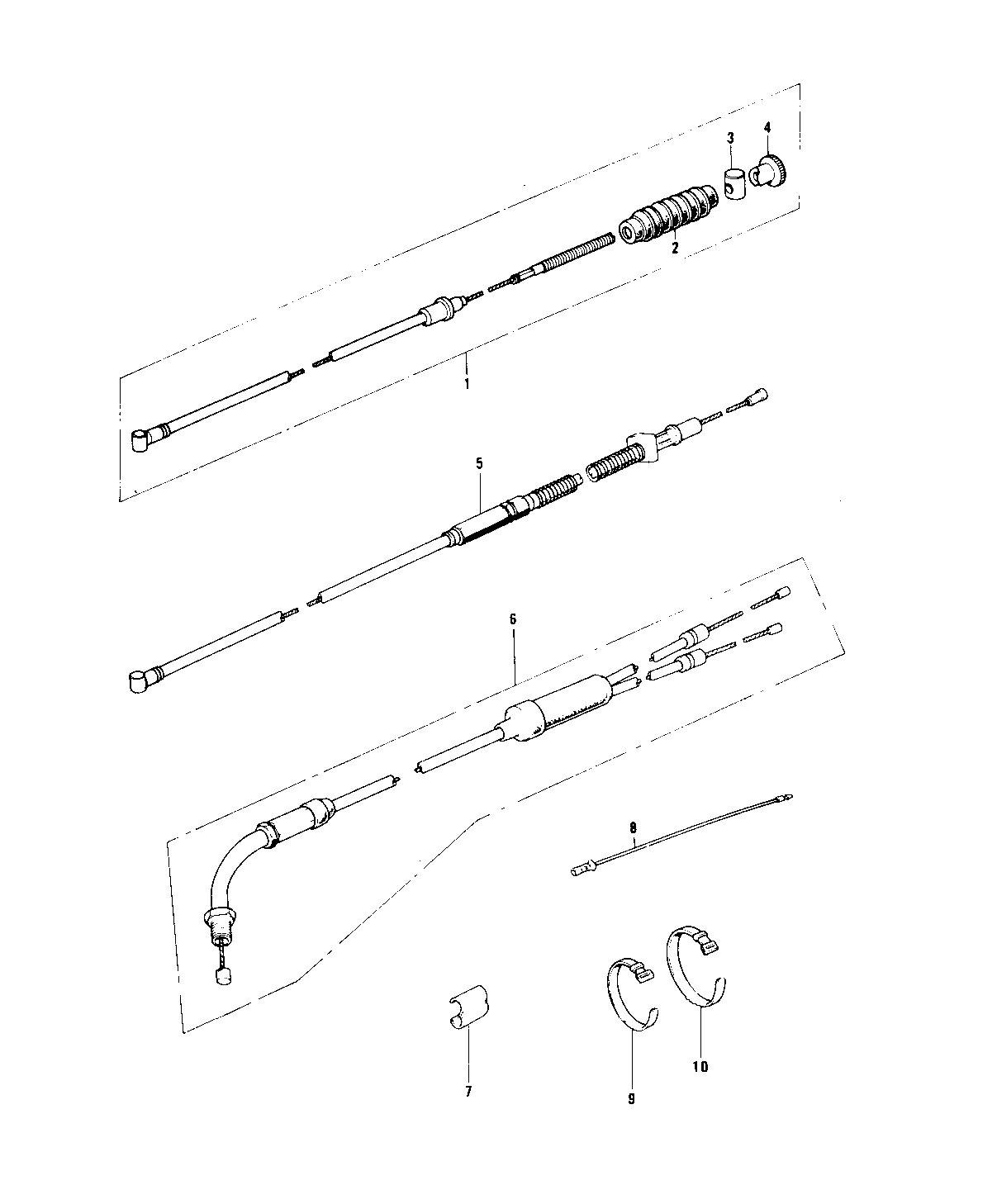

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,FRONT BRAKE 1 54005-074
DUST COVER-BRKE CABLE 2 54009-008
JOINT-BRAKE ROD 3 92043-082
NUT-BRAKE ROD ADJUST 4 92015-052
CABLE,CLUTCH 5 54011-055
CABLE, CLUTCH 5 54011-073 MC1MA
CABLE,CONTROL 6 54012-109
CLAMP-CABLE 7 92037-069
WIRING HARNESS,EXTNSN 8 26011-006
BAND,SHORT 9 92072-030
BAND,WIRING HARNESS 10 92072-056
