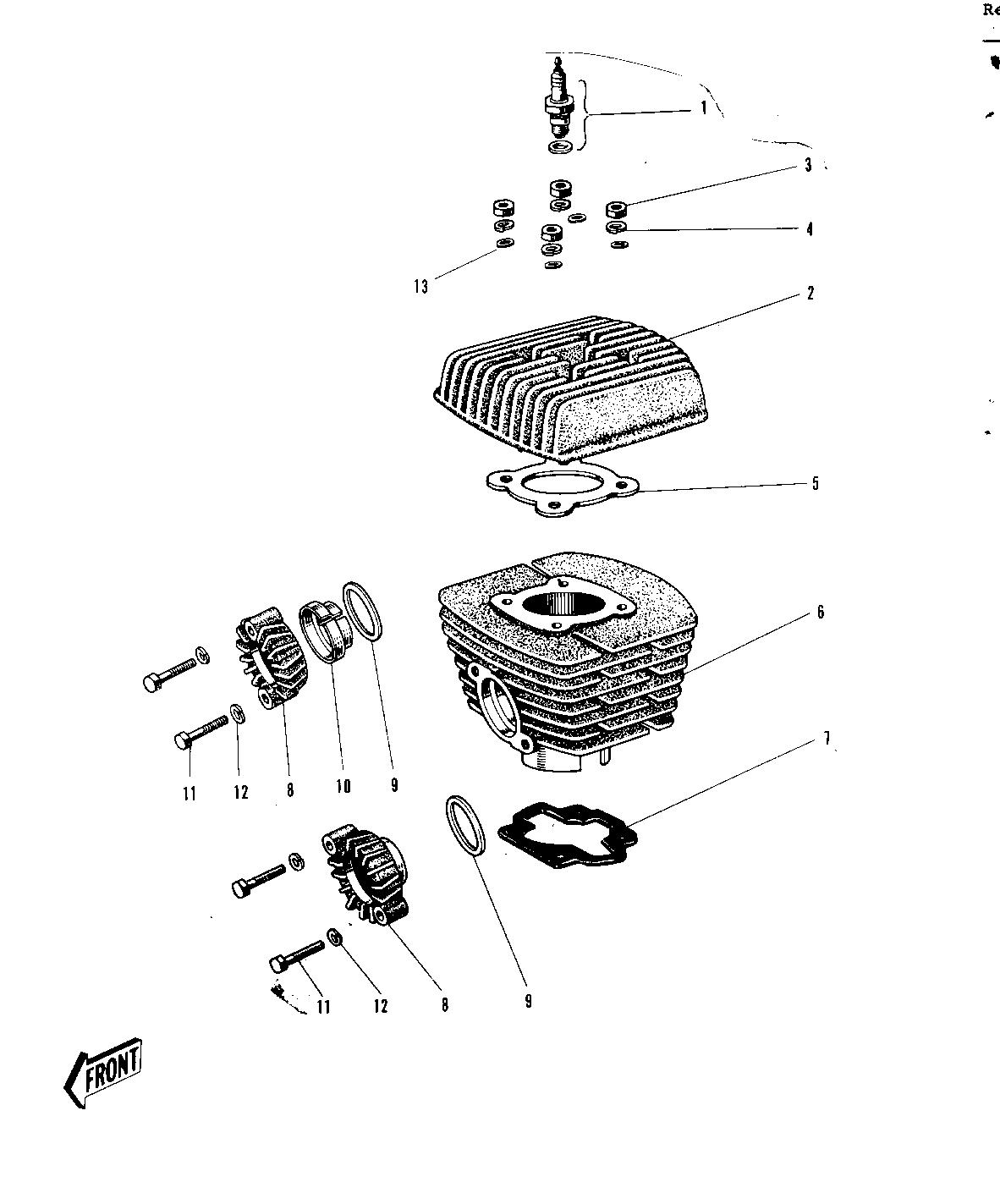

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUGS B8HC 1 92070-010 1 NGK-B8HC
CYLINDER HEAD 2 11001-015 1
NUT,8MM 3 311B0800 4
WASHER SPRING 8MM 4 461F0800 4
GASKET CYLINDER HEAD 5 11004-015 1
CYLINDER 6 11005-025 1
GASKET CYLINDER BASE 7 11009-009 1
CLAMP EXHAUST PIPE 8 18069-004
GASKET,EXHAUST PIPE 9 11009-1992 1
BOLT-UPSET 11 112G0630
WASHER SPRING 6MM 12 461F0600 2
WASHER PLAIN 8MM 13 410B0800 4
